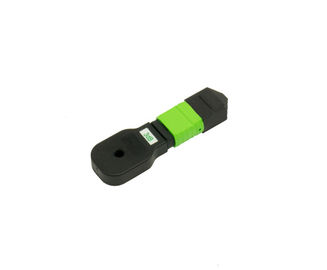

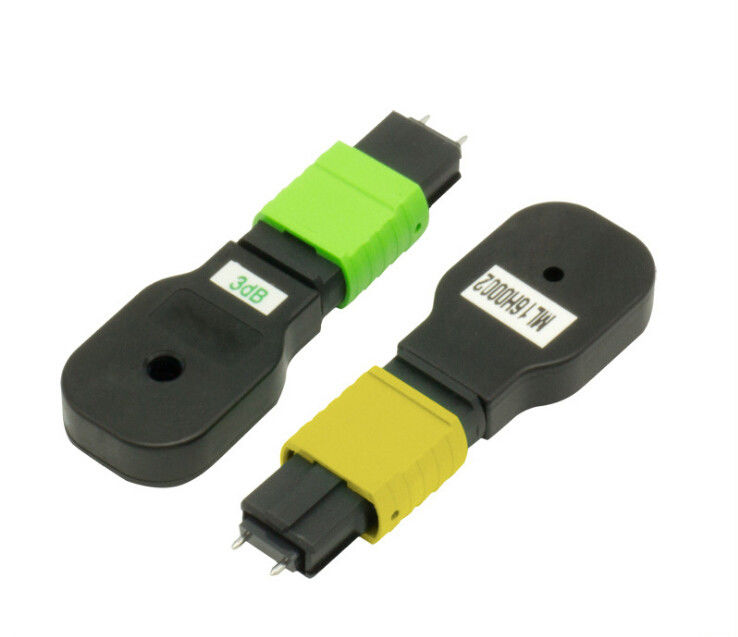

MPO / MTP Fiber Optic Attenuator For Fiber Optical Cable / Patch Cord

MPO / MTP Fiber Optic Attenuator For Fiber Optical Cable / Patch Cord

    • MPO / MTP Fiber Optic Attenuator For Fiber Optical Cable / Patch Cord
    • MPO / MTP Fiber Optic Attenuator For Fiber Optical Cable / Patch Cord
  • MPO / MTP Fiber Optic Attenuator For Fiber Optical Cable / Patch Cord

    Product Details:

    Place of Origin: Shenzhen China
    Brand Name: New Light
    Certification: CE / ISO / RoHS
    Model Number: FC / ST / LC / SC / MPO

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pcs
    Price: can be negotiated
    Packaging Details: standard export package
    Delivery Time: 2-10 working days
    Payment Terms: L/C, T/T, Western Union, MoneyGram, paypal
    Supply Ability: 100,000 pcs per month
    Contact Now
    Detailed Product Description
    Material: Plastic / Metal Connector Type: SC / LC / ST / FC / MPO
    Mode Type: Single / Multi Mode Repeatability: >1000 Times
    Attenuation: 1-30 DB Return Loss: PC ≥ 45dB UPC ≥55dB APC ≥65dB
    Delivery Time: 2-10 Working Days After Receive Payment Packing: Standard Export Package
    Payment Term: T/T , L/C , PAYPAL , WESTEN UNION , MONEY GRAM Certificate: CE , ISO , RoHS







    Product Description





    MPO / MTP fiber optical Attenuator for fiber optical cable / patch cord









    A fiber optic attenuator, also known as an optical attenuator, is a passive component that is used to reduce the power level of an optical signal by a predetermined factor in fiber optic transmission system. The intensity of the signal is described in decibels (dB) over a specific distance the signal travels. Fiber optic attenuators are generally used in single-mode long-haul application.







    Technical parameters:





    Item

    Specification



    PC UPC

    APC



    Operating Wavelength (nm):

    1310/1550



    Return Loss (dB): ≥50 ≥55

    ≥60



    Attenuator Value:

    According to custom request make 1—30dB



    Maximum Optical Input Power:

    200mW



    Bellcore Compliant:

    Wavelength Independent (DWDM)



    Operating Temperature:

    -40--+85°C



    Attenuation Accuracy: +/-0.5 (1-10)
    +/-1.0 (11-30)
    Durability (well over 100mw):

    Simple and Reliable Structure



    Storage Temperature:

    -40--+85°C









    Key Features:





    1.Low back reflection and Low PDL

    2.High precision attenuation value
    3.Precision control of attenuation range
    4.Wide attenuation range
    5.Precision ceramic ferrule
    6.FC, SC, ST, LC … optional
    7.Plastic or metal housing material





    Application :



    1.Testing equipment

    2.Fiber Optical CATV
    3.Fiber Optical Sensor
    4.Fiber Optical Telecommunication System
    5.Precision ceramic ferrule
    6.FC, SC, ST, LC … optional
    7.Plastic or metal housing material







    MPO / MTP Fiber Optic Attenuator For Fiber Optical Cable / Patch Cord









    More picture



    MPO / MTP Fiber Optic Attenuator For Fiber Optical Cable / Patch Cord







    Your may like



    MPO / MTP Fiber Optic Attenuator For Fiber Optical Cable / Patch Cord





    MPO / MTP Fiber Optic Attenuator For Fiber Optical Cable / Patch Cord







                                                         Company introduction



    New Light Optics Technology Limited specialized in the Optical communication products R & D, manufacture,sales and service as high-tech company.Our factory was established in 2011 and with 6 years OEM and manufacture experience for customer all over the world.



    Our product line include: Patch Cord/Pigtails,Patch Cord Cables,MTP/MPO Patch Cord,Fiber Optical adapter, attenuator, Fiber optical connector... Etc.



    Our products widely used in Telecommunication,Fiber optical CATV, digital internet fiber transmit,data base station,etc.



    Company have high tech technology, professional R & D team, advanced production equipment,sophisticate skill engineers. And high quality control system,our products offer to customers to USA,European,Brazil,Middle East,and Asia more than 60 countries and areas.



    Products received  high reputation and feedback from all customers!



    Please contact us if any we can support and cooperate together!







    Production



    MPO / MTP Fiber Optic Attenuator For Fiber Optical Cable / Patch Cord







    Test





    MPO / MTP Fiber Optic Attenuator For Fiber Optical Cable / Patch Cord





    Quality control



    MPO / MTP Fiber Optic Attenuator For Fiber Optical Cable / Patch Cord





    Packing



    MPO / MTP Fiber Optic Attenuator For Fiber Optical Cable / Patch Cord







    Delivery and payment





    MPO / MTP Fiber Optic Attenuator For Fiber Optical Cable / Patch Cord







    Ordering Information:



    LC/UPC-SM-5dB-Female&Male

    Step 1: Connector type: FC, SC, LC, ST, MU

    Step 2: Ferrule End-face: PC, UPC, APC

    Step 3: Type: Single-mode, Multimode

    Step 4: Attenuation: 1-10dB(1dB step), 15, 20, 25, 30dB

    Step 5: Mode: Fixed, Female&Male, In-line, Variable

    Step 6: Wavelength: 1310nm, 1550nm, 850nm, 1300nm



    Packing:

    One piece per PE bag with stick label (we could add customer's logo in the label.)
