12 Core MPO MTP Fiber Optic Attenuator with 1-30 dB Attenuation for Single Mode Applications

Brand Name:	New Light
Model Number:	MPO
MOQ:	10
Price:	1~30
Packaging Details:	standard export package
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE / ISO / RoHS

Material:

Plasticl

Connector Type:

MPO

Mode Type:

Single Mode

Repeatability:

>1000 Times

Attenuation:

1-30 DB

Return Loss:

PC ≥ 45dB UPC ≥55dB APC ≥65dB

Certificate:

CE , ISO , RoHS

Operate Temperature:

-40-+80

Fiber Count:

12 Core

Supply Ability:

100,000 pcs per month

Highlight:

single mode fiber attenuator

fixed optical attenuator

Product Description

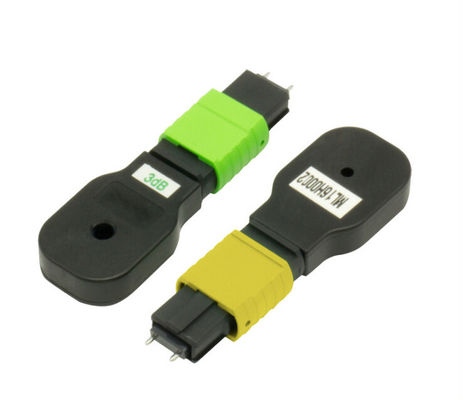

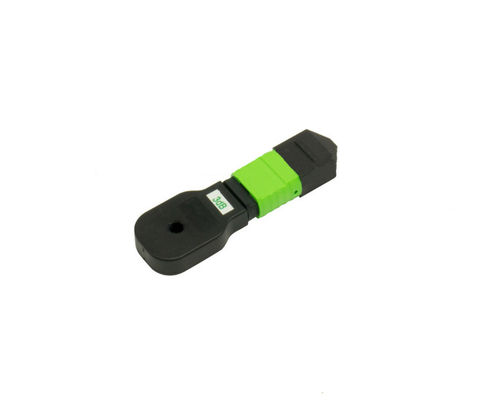

12 Core MPO/MTP Fiber Optic Loopback Attenuator

A fiber optic attenuator, also known as an optical attenuator, is a passive component used to reduce the power level of an optical signal by a predetermined factor in fiber optic transmission systems. Signal intensity is measured in decibels (dB) over the distance the signal travels. These attenuators are primarily used in single-mode long-haul applications.

This MPO loopback attenuator is designed for 40G/100G optical network link testing. It complies with TIA/EIA-604-5 and IEC61754-7 standards, meets RoHS requirements, and satisfies network component fire test specifications.

Technical Specifications

Parameter	Specification
Operating Wavelength	1310/1550 nm
Core Count	12 core
Mode Type	Single mode
Return Loss	PC: ≥50dB, UPC: ≥55dB, APC: ≥60dB
Attenuator Value	Customizable 1-30dB
Maximum Optical Input Power	200mW
Bellcore Compliance	Wavelength Independent (DWDM)
Operating Temperature	-40°C to +85°C
Attenuation Accuracy	±0.5dB (1-10dB), ±1.0dB (11-30dB)
Storage Temperature	-40°C to +85°C

Key Features

Low back reflection and low PDL
High precision attenuation value
Precision control of attenuation range
Wide attenuation range
Precision ceramic ferrule
Multiple connector options: FC, SC, ST, LC
Plastic or metal housing material

Applications

Testing equipment
Fiber Optical CATV
Fiber Optical Sensor
Fiber Optical Telecommunication System

Performance Specifications

Parameter	Specification
Attenuation Value	0dB to 30dB
Operating Wavelength	SM: 1260nm-1620nm, MM: 850/1300nm (custom order)
Return Loss	UPC ≥50dB, APC ≥60dB
Polarization Loss	≤0.2dB
Attenuation Tolerance	0dB-9dB: ±0.5dB, 10-30dB: ±10% of attenuation value
Maximum Power Capability	250mW
Operating Temperature	-40°C to +85°C
Storage Temperature	-40°C to +85°C

Ordering Information

Example: LC/UPC-SM-5dB-Female&Male

Step 1: Connector type: FC, SC, LC, ST, MU
Step 2: Ferrule End-face: PC, UPC, APC
Step 3: Type: Single-mode, Multimode
Step 4: Attenuation: 1-10dB (1dB step), 15, 20, 25, 30dB
Step 5: Mode: Fixed, Female&Male, In-line, Variable
Step 6: Wavelength: 1310nm, 1550nm, 850nm, 1300nm

Packing: One piece per PE bag with stick label (custom logo available upon request)

Contact: WHATSAPP 008613534063703
