Product Details:
|
| Product Name: | 1064nm Optical Fiber Circulator Optical Fiber Parts Single Mode With FC APC Connector | Connector Type: | FC APC |
|---|---|---|---|
| Mode Type: | Single Mode | Operating Wavelength: | 1064nm |
| PDL: | ≤0.2dB | Return Loss: | ≥ 50dB |
| Cross Talk: | ≥ 45dB | ||
| High Light: | single mode fiber splitter,fiber optic cable splitter |
||
Optical Fiber Circulator Product Name

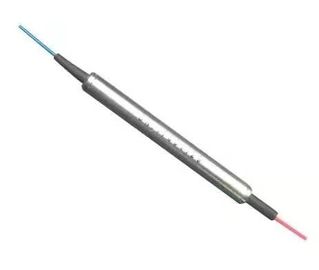

1064nm Optical Fiber Circulator Optical Fiber Parts Single Mode With FC APC Connector
Optical Fiber Circulator Description
Circulators can be used to send optical signals through a single fiber in two directions.
An optical circulator is analogous to an electronic circulator and both perform similar functions.
An optical circulator is a three-port device that allows light to travel in only one direction.
A signal entering Port 1 will exit Port 2 with minimal loss, while a signal entering Port 2 will exit Port 3 with minimal loss. Light entering port 2 experiences a large amount of loss at port 1, and light entering port 3 experiences a large amount of loss at ports 2 and 1.
Optical circulators are non-reciprocal devices. This means that any changes in the properties of the light caused by passing through the device are not reversed by traveling in the opposite direction.
Optical Fiber Circulator Features
High isolation & High Return Loss
Low insertion loss & PDL
Optical Path Epoxy Free
Optical Fiber Circulator Applications
Optical Fiber Circulator Specifications
| Item | Unit | Parameters | |||
| Operating wavelength | nm | 1064 | |||
| Bandwidth | nm | ±5 | ±10 | ±20 | ±30 |
| Isolation | dB | ≥25 | ≥23 | ≥20 | ≥20 |
| Insertion Loss@Band,23℃ | dB | ≤2.1 | ≤2.6 | ≤3.2 | ≤3.8 |
| PDL | dB | ≤0.2 | |||
| Return Loss | dB | ≥ 50 | |||
| Cross Talk | dB | ≥ 45 | |||
| PDL | dB | ≤ 0.1 | |||
| Maximum Optical Power | mW | ≤ 300 | |||
| Fiber Type | / | Hi1060 | |||
| Operation Temperature | 0C | 0~50 | |||
| Storage Temperature | 0C | -40~85 | |||
| Package Dimension | mm | 34x8.4x8.4(P1) | |||
Note:
2. Specifications are subject to change without notice.
Optical Fiber Circulator Dimension(mm)
Optical Fiber CirculatorOrdering Information(Example:CIR-12210)
| CIR- | □ | □ | □ | □ | □ |
| Wavelength | Bandwidth | Fiber Type | Fiber Length | Connector Type | |
1.1064nm | 1.±5nm | 1.250μm fiber | 1.0.5 +/- 0.1 m | 0.No Connector |
