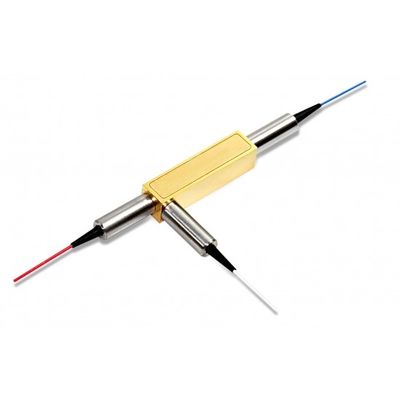

1064nm Single Mode Optical Fiber Circulator with FC APC Connector for High Isolation and Low Loss
  • name
  • name

1064nm Single Mode Optical Fiber Circulator with FC APC Connector for High Isolation and Low Loss

Brand Name: New Light
Model Number: FC APC
MOQ: 10
Price: 1~30
Packaging Details: export packing
Payment Terms: T/T,Western Union,MoneyGram,Paypal
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO ,ROSH
Product Name:
1064nm Optical Fiber Circulator Optical Fiber Parts Single Mode With FC APC Connector
Connector Type:
FC APC
Mode Type:
Single Mode
Operating Wavelength:
1064nm
PDL:
≤0.2dB
Return Loss:
≥ 50dB
Cross Talk:
≥ 45dB
Supply Ability:
1000000
Highlight:

single mode fiber splitter

,

fiber optic cable splitter

Product Description
1064nm Optical Fiber Circulator
Single Mode Optical Fiber Parts with FC APC Connector
Product Overview
Optical fiber circulators are three-port devices that enable bidirectional optical signal transmission through a single fiber. These non-reciprocal components direct light sequentially from port to port with minimal loss, making them essential for advanced optical networking applications.
How Optical Circulators Work
Signals entering Port 1 exit through Port 2 with minimal loss, while signals entering Port 2 exit through Port 3. The device prevents signal interference by providing high isolation between ports, ensuring optimal performance in bidirectional systems.
Key Features
  • High isolation and return loss
  • Low insertion loss and PDL
  • Optical path epoxy free design
Applications
  • Add-Drop Multiplexing
  • Fiber Sensors
  • Bidirectional Pumping
  • Bidirectional Signal Transmission Systems
  • Coupling In-Line Chromatic Dispersion Compensation Devices
Technical Specifications
Item Unit Parameters
Operating wavelength nm 1064
Bandwidth nm ±5 | ±10 | ±20 | ±30
Isolation dB ≥25 | ≥23 | ≥20 | ≥20
Insertion Loss@Band,23℃ dB ≤2.1 | ≤2.6 | ≤3.2 | ≤3.8
PDL dB ≤0.2
Return Loss dB ≥50
Cross Talk dB ≥45
PDL dB ≤0.1
Maximum Optical Power mW ≤300
Fiber Type / Hi1060
Operation Temperature °C 0~50
Storage Temperature °C -40~85
Package Dimension mm 34x8.4x8.4(P1)
All specifications are based on devices without connectors and guaranteed over wavelength, polarization and temperature.
Specifications are subject to change without notice.
Product Dimensions
1064nm Single Mode Optical Fiber Circulator with FC APC Connector for High Isolation and Low Loss 0
Ordering Information
Example: CIR-12210
CIR- Wavelength Bandwidth Fiber Type Fiber Length Connector Type
1. 1064nm
2. Others		 1. ±5nm
2. ±10nm
3. ±20nm
4. ±30nm		 1. 250μm fiber
2. 900μm fiber
3. Others		 1. 0.5 +/- 0.1 m
2. 1.0 +/- 0.1 m
3. Others		 0. No Connector
1. FC/UPC
2. FC/APC
3. SC/UPC
4. SC/APC
5. LC/PC
6. MU/PC
7. Others
1064nm Single Mode Optical Fiber Circulator with FC APC Connector for High Isolation and Low Loss 1 1064nm Single Mode Optical Fiber Circulator with FC APC Connector for High Isolation and Low Loss 2
Tags:

single mode fiber splitter

fiber optic cable splitter

fiber optic plc splitter
