PEI PC 10dB UPC Fiber Optic Attenuator ST FC LC 0.5 Multimode

PEI PC 10dB UPC Fiber Optic Attenuator ST FC LC 0.5 Multimode

  • PEI PC 10dB UPC Fiber Optic Attenuator ST FC LC 0.5 Multimode
  • PEI PC 10dB UPC Fiber Optic Attenuator ST FC LC 0.5 Multimode
PEI PC 10dB UPC Fiber Optic Attenuator ST FC LC 0.5 Multimode
Product Details:
Place of Origin: China
Brand Name: New Light
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiate
Packaging Details: 10pcs per pack
Delivery Time: 2 weeks
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10000/month
Contact Now
Detailed Product Description
Color: Green / Red Connector: SC ST
Polish: UPC Mode: Single Mode
Attenuator: 8dB Material: Metal
High Light:

10dB UPC Fiber Optic Attenuator

,

PEI PC Fiber Optic Attenuator

,

LC 0.5 Multimode Fiber Attenuator

10dB ST FC UPC Fiber Optic Attenuator Single Mode for telecommunication


NEWLIGHT offers a full range of attenuators by its own injection molding plan and hardware plant, our attenuators passed strong mechanical test and environmental test, provides with stable attenuation from 1 to 25 dB at both 1310 and 1500mm transmission wavelength. Our plug type male to female attanuators have strong body and good design which can provide excellent performance, they are compatible with relavent connectors and adapters.

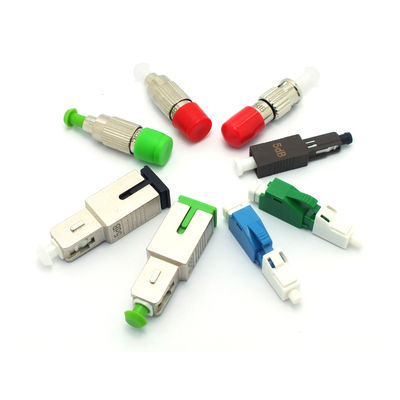

 Fiber Optic Attenuator  Detail:

1.Fixed Attenuator(Fixed Type FC, SC, ST, LC)
2.Female to male type ( FC, SC, ST, LC)
3.In-Line Attenuator(Fused and Fiber Jumpers Type)
4.High Return Loss(In-Line and High RL Type)
5.Exact and Stable Attenuation(Variable Type)




NO Name Description
1 Big aquare dust cap PE/PP ,White
2 LC ferrule LC 0.5 concerntricity , zironia ceramics
3 Ferrule metal boot Copper plated with Nickel
4 LC front shell PEI/PC+PBT , UPC blue , APC green
5 LC back shell PEI/PC+PBT , UPC blue , APC green
6 Spring SUS304 / 201
7 LC ferrule LC 0.5 concentricity ,ziromia ceramics
8 LC adapter dust cap PE/PP, White, shape & size may changed if not specified
9 Attenuator fiber 16mm

PEI PC 10dB UPC Fiber Optic Attenuator ST FC LC 0.5 Multimode 0
Overall performance
Fiber optic Attenuators are used in applications where a pre-determined amount of light loss is specified. We offer LC, FC, SC, ST, MU fixed attenuator with different attenuation level, from 1dB to 30dB.


Attenuation Vale
0dB to 30dB
Operating Wavelength
SM:1260nm~1620nm, MM:850/1300nm (Customer ordered)
Return Loss
UPC≥50dB, APC≥60dB
Polarization Loss
≤0.2dB
Attenuation Tolerance
0dB~9dB:0.5dB, 10~30dB:10% of attenuation value
Maximum Power Capability
250mW
Operating Temperature
-40°C~+85°C
Storage Temperature
-40°C~+85°C






Applications:

Power management in optical networks
Wavelength division multiplexing(WDM) system channel balancing
Erbium Doped Fiber Amplifiers (EDFA)
Optical add-drop multiplexers(OADM)
Receiver protection
Test equipment
compensation of different connector attenuation



PEI PC 10dB UPC Fiber Optic Attenuator ST FC LC 0.5 Multimode 1
PEI PC 10dB UPC Fiber Optic Attenuator ST FC LC 0.5 Multimode 2
FAQ

1. Are you the real factory?
Yes we are the real factory with 16 years history

2. What is your fiber brand?
Fiber brands including YOFC FiberHome

3. What is your main products?
Fiber optic patch panel ,  fiber MPO&MTP cassette ,MPO&MTP cables
Outdoor fiber optic cables indoor fiber optic cables FTTH Drop cables ADSS ,Indoor armored patch cords fiber cable Optical patch cords SC LC FC ST MTP MPO optical patch cords

4. Product quality guarantee period?
20 years Guarantee for fiber optic cable



5. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001 ROHS raw material suppliers

6. What is your delivery time?
Within 48 hours for normal kinds of fiber optic products

7. MOQ: what is your minimum quantity?
MOQ for Fiber Optic Cable Patch Panel 10 set
There is no MOQ required for fiber optic patch cords,as there's stock for normal kinds

8. Do you have distributor in other country or domestic?
Until now we sell our products to customers directly And factory price could be offered

9. Payment
For large orders: T/T
For small orders: T/T  and Paypal are acceptable

10. Shipping & Delivery
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL) by air or by courier services,any of which is optional
