Fiber Optic Attenuator

10dB Single Mode UPC Fiber Optic Attenuator with ST FC Connectors for Telecommunication

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

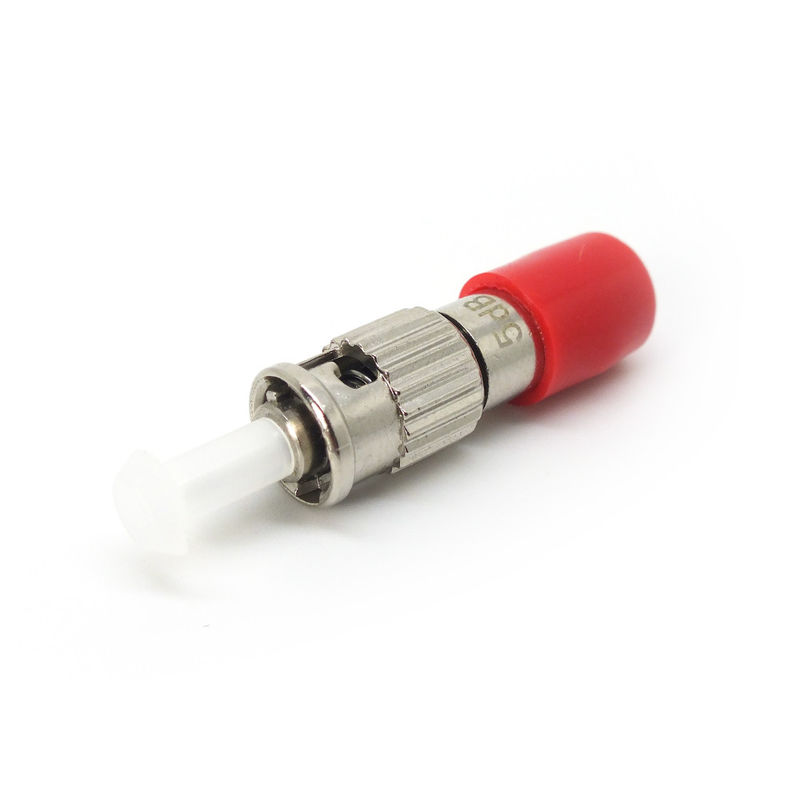

10dB Single Mode UPC Fiber Optic Attenuator with ST FC Connectors for Telecommunication

Brand Name:	New Light
MOQ:	10
Price:	1~30
Packaging Details:	10pcs per pack
Payment Terms:	T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Color:

Green / Red

Connector:

SC ST

Polish:

UPC

Mode:

Single Mode

Attenuator:

8dB

Material:

Metal

Supply Ability:

10000/month

Highlight:

10dB UPC Fiber Optic Attenuator

PEI PC Fiber Optic Attenuator

LC 0.5 Multimode Fiber Attenuator

Product Description

PEI PC 10dB UPC Fiber Optic Attenuator ST FC LC 0.5 Multimode

10dB ST FC UPC Fiber Optic Attenuator Single Mode for telecommunications applications.

NEWLIGHT offers a comprehensive range of attenuators manufactured in our own injection molding and hardware facilities. Our attenuators undergo rigorous mechanical and environmental testing, providing stable attenuation from 1 to 25 dB at both 1310 and 1500nm transmission wavelengths. The plug type male to female attenuators feature robust construction and optimized design for excellent performance, ensuring compatibility with relevant connectors and adapters.

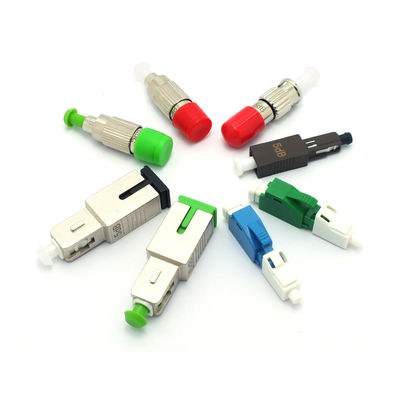

Attenuator Types

Fixed Attenuator (Fixed Type FC, SC, ST, LC)
Female to Male Type (FC, SC, ST, LC)
In-Line Attenuator (Fused and Fiber Jumpers Type)
High Return Loss (In-Line and High RL Type)
Exact and Stable Attenuation (Variable Type)

Component Specifications

No	Name	Description
1	Big Square Dust Cap	PE/PP, White
2	LC Ferrule	LC 0.5 Concentricity, Zirconia Ceramics
3	Ferrule Metal Boot	Copper Plated with Nickel
4	LC Front Shell	PEI/PC+PBT, UPC Blue, APC Green
5	LC Back Shell	PEI/PC+PBT, UPC Blue, APC Green
6	Spring	SUS304 / 201
7	LC Ferrule	LC 0.5 Concentricity, Zirconia Ceramics
8	LC Adapter Dust Cap	PE/PP, White (Shape & size may change if not specified)
9	Attenuator Fiber	16mm

WHATSAPP 008613534063703

Performance Specifications

Fiber optic attenuators are used in applications where a predetermined amount of light loss is specified. We offer LC, FC, SC, ST, MU fixed attenuators with different attenuation levels from 1dB to 30dB.

Attenuation Value: 0dB to 30dB

Operating Wavelength: SM: 1260nm~1620nm, MM: 850/1300nm (Customer ordered)

Return Loss: UPC≥50dB, APC≥60dB

Polarization Loss: ≤0.2dB

Attenuation Tolerance: 0dB~9dB: 0.5dB, 10~30dB: 10% of attenuation value

Maximum Power Capability: 250mW

Operating Temperature: -40°C~+85°C

Storage Temperature: -40°C~+85°C

Applications

Power management in optical networks
Wavelength division multiplexing (WDM) system channel balancing
Erbium Doped Fiber Amplifiers (EDFA)
Optical add-drop multiplexers (OADM)
Receiver protection
Test equipment
Compensation of different connector attenuation

Frequently Asked Questions

Are you the real factory?

Yes, we are the real factory with 16 years of manufacturing history.

What is your fiber brand?

Fiber brands including YOFC and FiberHome.

What are your main products?

Fiber optic patch panels, fiber MPO & MTP cassettes, MPO & MTP cables, outdoor fiber optic cables, indoor fiber optic cables, FTTH drop cables, ADSS cables, indoor armored patch cords, and optical patch cords (SC, LC, FC, ST, MTP, MPO).

What is your product quality guarantee period?

20 years guarantee for fiber optic cable products.

Do you have certificates for raw materials?

We maintain long-term relationships with qualified ISO9001 ROHS certified raw material suppliers.

What is your delivery time?

Within 48 hours for standard fiber optic products.

What is your minimum order quantity (MOQ)?

MOQ for Fiber Optic Cable Patch Panel is 10 sets. There is no MOQ required for fiber optic patch cords as we maintain stock for standard types.

Do you have distributors in other countries?

Currently we sell our products directly to customers and offer factory pricing.

What payment methods do you accept?

For large orders: T/T. For small orders: T/T and Paypal are acceptable.

What are your shipping and delivery options?

For large orders: by sea (LCL or FCL). For small orders: by sea (LCL), by air, or by courier services - any of which is optional.
