Product Details:
|
| Connector: | MPO/MTP | Connector Type: | MPO/SC |
|---|---|---|---|
| Operating Temperature: | -40℃ ~ +80℃,40~+85 | Insertion Loss: | Standard Loss And Elite |
| Type: | Multi-mode | Warranty: | 1 Years |
| Material: | Plastics And Aluminum Alloy | Wavelength: | 850nm/1310nm/1550nm |
| Capacity: | SC Max 12core/LC Max 24core | ||
| High Light: | 24f Array MPO Cassette Module,SM MM MPO Cassette Module,MPO MTP Fanout Cassette Module |
||

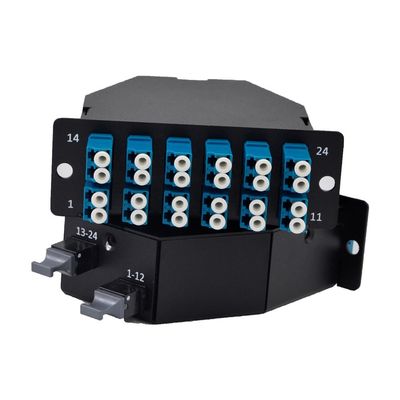

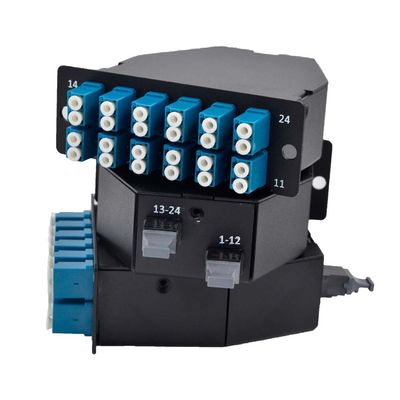

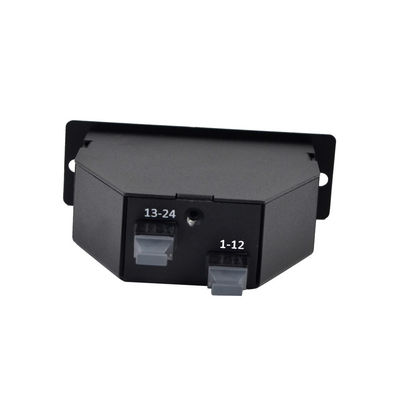

Low loss SM / MM 24 fiber array elite MPO / MTP Fanout cassette module
Description of MPO / MTP Fanout cassette module
The MPO / MTP Cassette Modules provide secure transition between MPO / MTP and LC or SC discrete connectors. They provide a quick, reliably high performance and efficient way to deploy up to 24 LC or 12 SC fiber ports in a single module.The Modules can be mounted in 1U or 4U 19”multislot chassis. They are available in Multi-mode and Single-mode cable.
Features of MPO / MTP Fanout cassette module
High-density and small design, Easy and fast installation.
Available in 12 / 24 / 48 fiber versions.
Field connections with guaranteed quality and simplifies fiber routing.
Modular system management, easy reconfiguration for moves, adds, and changes.
Customized fiber polarity in the module.
Applications of MPO / MTP Fanout cassette module
Data Centre Infrastructure.
High Density Fiber Management.
Telecommunications networks and Broadband / CATV networks.
LAN/WAN Premises
MPO Male Adapter of MPO / MTP Fanout cassette module
Material: Polybutylene Terephthalate (PBT)
Color: Black
Mating Cycles: 1000 Mating Cycles
Dust Cap: TPR
Color: Black
Insertion Loss: <0.5dB
Material of of MPO / MTP Fanout cassette module :
Cassette Housing:
Material: Aluminum Alloy
Surface Finishing: Black Powder Coat
| Fiber Count | 12 / 24 | Fiber Mode | OM3 50/125 μm |
| Front Connector Type | 12 LC UPC Duplex | Rear Connector Type | 1x MPO UPC Male (pinned) |
| MPO Adapter | Key up to Key down | Glass Fiber | Corning ClearCurve® |
| Insertion Loss | MPO≤0.35 dB, LC≤0.2 dB | Return Loss | MPO≥20 dB, LC≥30 dB |
| Operating Temperature | 0°C to 70°C | Storage Temperature | -40°C to 75°C |
| Dimensions (HxWxD) | 1.38''x4.29''x4.64'' (35x109x118 mm) | Application | Matching for Type AF Cassette |
Performance Properties of MTP / MPO cassette module :
| Front Connector | LC/SC duplex |
| Material of Sleeve | Zirconia Ceramic |
| Insertion Loss | Multimode: UPC ≤0.2dB Single mode: APC ≤0.3dB UPC ≤0.2dB |
| Return Loss | Multimode: UPC ≥30dB Single mode: APC ≥60dB UPC ≥50dB |
Polarity Illustration of Singlemode Cassette :
In simple terms, an MTP® connector, as described by US Conec, is “a high-performance MPO connector with multiple engineered product enhancements, improving optical and mechanical performance when compared with generic MPO connectors”. MTP® and MPO connectors are fully compatible.
MTP is a brand of US Conec and MTP® brand connectors are fully compliant with IEC Standard 61754-7 and TIA 604-5 – Type MPO.
Some of the advantages and distinctions between MTP® and MPO connectors include:
