Product Details:
|
| Description: | LC Connector, Tx1550nm, DFB, Singlemode | Application Area: | 90-120㎡ |
|---|---|---|---|
| Power Supply: | +3.3V | Use: | Optical Transmission Network |
| Size: | 110*40*20mm | Connetor: | Duplex LC |
| Package Style: | SFP | Shipment: | DHL,Fedex,UPS,TNT,EMS |
| High Light: | SFP Fiber Optic Transceiver,10/100/1000M Media Converter |
||
Our Fiber Optic Transceiver comes in a compact size of 110*40*20mm, making it easy to install in tight spaces. The package style is SFP, which stands for Small Form-Factor Pluggable. This means that you can easily plug and unplug the transceiver from your device without having to power it down, making it highly convenient for field technicians.
This Fiber Optic Transceiver comes with a LC connector, which is a type of optical fiber connector that uses a snap-in locking mechanism to ensure a secure connection. The LC interface is highly reliable and is widely used in telecommunications, data centers, and enterprise networking applications.
Our Fiber Optic Transceiver operates at a wavelength of Tx1550nm and features a DFB (Distributed Feedback) laser, which provides a stable and precise output signal. This transceiver is designed for singlemode fiber optic cable, which is ideal for long-distance data transmission.
In addition, our Fiber Optic Transceiver also features LC DDM (Digital Diagnostic Monitoring), which provides real-time monitoring of the transceiver's operating conditions, such as temperature, voltage, and optical power levels. This feature is highly beneficial for network administrators as it allows them to proactively monitor the health of their network and quickly identify potential issues.
Our Fiber Optic Transceiver comes with a 1-year warranty, which provides you with peace of mind knowing that you are covered in case of any defects or malfunctions.
In summary, our Fiber Optic Transceiver is a high-performance and reliable solution for your data communication needs. With its compact size, SFP package style, LC connector, Tx1550nm wavelength, DFB laser, and LC DDM feature, this transceiver is an excellent choice for network administrators who demand the best in quality and performance. So why wait? Order our Fiber Optic Transceiver today and experience the difference!

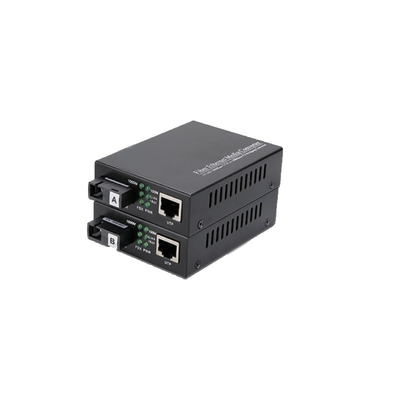

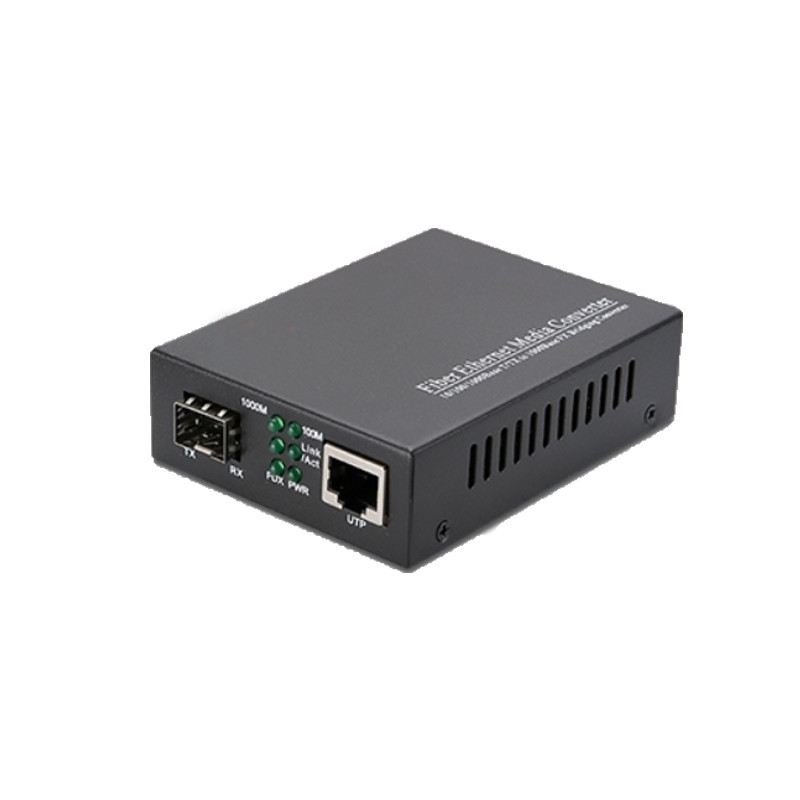

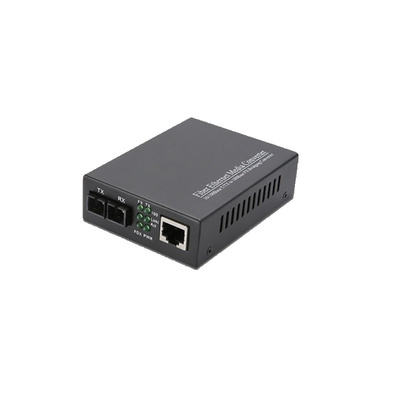

nterface Support: Fiber Interface is SC or SFP Slot. Twisted pair interface for RJ45
Operating mode: auto-adaptive for full/half duplex mode
Support automatic MDI/MDIX
Individual power supply for 6 LED indicators
Individual LED indicators for fiber port and UTP port status
External DC power and built-in power designs are both available
Relative humidity: 5%- 90%
Operating temperature:
Commercial: 0 ~ +70℃
Industrial: -40 ~ +85℃
Storage temperature: -40 ~ +70℃
| Parameter | Symbol | Min | Typ | Max | Unit | Ref. |
| Transmitter | ||||||
| Output Opt. Pwr (End of Life) | POUT | -2 | 3 | dBm | 1 | |
| Optical Wavelength | λ | 1270 | 1310 | 1360 | nm | |
| Wavelength Temperature Dependence | 0.08 | 0.125 | nm/°C | |||
| Spectral Width (-20dB) | σ | 3.0 | nm | |||
| Optical Extinction Ratio | ER | 10 | dB | |||
| Sidemode Suppression ratio | SSRmin | 30 | dB | |||
| Optical Rise/Fall Time | tr/ tf | 100 | 160 | ps | ||
| RIN | RIN | -120 | dB/Hz | |||
| Transmitter Jitter (peak to peak) | 100 | ps | ||||
| Receiver | ||||||
| Average Rx Sensitivity @ Gigabit Ethernet | RSENS3 | -25.0 | dBm | 2 | ||
| Maximum Input Power | PMAX | -3.0 | dBm | |||
| Optical Center Wavelength | λC | 1260 | 1310 | 1620 | nm | |
| LOS De -Assert | LOSD | -26 | dBm | |||
| LOS Assert | LOSA | -40 | dBm | |||
| LOS Hysteresis | 1.0 | dB | ||||
| Receiver Jitter Generation @1.25Gbps | 160 | ps | 3 |
The Fiber Optic Transceiver is designed with a 1310 wavelength, making it ideal for single mode transmission. It is equipped with an LC interface, making it easy to connect to other devices. Whether it be for data centers, telecommunication networks, or even security systems, this transceiver is perfect for any scenario that requires long-distance optical transmission.
The transceiver's long-distance capabilities are especially useful for large buildings or campuses that require a reliable and efficient transmission network. With its 60km range, it can easily connect different areas within a building or campus without sacrificing speed or quality.
The Fiber Optic Transceiver's compact design allows for easy installation, making it a great option for those who need to set up a network quickly and efficiently. Whether you are a small business owner or a large corporation, this transceiver is an affordable and effective solution for all your optical transmission needs.
Product Packaging:
Shipping:
Q: What is the brand name of this Fiber Optic Transceiver?
A: The brand name of this Fiber Optic Transceiver is NEW LIGHT.
Q: What is the model number of this Fiber Optic Transceiver?
A: The model number of this Fiber Optic Transceiver is NLM-GE00-SFP.
Q: Where is this Fiber Optic Transceiver manufactured?
A: This Fiber Optic Transceiver is manufactured in China.
Q: What is the data transfer rate of this Fiber Optic Transceiver?
A: The data transfer rate of this Fiber Optic Transceiver is up to 1.25Gbps.
Q: What is the maximum operating distance of this Fiber Optic Transceiver?
A: The maximum operating distance of this Fiber Optic Transceiver is up to 550m.
