Product Details:
|
| Description: | LC Connector, Tx1550nm, DFB, Singlemode | Power Supply: | +3.3V |
|---|---|---|---|
| Connetor: | Duplex LC | Ddm: | Yes |
| Data-rate: | 1.25Gbps Operation | Size: | 110*40*20mm |
| Application Area: | 90-120㎡ | Use: | Optical Transmission Network |
| High Light: | 1.25Gbps Fiber Optic Transceiver,3.3V Fiber Optic Transceiver,LC Duplex Fiber Optic Transceiver |
||
| Parameter | Specifications |
| Access mode | 10/100/1000Mbps |
| Standard | IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit thernet,IEEE802.1qVLAN,IEEE802.1p QoS,IEEE802.1d Spanning Tree |
| Wavelength | Mulitmode:850; Single-mode:1310/1550nm |
| Distance |
Category-5 twisted pair: 100m Fiber:multi-mode 50/125,62.5/125μm(the max distance up to(220m or 550m) Fiber:Single -mode 8/125,8.7/125,9/125,10/125μm(the max distance up to 20 -80km) |
| Port |
One RJ45 port: For connecting STP/UTP category-5 twisted pairs One optical port: Multi-mode, dual fiber: SC (50, 62.5/125μm) Single mode, dual fiber: SC or FC (9/125μm) Single mode Single fiber: SC or FC (9/125μm) |
| Conversion means | Media conversion |
| MAC address table | 1K |
| Buffer space | 256kbit |
| Flow control |
Full duplex: flow control; Half duplex: back pressure |
| Delay | Store-and-forward: 9.6μs; cut-through: 0.9μs |
| BER | <19-9 |
| MTBF | 100,000 hours |
| LED indicator | PWR (power supply), FX LINK (optical link action), TP LINK1000 (twisted pair link1000M), TP LINK100 (twisted pair link 100M), TP ACT (twisted pair packet forwarding) |

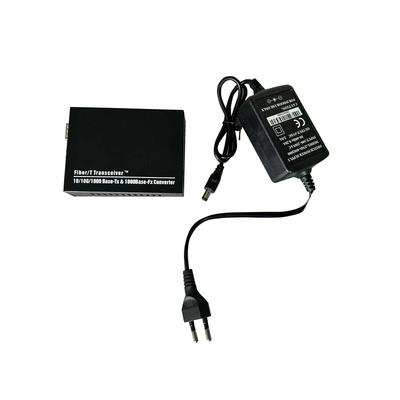

| Power supply | DC5V 1A (external), DC12V, AC220V 0.5A/DC-48 (internal) |
| Power consumption | 5W |
| Operating temperature | -10~55ºC |
| Operating humidity | 5%~90% |
| Maintaining temperature | -40~70ºC |
| Maintaining humidity | 5% ~ 90% non-condensing |
| Dimensions |
External power supply: 26mmx 70mm x 95mm Internal power supply: 30mm x 110mm x 140m |
Applications:The NLM-GE00-SFP Fiber Optic Transceiver is a product that is well suited for a variety of application occasions and scenarios. It is ideal for use in LC interface applications, which require high-speed data transmission over long distances. This transceiver is designed to support SFP 1.25G 60km Tx1550nm LC DDM, making it the perfect solution for single mode fiber optic communication networks.
The NLM-GE00-SFP Fiber Optic Transceiver offers a data transfer rate of 10/100/1000 Mbps, which makes it a reliable and efficient solution for high-speed data transmission. It is also designed to operate at a wide range of temperatures, with a working temperature of 0℃～ +70℃. This makes it ideal for use in a variety of environments, including harsh industrial environments.
The NLM-GE00-SFP Fiber Optic Transceiver is a product that is well suited for a variety of scenarios. It is ideal for use in long-distance fiber optic communication networks, where reliable and efficient data transmission is essential. It is also well suited for use in data centers, where high-speed data transmission is crucial for the smooth operation of the network.
The NLM-GE00-SFP Fiber Optic Transceiver is a product that is designed to provide a reliable and cost-effective solution for fiber optic communication networks. It is a product that is well suited for a variety of application occasions and scenarios, including LC interface applications, long-distance fiber optic communication networks, and data centers. With its high-performance capabilities and wide operating temperature range, this product is a reliable and efficient solution for any fiber optic communication network.

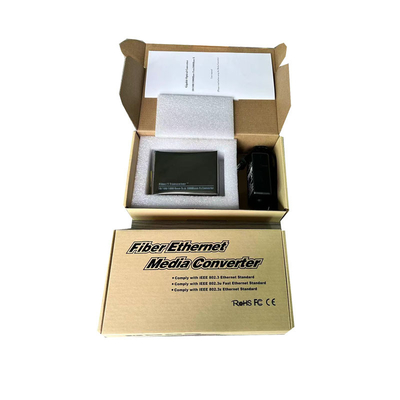

Product Packaging:
The Fiber Optic Transceiver product will be packaged securely in a sturdy cardboard box to ensure safe transportation. The box will be labeled with the product name, model number, and any other relevant information such as safety instructions or handling precautions.
Shipping:
We offer shipping services through trusted carriers such as FedEx and UPS. The shipping cost will be calculated at checkout based on the destination and shipping method selected. Customers can choose from standard or expedited shipping options.
Once the order is processed, customers will receive a tracking number via email to track the shipment. We strive to ship all orders within 24 hours of receiving payment, and delivery times may vary depending on the destination.
Q: What is the brand name of this fiber optic transceiver?
A: The brand name of this fiber optic transceiver is NEW LIGHT.
Q: What is the model number of this fiber optic transceiver?
A: The model number of this fiber optic transceiver is NLM-GE00-SFP.
Q: Where is this fiber optic transceiver manufactured?
A: This fiber optic transceiver is manufactured in China.
Q: What type of connector does this fiber optic transceiver use?
A: This fiber optic transceiver uses an SFP connector.
Q: What is the maximum data transfer rate of this fiber optic transceiver?
A: The maximum data transfer rate of this fiber optic transceiver is 1.25Gbps.
