Product Details:
|
| Power Supply: | +3.3V | Components: | 1.25G 60km SFP Transceiver |
|---|---|---|---|
| Support: | SFP 1.25G 40km Tx1550nm LC DDM | Working Temperature: | 0℃～ +70℃ |
| Shipment: | DHL,Fedex,UPS,TNT,EMS | Use: | Optical Transmission Network |
| Ddm: | Yes | Size: | 110*40*20mm |
| High Light: | 60km Optical Transceiver Module,Long Range Optical Transceiver Module,DDM Supported Optical Transceiver Module |
||
One of the key components of this product is the 1.25G 60km SFP Transceiver. This transceiver can support LC interface, which makes it easy to connect with other devices in your network. It can also support 10/100/1000 Mbps data transfer speeds, ensuring that your data is transferred quickly and efficiently.
Whether you need to set up a new network or upgrade an existing one, the Fiber Optic Transceiver is the perfect tool for the job. It is easy to install and use, and it can help you achieve faster and more reliable data transfer speeds. With its durable construction and reliable performance, this transceiver is a must-have for any modern business or organization.
| Parameter | Specifications |
| Access mode | 10/100/1000Mbps |
| Standard | IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit thernet,IEEE802.1qVLAN,IEEE802.1p QoS,IEEE802.1d Spanning Tree |
| Wavelength | Mulitmode:850; Single-mode:1310/1550nm |
| Distance |
Category-5 twisted pair: 100m Fiber:multi-mode 50/125,62.5/125μm(the max distance up to(220m or 550m) Fiber:Single -mode 8/125,8.7/125,9/125,10/125μm(the max distance up to 20 -80km) |
| Port |
One RJ45 port: For connecting STP/UTP category-5 twisted pairs One optical port: Multi-mode, dual fiber: SC (50, 62.5/125μm) Single mode, dual fiber: SC or FC (9/125μm) Single mode Single fiber: SC or FC (9/125μm) |
| Conversion means | Media conversion |
| MAC address table | 1K |
| Buffer space | 256kbit |
| Flow control |
Full duplex: flow control; Half duplex: back pressure |
| Delay | Store-and-forward: 9.6μs; cut-through: 0.9μs |
| BER | <19-9 |
| MTBF | 100,000 hours |
| LED indicator | PWR (power supply), FX LINK (optical link action), TP LINK1000 (twisted pair link1000M), TP LINK100 (twisted pair link 100M), TP ACT (twisted pair packet forwarding) |
| Power supply | DC5V 1A (external), DC12V, AC220V 0.5A/DC-48 (internal) |
| Power consumption | 5W |
| Operating temperature | -10~55ºC |
| Operating humidity | 5%~90% |
| Maintaining temperature | -40~70ºC |
| Maintaining humidity | 5% ~ 90% non-condensing |
| Dimensions |
External power supply: 26mmx 70mm x 95mm Internal power supply: 30mm x 110mm x 140m |
This Fiber Optic Transceiver product is designed for use in optical transmission networks, enabling data transmission at a rate of 1.25Gbps. Its 1310 wavelength and single mode capabilities make it an ideal solution for transmitting data over long distances.
Whether you're setting up a new network or upgrading an existing one, the NEW LIGHT Fiber Optic Transceiver product can be used in a variety of different scenarios. For example, it can be used to connect servers, switches, and routers in data centers, providing lightning-fast data transfer speeds of up to 10/100/1000 Mbps.
Additionally, this product can be used in telecommunications networks, including local area networks (LANs) and wide area networks (WANs). Its high-speed data transfer capabilities make it an ideal choice for businesses, educational institutions, and government agencies that require fast and reliable networking solutions.
In summary, the NEW LIGHT Fiber Optic Transceiver product is a versatile and reliable networking solution that can be used in a variety of different scenarios. Whether you're looking to upgrade an existing network or build a new one from scratch, this product can help you achieve lightning-fast data transfer speeds and reliable connectivity. So why wait? Order your Fiber Optic Transceiver product today and start enjoying the benefits of high-speed networking!

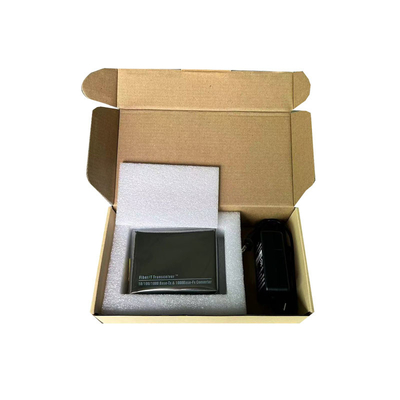

Product Packaging:
Shipping:
Q: What is the brand name of this fiber optic transceiver?
A: The brand name of this fiber optic transceiver is NEW LIGHT.
Q: What is the model number of this fiber optic transceiver?
A: The model number of this fiber optic transceiver is NLM-GE00-SFP.
Q: Where is this fiber optic transceiver manufactured?
A: This fiber optic transceiver is manufactured in China.
Q: What is the wavelength of this fiber optic transceiver?
A: The wavelength of this fiber optic transceiver is 1310nm.
Q: What is the maximum data rate of this fiber optic transceiver?
A: The maximum data rate of this fiber optic transceiver is 1.25 Gbps.
