Product Details:
|
| Description: | LC Connector, Tx1550nm, DFB, Singlemode | Data-rate: | 1.25Gbps Operation |
|---|---|---|---|
| Size: | 110*40*20mm | Package Style: | SFP |
| Power Supply: | +3.3V | Connetor: | Duplex LC |
| Support: | SFP 1.25G 60km Tx1550nm LC DDM | Ddm: | Yes |

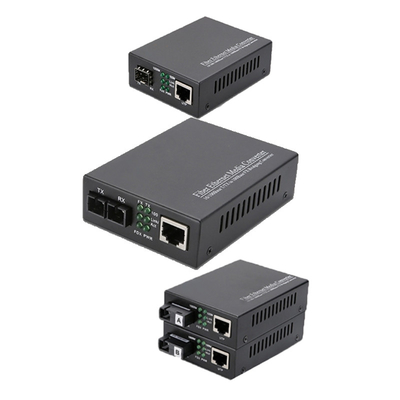

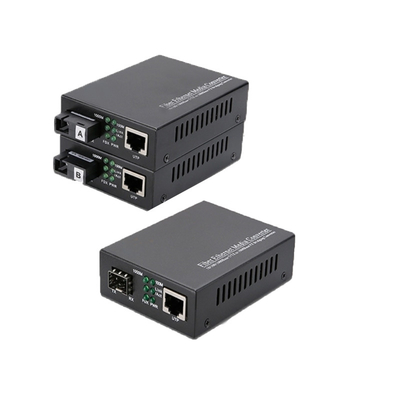

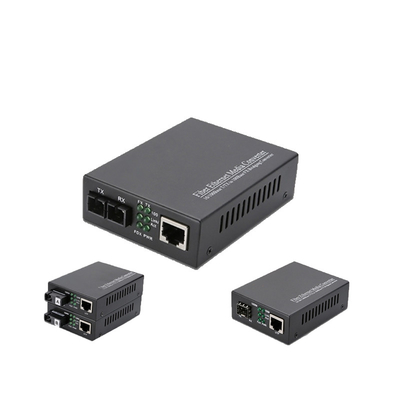

Fiber Media Converter is a fiber transceiver with one 10/100/1000M Fiber Optical Port and one 10/100/1000Base-T(X) Adaptive Ethernet RJ45 Interface. High Performance and Stable Quality with IC+ & Realtek Chipset solutions.
| Parameter | Symbol | Min | Typ | Max | Unit | Ref. |
| Transmitter | ||||||
| Output Opt. Pwr (End of Life) | POUT | -2 | 3 | dBm | 1 | |
| Optical Wavelength | λ | 1270 | 1310 | 1360 | nm | |
| Wavelength Temperature Dependence | 0.08 | 0.125 | nm/°C | |||
| Spectral Width (-20dB) | σ | 3.0 | nm | |||
| Optical Extinction Ratio | ER | 10 | dB | |||
| Sidemode Suppression ratio | SSRmin | 30 | dB | |||
| Optical Rise/Fall Time | tr/ tf | 100 | 160 | ps | ||
| RIN | RIN | -120 | dB/Hz | |||
| Transmitter Jitter (peak to peak) | 100 | ps | ||||
| Receiver | ||||||
| Average Rx Sensitivity @ Gigabit Ethernet | RSENS3 | -25.0 | dBm | 2 | ||
| Maximum Input Power | PMAX | -3.0 | dBm | |||
| Optical Center Wavelength | λC | 1260 | 1310 | 1620 | nm | |
| LOS De -Assert | LOSD | -26 | dBm | |||
| LOS Assert | LOSA | -40 | dBm | |||
| LOS Hysteresis | 1.0 | dB | ||||
| Receiver Jitter Generation @1.25Gbps | 160 | ps | 3 |
Feature
Interface Support: Fiber Interface is SC or SFP Slot. Twisted pair interface for RJ45
Operating mode: auto-adaptive for full/half duplex mode
Support automatic MDI/MDIX
Individual power supply for 6 LED indicators
Individual LED indicators for fiber port and UTP port status
External DC power and built-in power designs are both available
Relative humidity: 5%- 90%
Operating temperature:
Commercial: 0 ~ +70℃
Industrial: -40 ~ +85℃
Storage temperature: -40 ~ +70℃
The NEW LIGHT NLM-GE00-SFP Fiber Optic Transceiver is a reliable and efficient product that is made in China. With its LC connector, Tx1550nm, DFB, and single mode, this product is designed to provide high-quality data transmission to various networks. It also comes with DDM, which ensures accurate monitoring of the transceiver's performance.
The NLM-GE00-SFP is packaged in an SFP style, making it easy to install and use. Its 10/100/1000 Mbps speed and 1310 wavelength make it ideal for a wide range of applications in areas ranging from 90-120㎡. The product is also backed by a 1-year warranty, providing customers with peace of mind knowing that they are purchasing a reliable product.
Given its features, the NLM-GE00-SFP Fiber Optic Transceiver is best suited for a variety of application scenarios. One such scenario is in data centers, where high-speed data transmission is critical. The product is also ideal for use in large office spaces, where reliable and efficient data transmission is necessary for day-to-day operations.
Another use case for the NLM-GE00-SFP Fiber Optic Transceiver is in educational institutions. With its high-speed data transmission capabilities, it can support a large number of users and devices, ensuring that students and faculty have access to the resources they need to learn and work efficiently.
The product is also suitable for use in healthcare facilities, where reliable and efficient data transmission is necessary for patient care. It can also be used in manufacturing plants, where real-time data transmission is essential for monitoring production processes and ensuring optimal efficiency.
In summary, the NEW LIGHT NLM-GE00-SFP Fiber Optic Transceiver is a versatile and reliable product that can be used in a wide range of application scenarios. Its LC DDM, 1310 wavelength, and 10/100/1000 Mbps speeds make it a valuable asset in data centers, educational institutions, healthcare facilities, and manufacturing plants, among others. With its 1-year warranty, customers can be confident in the product's quality and reliability.
Product Packaging:
Shipping:
Q: What is the brand name of the Fiber Optic Transceiver?
A: The brand name of the Fiber Optic Transceiver is NEW LIGHT.
Q: What is the model number of the Fiber Optic Transceiver?
A: The model number of the Fiber Optic Transceiver is NLM-GE00-SFP.
Q: Where is the Fiber Optic Transceiver manufactured?
A: The Fiber Optic Transceiver is manufactured in China.
Q: What is the data rate of the Fiber Optic Transceiver?
A: The Fiber Optic Transceiver supports a data rate of up to 1Gbps.
Q: What is the maximum transmission distance of the Fiber Optic Transceiver?
A: The maximum transmission distance of the Fiber Optic Transceiver is 10 kilometers.
