MPO MTP Patch Cord

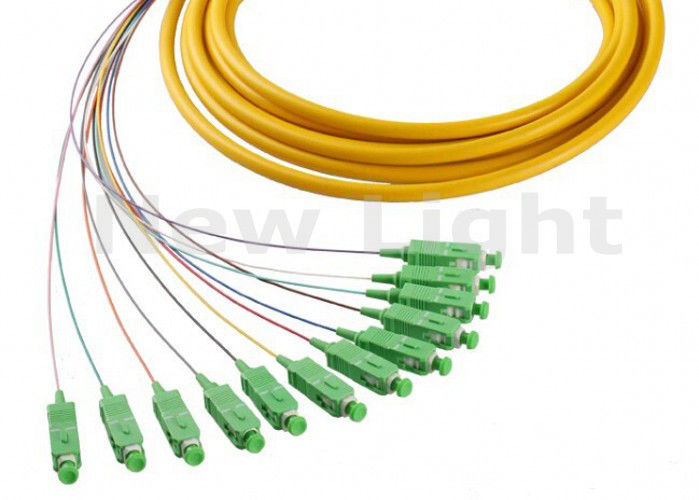

1 Meter Single Mode SC APC 12 Core Fiber Optic Pigtail for High-Speed Data Transmission

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

1 Meter Single Mode SC APC 12 Core Fiber Optic Pigtail for High-Speed Data Transmission

Brand Name:	NEW LIGHT
MOQ:	10pcs
Price:	0.1~100
Packaging Details:	1 pcs per pack
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

IS09001-2008.ROHS

Name:

FC Pigtail

Diameter:

0.9mm

Model:

Single

Connector:

Color:

Option

Length:

1 Meter

Supply Ability:

10000pcs/month

Highlight:

fiber optic pigtail

ftth fiber optic cable

Product Description

1 Meter Fiber Optic Jumper Cables SM Simplex SC APC 12 Core Fanout Fiber Optic Pigtails

Product Overview

SC APC 12 core fanout fiber optic pigtails SM simplex 12 core optical fiber pigtails provide reliable factory terminations for field installations. These pigtails are available in various configurations including single-mode, multimode, and 10G 50/125um OM3 types.

Technical Specifications

Parameter	PC (SM)	UPC (SM)	APC (SM)	MM
Return Loss (dB)	≥45	≥50	≥60	≥35
Insertion Loss (dB)	≤0.2 (max≤0.3)
Repeatability (dB)	≤0.1
Durability (Matings)	≥500
Operation Temperature (°C)	-25 to +70
Tensile Strength (N)	≥90 (Φ3.0), ≥70 (Φ2.0), Φ0.9
Fiber Types	9/125um, 50/125um, 62.5/125um, etc.
Diameter Options	0.9mm, 2.0mm, 3.0mm
Cable Material	PVC, LSZH
Core Configurations	Simplex, duplex, 4 cores, 6 cores, 8 cores, 12 cores, etc.

Key Features

Compliant with Telcordia GR-326-CORE, TIA/EIA and IEC standards
Low Insertion Loss & Back Reflection
Environmentally Stable performance
Available in 2, 4, 6, 8, 12 and 24 channels
Saves duct space, cost and installation time
Easy push/pull operation
Breakout cable, bundle distribution cable, ribbon cable, and outdoor waterproof cable options
High precision mechanical dimensions
Excellent exchange ability and durability
Fan-out available with various boot sizes

Applications

Optical fiber communication systems
Optical fiber test equipment
Optical fiber access networks
Optical fiber sensors
Optical fiber CATV systems
Optical fiber data transmission
Local area networks
