FTTH FC APC Fiber Optic Splitter Single Mode 1x32 PLC Splitter With FC APC Connector

Brand Name:	New Light
MOQ:	10
Price:	1~30
Packaging Details:	export packing
Payment Terms:	Western Union, T/T, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Brand Name:

New Light

Certification:

ISO ,ROSH

Color:

Single Mode Fiber Splitter

Connector Type:

Polish:

APC

Cable Diameter:

2.0mm

Mode:

Single Mode

OEM:

Available

Minimum Order Quantity:

Price:

1~30

Packaging Details:

export packing

Delivery Time:

15 working days

Payment Terms:

Western Union, T/T, MoneyGram

Supply Ability:

1000000

Highlight:

fiber optic plc splitter

fiber optic cable splitter

Product Description

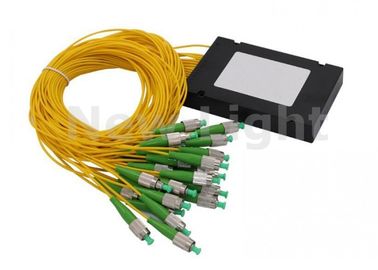

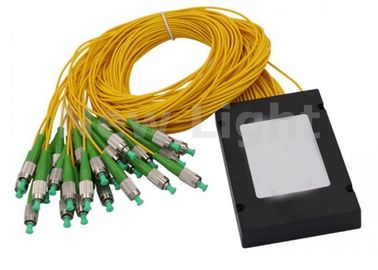

FC APC 1x32 PLC optical splitter single mode with FC APC connector for FTTH

Application:

Fiber Optic CATV; Fiber to home (FTTH); Passive Optical Networks; Fiber communication systems;

Local Areal Networks (LAN)

Specification:

Parameters		1x4	1x8	1x16	1x32	1x64
Operating Wavelength(nm)		1260-1650
Insertion Loss (dB)	Max(S/P)	7.4/7.2	10.7/10.5	13.7/13.5	16.9/16.5	21
Loss Uniformity (dB)	Max	0.6	0.8	1.2	1.7	2.5
Return Loss (dB)	Min(S/P)	50/55	50/55	50/55	50/55	50
PDL (dB)	Max	0.2	0.3	0.3	0.3	0.4
Directivity (dB)	Min	55	55	55	55	55
Pigtail Length(m)		1.2(±0.1) or customer specified
Fiber Type		SMF -28e or customer specified
Wavelength Dependent Loss(dB)		1	1	1	1	1
Temperature Stability		0.6	0.6	0.8	1	1
(-40~85 ℃)(dB)
Operating Temperature( ℃)		-20~75
Storage Temperature( ℃)		-40~85
Packaging Size(L x W x H)(mm)		40x4x4	40x4x4	40x4x4	50x7x4	60x12x4
