FC to SC Single Mode Fiber Optic Adapter with UPC Polishing and Blue Housing for CATV Application

Brand Name:	New Light
Model Number:	FC female to SC male
MOQ:	100
Price:	0.08~1.5
Packaging Details:	standard export package
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Material:

Plastic / Metal

Connector Type:

FC / SC

Mode Type:

Single Mode UPC

Repeatability:

>1000 Times

Return Loss:

UPC ≥55dB

Product Name:

FC To SC Single Mode Fiber Adapter Blue Housing UPC Polishing CATV Application

Insertion Loss:

<0.3db

Storage Temperature:

-40℃~+75℃

Operating Temp:

-40~70°C

Supply Ability:

1000000

Highlight:

fiber optic cable adapter

lc fiber optic adapter

Product Description

FC to SC Single Mode Fiber Adapter

Blue housing UPC polishing for CATV applications

Product Overview

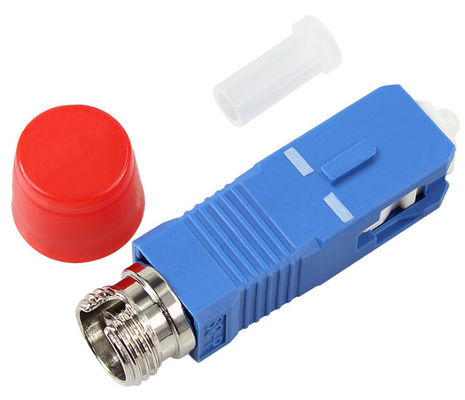

This SC male to FC female fiber optic adapter features a unique hybrid design with one side as FC connector and the other as SC connector. The SC side includes a ferrule (male connector), while the FC side is female without ferrule. Available in various connector cap colors including yellow and red for single mode applications.

Technical Specifications

Parameter	Specification
Model	Fixed, Female & Male
Connector Type	SC male to FC female
Housing Color	Blue
Mode Type	UPC single mode
Operating Wavelength	1310/1550nm
Return Loss	≥55dB
Attenuation Tolerance	≤±0.5(1-10dB) or ≤±1.0(11-30dB)
Polarization Dependent Loss	≤0.1dB
Working Temperature	-40°C to +75°C
Storage Temperature	-40°C to +85°C
Humidity	95% RH

Applications

Testing equipment
Fiber optical CATV systems
Fiber optical sensors
Fiber optical telecommunication systems

Key Features

Low insertion loss and high return loss
High reliability and stability
Wide operating temperature range from -40°C to 85°C
Compatible with fixed attenuators (FC, SC, ST, LC)
Available in female to male types (FC, SC, ST, LC)
In-line attenuator options (fused and fiber jumpers type)
High return loss models available
Exact and stable attenuation for variable types

Ordering Information

Step 1: Connector type: FC, SC, LC, ST
Step 2: Ferrule End-face: PC, UPC, APC
Step 3: Type: Single-mode, Multimode
Step 4: Mode: Fixed, Female & Male, In-line, Variable
Step 5: Wavelength: 1310nm, 1550nm, 850nm, 1300nm

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What is your minimum order quantity (MOQ)?

MOQ can be 1 piece, but we recommend larger quantities for better pricing as single unit costs are higher.

What is the price?

Pricing depends on quantity. We provide competitive pricing for bulk orders upon request.

Can you quote FOB price?

We typically ship via air courier (DHL, TNT, UPS, FedEx). For large sea shipments, we can provide CFR pricing. EXW or CFR terms are preferred.

How is your quality control?

We follow IEC and European standards in near dust-free workshops using imported production and quality control equipment. All products undergo 100% testing before delivery.

What is your lead time?

We operate three factories in China. For fiber optic patch cords, lead time is 2-3 working days for 5,000 pieces. Regular products are typically in stock.

What is your warranty policy?

Patch cords carry a 2-year warranty for non-artificial damage. Artificial damage repairs are free, but freight costs are the customer's responsibility.

What is your packaging?

We use international export packaging and can print customer logos upon request.

Do you offer OEM/ODM services?

Yes, we accept OEM/ODM orders and can sign confidentiality agreements.

Can I request a sample?

Free samples available for adapters, attenuators, patch cords, and pigtails with freight prepaid by customer. High-value products require sample charges.

How do I place an order?

Contact us with product specifications and quantity. We'll provide pricing and lead time, then issue a proforma invoice upon acceptance.

What are your payment terms?

T/T, Western Union, PayPal, MoneyGram. For large orders: 50% deposit, 50% balance before delivery.

Packaging Reference

Contact: WhatsApp 008613534063703
