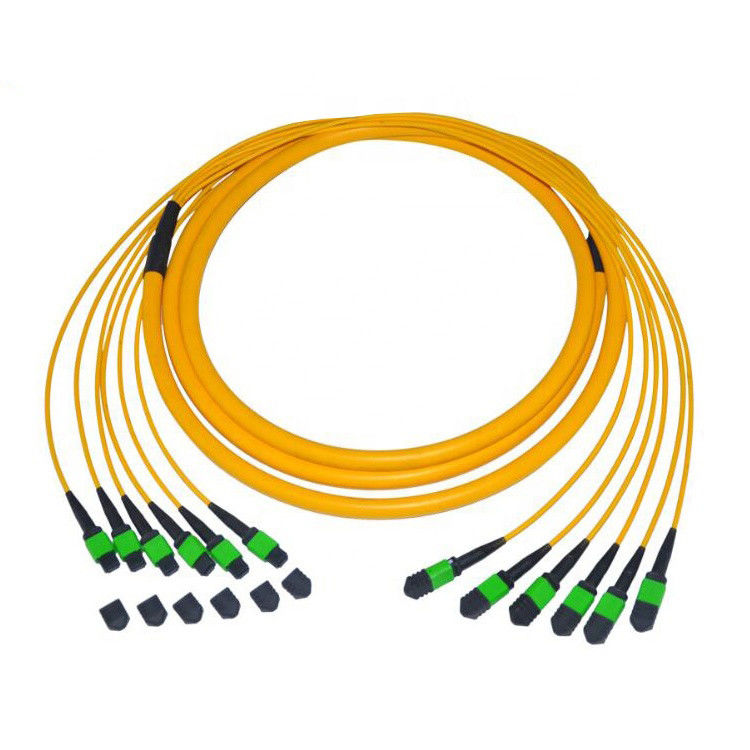

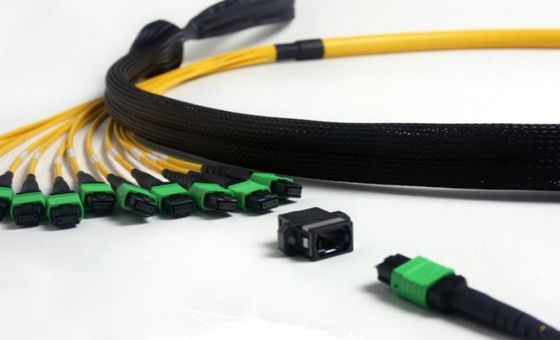

Single Mode 9 / 125 Fiber Optic Patch Cord Cable 12 Fiber Trunk MTP / MPO Pvc

Brand Name:	New Light
Model Number:	MPO / MTP - MTP/MPO
MOQ:	1~10000
Price:	6~15
Packaging Details:	OPP bag + carton box
Payment Terms:	L/C, T/T, Western Union, MoneyGram , paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

CE , ISO , RoHS

Connector Type:

MPO / MTP -MPO/MTP

Material:

Mode Type:

Single Mode

Core Type:

12 Core

Cable Color:

Yellow

Length:

Can Be Customized

Certificate:

CE , ISO , RoHS

Delivery Time:

2-7 Working Days After Received Deposit

Production Ability:

500 Pcs / Day

Payment Term:

T/T , 30% Deposit In Advance

Products Name:

12 Fiber Trunk MTP / MPO Pvc Round Cable Single Mode 9 / 125 Fiber Optic Patch Cord

Supply Ability:

500 pcs per day

Highlight:

mpo fiber cable

mpo to mpo cable

Product Description

12 Fiber trunk MTP / MPO pvc round cable single mode 9 / 125 Fiber Optic Patch Cord

Order Information:

Connector type: MPO-female, MPO-male

Ferrule End-face: PC, APC
Number of fiber cores: 4, 8, 12, 24

Connector type: MPO-female, MPO-male, FC, SC, LC, ST, MTRJ

Ferrule End-face: PC, UPC, APC

Core Type: SM, MM(OM1, OM2, OM3, OM4)

Cable Diameter(mm): 0.9,2, 3

Cable Length(M): L=1, 2, 3......

Pigtail length(M): L1=0.5, 0.6, 1.0

Cable type: RJ: Ribbon Cable, RB:Bare Ribbon Cable, RI: Mini Round Cable

MPO Interference index

Connector type	Testing items	Min	Max
MPO PC	ROC_X(abs)(mm)	500
	ROC_Y(abs)(mm)	50
	Angle_X(deg)	-0.2	0.2
	Angle_Y(deg)	-0.2	0.2
	Max.DH.All Fiber(nm)	-600	600
	Max.DH.Ave(nm)	-300	300
	Max.DH.Adj(nm)	-300	300
	Max. Core Dip(nm)	-300	300
	Fiber height(nm)	-300	300
	ROC_X(abs)(mm)	1000	3000
MPO APC	ROC_X(abs)(mm)	500
	ROC_Y(abs)(mm)	50
	Angle_X(deg)	-0.2	0.2
	Angle_Y(deg)	7.8	8.2
	Max.DH.All Fiber(nm)	-600	600
	Max.DH.Ave(nm)	-300	300
	Max.DH.Adj(nm)	-300	300
	Fiberheight(nm)

What is the MPO/MTP test requests?

a.Endface request:

400 X	Defect description		Allow quantity
Fiber(9um,50um,62.5um)	White scratches	≤3um	No limited
	Spot	≤2um	5 PCS
	Defect	/	No allowed
Cladding (62.5-125um)	White scratches	≤3um	No limited
		≤5um	1 PCS
	Black scratches	≤3um	2 PCS
	Black spot	≤2um	No limited
		≤5um	3 PCS
	Defect	≤2um	Around no limited
		≤15um	Total length is less than the side length 1/4
	Plastic ring	/	No limited

b.Performance:

MPO/MTP		SM standard ferrule	SM low loss ferrule	MM standard ferrule	MM low loss ferrule
IL Loss	Typical	0.35dB	0.20dB	0.35dB	0.20dB
	Max	0.75dB	0.35dB	0.65dB	0.35dB
RL		APC≥50dB		≥ 25dB	≥ 35dB
		PC ≥ 40dB
Repeatability		≤0.30dB(Plug more than 500 times)		0.30dB(Plug more than 1000 times)
Interchangeability		≤0.30dB(With either a matching connector)
Tensile strength		≤0.30dB(Maximum tension 66N)
Shock		≤0.30dB(10~55Hz)
Temperature Range		-40°C ~ +75°C

c.Interference indicators:

MPO/MTP Connector	Dimension 3D Test
Radius of Curvature	X ≥2000mm ,Y ≥50mm
Fiber Height	1000~4000 nm
Endface Angle	X ±0.3° ,Y ±0.3°
Core Dip	±300nm

d.Length Tolerance:

Length(M)	Tolerance
≤10	+ 10CM
10<L≤30	+ 15CM
>30	+ 10%

The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.

Type A Straight-Through MPO Trunk Cable:
Key-Up to Key-Down Adapters, 1 x A to B Duplex Patch Cable and 1 x A to A Duplex Patch Cable.

Single Mode 9 / 125 Fiber Optic Patch Cord Cable 12 Fiber Trunk MTP / MPO Pvc 0

Type B Cross MPO Trunk Cable:
Key-Up to Key-Up Adapters and 2 x A to A Duplex Patch Cable.

Single Mode 9 / 125 Fiber Optic Patch Cord Cable 12 Fiber Trunk MTP / MPO Pvc 1

Type C Cross Pair MPO Trunk Cable:
Key-Up to Key-Down Adapters and 2 x A to A Duplex Patch Cable.

Single Mode 9 / 125 Fiber Optic Patch Cord Cable 12 Fiber Trunk MTP / MPO Pvc 2

Using temperature

-40° ~ +80°

Application :

Testing equipment
FTTX+LAN
Optical fiber CATV
Optical communication system
Telecommunication

Pakcing :

We will pack it by OPP bag and carton box outside . in order to protect the goods are not damaged when delivery .

Delivery :

We can delivery it by air and by sea . it is according to your quantity and requirements .

Payment :

Payment term : T/T , L/C , PAYPAL / WESTERN UNION / MONEYGRAM . 30% deposit in advance . balance paid before delivery .

Price term : EXW , FOB , CIF , CFR . DOOR TO DOOR

More products :

We have optical patch cord , pigtail , adaptor , attenuator , distribution box , Quick Assmembly connector .etc . If you need more products or catalogue , you can feel free to contact us
