Aluminum MTP MPO Cassette Module with 12 Core Male Connector and LSZH Cable Material

Brand Name:	New Light
Model Number:	MPO -LC
MOQ:	1~10000
Price:	5~100
Packaging Details:	foam + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

CE / ISO / RoHS

Cassette Material:

Aluminum

Cassette Size:

117*99*35mm

MPO Connector Type:

12 Core Male

Max Capacity:

24 Cores

Suitable Adaptor:

Patch Cord Length:

0.5 Meter

Cable Diameter:

0.9mm

Cable Color:

12 Color ( Blue,orange ,green ,brown,grey ,white,red,etc)

Mode Type:

Multi Mode

Cable Type:

50/125 OM3

LC/SC Insertion Loss:

≤ 0.3dB

LC/SC Return Loss:

≥45dB

MPO Return Loss:

≥25dB

MPO Insertion Loss:

≤ 0.5dB

Wavelength:

850/1300nm

Cable Material:

OEM/ ODM:

Acceptable

Supply Ability:

2000 pcs per month

Highlight:

fiber optic cassette module

mtp casstte module

Product Description

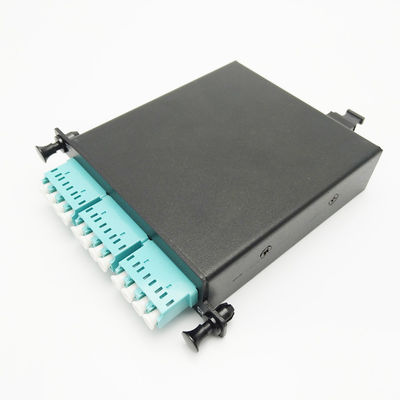

Aluminum MTP MPO Cassette Module LSZH Material With Multi Mode Aqua LC 4C Adaptor

Product Overview

MTP cassette module with multi mode aqua LC 4C adaptor and connector 12-core configuration.

Cassette Patch Cord Specifications

12 core MPO/male - LC multi mode 50/125 OM3-300 LSZH 0.9mm 0.5meter

The cassette can be snapped into any standard fiber optic patch panel including both rack mount and wall mount. A 1U distribution box holds four of these cassettes which could potentially contain 48 active LC connections using only four MTP brand cables. Clean up the clutter and increase your possibilities using MTP brand cassettes.

What's Included

One MTP brand adaptor in back

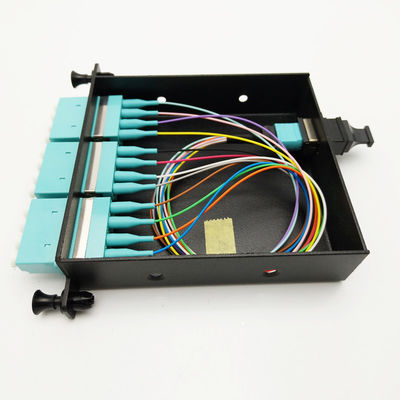

Fan out assembly inside the cassette
4 duplex LC connections in the front
Cassette module body can be configured to multiple manufacturers fit and form factor

Technical Specifications

Parameter	Specification
Product Name	MTP cassette module with multi mode aqua LC 4C adaptor and connector 12core
Cassette Size	1179935mm
Mode Type	Multi mode
Cable Count	12 core
Core Type	OM3
MPO Connector	12 fiber male
Cable Color	12 color
Cable Diameter	0.9mm
Patch Cord Length	0.5 meter (can be customized according to your request)
Outer Jacket Material	LSZH (can be PVC or LSZH)
LC/SC Insertion Loss	≤ 0.3dB
LC/SC Return Loss	≥45 dB
Wave Length	850/1300nm
Core Type	50/125um
LC/SC Connector Color	Aqua
LC/SC Ferrule Material	Ceramic
MPO Ferrule Material	Plastic
MPO Insertion Loss	≤0.5dB
MPO Return Loss	≥25dB
Operating Temperature	-40~ +85℃
OEM/ODM	Acceptable
Warranty	3 years after delivery
Delivery Time	2-15 working days (according to your quantity)

Due to the space of the module being small, the length of the patch cord inside the module is 0.3-0.5 meter.

Important Note

This type of MPO cassette module is designed for our 1U distribution box. Please confirm the size of the patch panel with us before ordering, otherwise it may not match your 1U patch panel.

Available in 12 core / 24 core configurations, with patch cord inside customizable according to your requirements.

How to Order

Connector type: MPO-LC
Mode type: Single mode / Multi mode
Cable diameter: 0.9 mm
Coating material: PVC / LSZH
Fiber count: 12 core / 24 core
Cable type: G652D / G657A1 / G657A2 / G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 / OM5

Contact for Orders

WhatsApp: +8613534063703
