12core 24core MPO Cassette Module with High-density Modular Design and Pre-terminated Cassette for Fiber Optic Patch Panels

Brand Name:	New light
Model Number:	6/12 port MPO
MOQ:	1~10000
Price:	5~100
Packaging Details:	opp bag+Carton box
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS ;ISO9001

Application:

FTTH FTTB FTTX Network,Telecommunication,Data Center Network,MTP MPO Network

Fiber Type:

Singlemode Or Multimode

Connector:

MPO/MTP

Connector Type:

MPO/LC/SC/FC/ST/MU,MPO,MTP,MPO-MPO/MPO-LC

Operating Temperature:

-40℃ ~ +80℃,40~+85

Product Name:

Optical Fiber MPO Cassette

Insertion Loss:

Standard Loss And Elite

Type:

Single-mode/Multi-mode

Warranty:

2 Years

Material:

Plastics And Aluminum Alloy

Color:

Black

Supply Ability:

10000 per day

Highlight:

mtp casstte module

mpo cassette patch panel

Product Description

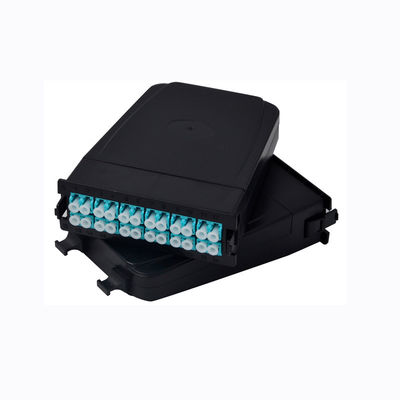

12-Core & 24-Core MPO/MTP Module Cassettes

New Light MPO/MTP module cassettes are designed to convert 12 or 24-fiber MPO/MTP connectors from pre-assembled terminal ends to simplex or duplex standard connectors. These cassettes enable direct connection to equipment, frames, or client endpoints using simplex or duplex patch cords.

Key Features

Constructed from high-quality engineering plastics and aluminum alloy
Easily upgradeable MPO faceplate
Front ports with clear numbering for easy identification
Quick installation with flexible configuration and easy management

Our FHD High Density Series offers versatile solutions in multiple sizes (1U/2U/4U) for building backbones, data centers, and enterprise applications, supporting up to 96 LC fibers in 1U configurations.

Product Specifications

High-density modular design supporting up to 96 fibers in 1U space
Pre-terminated cassettes for enhanced reliability and rapid deployment
High-performance connectors ensuring low loss optical budget
Plug-and-play modules for fast installation of multiple fiber links
Wide range of performance and polarity configurations available
Corning fiber compliant with Telcordia, EIA/TIA, and IEC standards

Watch Product Overview Video 12core 24core MPO Cassette Module with High-density Modular Design and Pre-terminated Cassette for Fiber Optic Patch Panels 2

Technical Specifications

Fiber Count	12 / 24	Fiber Mode	OM3 50/125 μm
Front Connector Type	12 LC UPC Duplex	Rear Connector Type	1x MPO UPC Male (pinned)
MPO Adapter	Key up to Key down	Glass Fiber	Corning ClearCurve®
Insertion Loss	MPO≤0.35 dB, LC≤0.2 dB	Return Loss	MPO≥20 dB, LC≥30 dB
Operating Temperature	0°C to 70°C	Storage Temperature	-40°C to 75°C
Dimensions (HxWxD)	1.38''x4.29''x4.64'' (35x109x118 mm)	Application	Matching for Type AF Cassette

Performance Properties

Front Connector	LC/SC duplex
Material of Sleeve	Zirconia Ceramic
Insertion Loss	Multimode: UPC ≤0.2dB Single mode: APC ≤0.3dB UPC ≤0.2dB
Return Loss	Multimode: UPC ≥30dB Single mode: APC ≥60dB UPC ≥50dB

Polarity Configuration

Ensuring proper transmitter-to-receiver matching is critical in any installation. Our solutions provide intelligent connectivity management to optimize your network performance.

Contact Us: WhatsApp 008613534063703
