8-1x2 Mini Type PLC Optical Splitter with Stainless Steel Tube for Fiber Optic Networks

Brand Name:	New Light
Model Number:	1U Rack Type
MOQ:	10
Price:	1~30
Packaging Details:	export packing
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Brand Name:

New Light

Connector Type:

Without

Mode Type:

Single Moudle

OEM / ODM:

Acceptable

Tube Materials:

Stainless Steel

Cable Color:

8 Colors

Cable Size:

250um Or 900um

Certificate:

CE , ISO , RoHS

Delivery Time:

2-7 Working Days After Received Deposit

Payment Term:

T/T , 30% Deposit In Advance

Supply Ability:

1000000

Highlight:

single mode fiber splitter

fiber optic cable splitter

Product Description

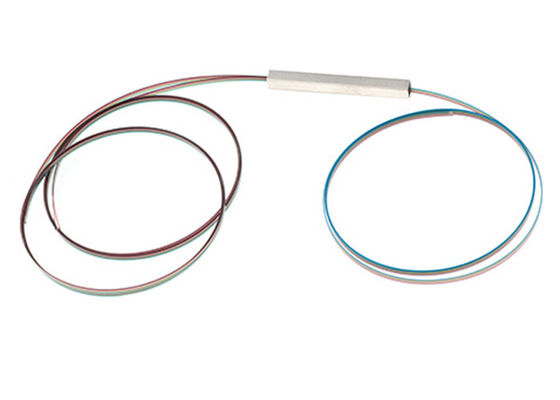

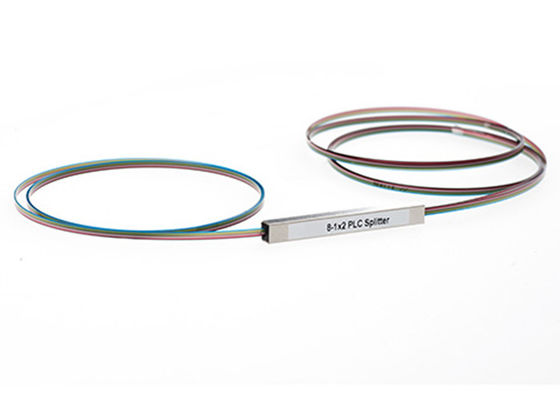

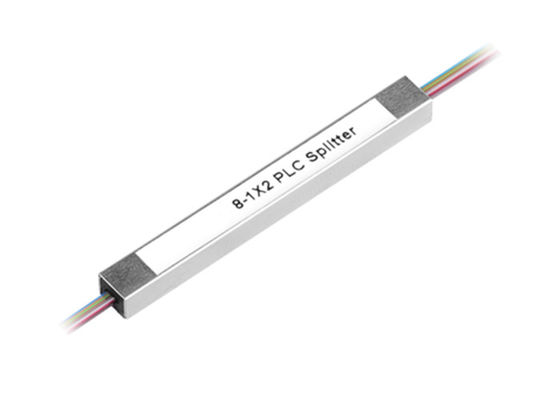

8-Port 1x2 PLC Optical Splitter Device

The 8-1x2 PLC Optical Splitter is a compact, high-performance fiber optic power distribution device based on quartz substrate material and planar optical waveguide technology. Designed for passive optical network (PON) systems, it enables simultaneous operation of multiple 1x2 PLC splitters without interference, making it one of the most critical passive components in modern optical networks.

Applications

Digital, hybrid and AM-Video systems
LAN, WAN and Metro Networks
CATV systems
Other fiber optic system applications

Key Features

Premium quality raw materials
Multiple configuration options with custom solutions
Comprehensive traceability and quality assurance
Broad operating wavelength range: 1260-1650nm
Exceptional reliability and long-term stability

Technical Specifications

Parameter	Unit	Specification
Operating Wavelength	nm	1260~1650
Fiber Type	/	G652D/G657A1/G657A2
Tube Type	um	250um Ribbon fiber or 900um loose tube
Channel Type	/	4-1x2, 6-1x2, 8-1x2
Insertion Loss	dB	≤4.0
Uniformity	dB	≤0.6
PDL	dB	≤0.2
TDL	dB	≤0.5
Return Loss	dB	≥55
Directionality	dB	≥55
Working Power	mW	≤500
Operating Temperature	℃	-40~+85
Storage Temperature	℃	-40~+85
Package Size (LxWxH)	mm	45x5x4(250um) or 70x12x4(900um)

* Specifications shown are without connector

Product Design

The N-1x2 PLC optical splitter is available in various split configurations and package types, with customization options to meet specific customer requirements.

Network Integration

The N-1x2 PLC optical splitter enables multiple 1x2 splitters to operate on a single chip without mutual interference, featuring high-density integration ideal for space-constrained applications in passive optical network (PON) systems.

Packaging

Products are securely packaged using OPP bags inside carton boxes to ensure protection during transit and delivery.

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What is your minimum order quantity (MOQ)?

MOQ can be 1 piece, though we recommend larger quantities for better pricing as single-unit orders incur higher costs.

What are your pricing terms?

Pricing varies by quantity. We provide competitive quotes based on your order volume, with EXW or CFR pricing preferred for optimal freight solutions.

How is your product quality?

We adhere to IEC and European standards in near dust-free environments using imported production and quality control equipment. All products undergo 100% testing before shipment.

What is your production lead time?

With three specialized factories in China, we maintain short lead times - typically 2-3 working days for 5,000 patch cords, with many standard products available from stock.

What warranty do you provide?

We offer a 2-year warranty for patch cords covering non-artificial damage. For artificial damage, we provide free repairs with customer responsibility for freight costs.

Do you offer OEM/ODM services?

Yes, we support full OEM/ODM capabilities and can sign confidentiality agreements to protect your designs.

Can I request samples?

Free samples are available for adaptors, attenuators, patch cords, and pigtails with customer-paid freight. For higher-value products, sample charges apply but are refundable with subsequent orders.
