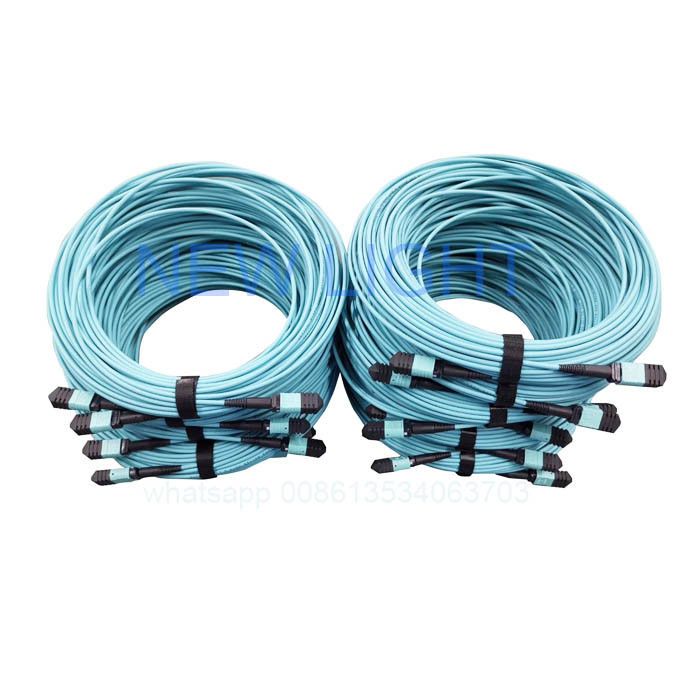

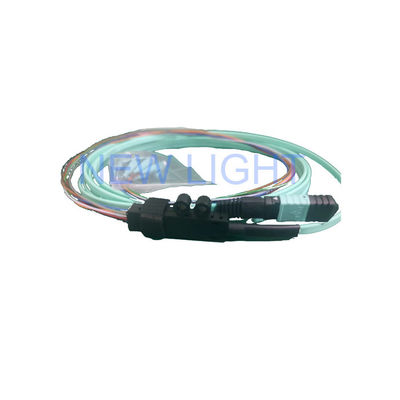

OM4 12 Core LSZH MPO MTP Cable with MPO Fiber Connector for High-Density Data Centers

Brand Name:	New Light
Model Number:	MPO / MTP - MPO / MTP
MOQ:	1~10000
Price:	6~15
Packaging Details:	OPP bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

CE , ISO , RoHS

Connector Type:

MPO / MTP TO MPO / MTP

Material:

LSZH, OFNP Or OFNR

Mode Type:

Core Type:

12 Core

Cable Color:

Magneta

Length:

Can Be Customized According To Your Requirements

Certificate:

CE , ISO , RoHS

Delivery Time:

2-7 Working Days After Received Deposit

Production Ability:

500 Pcs / Day

Payment Term:

T/T , 30% Deposit In Advance

Connector:

MPO,MTP

Supply Ability:

500 pcs per day

Highlight:

mpo to mpo cable

mpo fanout cable

Product Description

MPO Fiber Connector MTP Patch Cable with MPO 24 Cable Fiber Connector Type

New Light MTP trunk cable provides a cost-effective alternative to time-consuming field termination, designed for high-density fiber patching in data centers requiring space optimization and simplified cable management.

Note: US Conec MTP connectors are fully compliant with MPO standards, delivering superior performance compared to generic MPO connectors.

Specifications: 0.35dB IL; MTP Female to MTP Female connector; 3.0mm LSZH bunch cable designed for 40G LR4 PSM, 40G QSFP+ PLR4 optics direct connection and high-density data center applications.

MPO MTP Cable Applications

Single-mode or Multi-mode options available
PC (plane) or APC (8 degree) configurations
Various insertion loss indexes and colors available
Stable performance with PIN fixed positioning
Plug type connector with locking structure
High density design for efficient wiring and management
Compliant with Telcordia GR-1435-CORE and RoHS standards

MPO MTP Cable Features

US Conec MTP connector, Senko MPO Plus premium connector
OS2, OM3, OM4 fiber grades (OM1 and OM2 available)
0.35dB Elite low loss MTP/MPO connector with standard 0.6/0.75dB versions
Factory terminated and tested
Easy migration from 10GbE to 40GbE or 100GbE
Optional pulling eyes for fiber end protection during installation

MPO MTP Cable Technical Parameters

Parameter	Specifications
Connector	MPO/MTP (Female or Male)
Operation Temperature	-40°C to +80°C
Storage Temperature	-40°C to +85°C
Insertion Loss	Single-mode: ≤ 0.75dB (standard), ≤0.35dB (typical); Multi-mode: ≤ 0.50dB (standard), ≤0.35dB (typical)
Return Loss	Single-mode: ≥60dB; Multi-mode: ≥35dB
MPO End Type	Male: with guide pin; Female: without guide pin
Fiber Count	8, 12 & 24 fiber
Connector Types	MPO-female, MPO-male, FC, SC, ST, MU, LC, E2000
Fiber Modes	Single-mode (G652, G655, G657), Multi-mode (50, 62.5, OM2, OM3, OM4)
Fiber Cable Type	250um ribbon fiber, ribbon cable, bundle fiber optic cable

Three polarity methods (Type A, Type B and Type C) ensure proper bi-directional allocation for optimal performance.

Packaging

Products are packaged in OPP bags and carton boxes to ensure protection during delivery and transportation.

Contact Information

WHATSAPP: +8613534063703

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What is your minimum order quantity (MOQ)?

MOQ can be 1 piece, though larger quantities receive more competitive pricing.

How is pricing determined?

Pricing is based on quantity - we provide our best pricing upon receiving your quantity requirements.

Can you provide FOB pricing?

Yes, though EXW or CFR pricing is often more suitable for smaller shipments. We offer competitive logistics solutions for all order sizes.

How is your quality assurance?

We produce according to IEC and European standards in near dust-free workshops using imported production and quality control equipment. All products undergo 100% testing before delivery.

What is your lead time?

We maintain three factories in China with rapid production capabilities. Standard patch cords can be produced in 2-3 working days for 5000 pieces, with many regular products available from stock.

What is your warranty policy?

Patch cords include a 2-year warranty covering non-artificial damage. We provide free repair for artificial damage with customer responsibility for freight costs.

What packaging do you use?

We use international export packaging and can customize with your logo upon request.

Do you offer OEM/ODM services?

Yes, we support OEM/ODM manufacturing and can sign confidentiality agreements.

Can I request samples?

Free samples are available for adaptors, attenuators, patch cords, and pigtails with customer responsibility for freight. Sample charges for higher-value products are refundable with subsequent orders.

How do I place an order?

Contact us with product specifications and quantity. We'll provide pricing and lead time, then issue a proforma invoice upon acceptance. Production begins after payment confirmation.

What are your payment terms?

We accept T/T, Western Union, Paypal, and MoneyGram. For larger orders, we offer 50% deposit with balance due before delivery.
