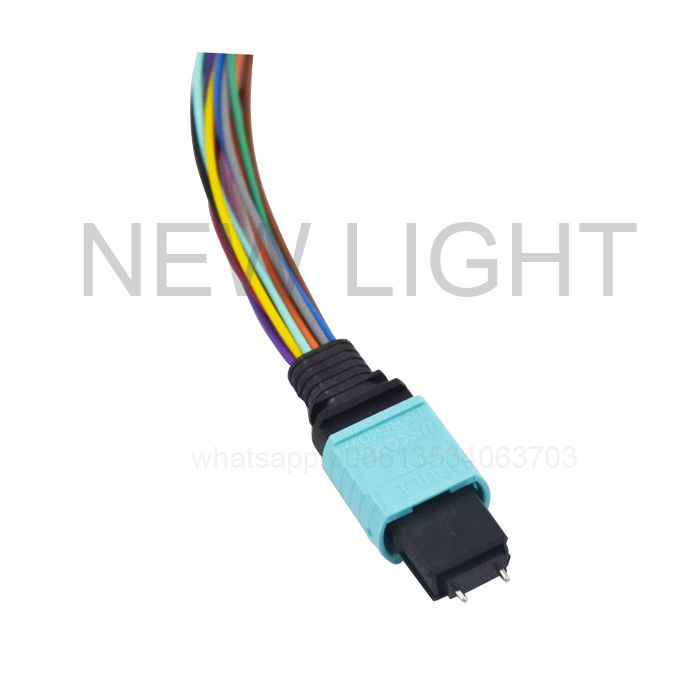

OEM MPO MTP Cable OM3 12 Core 10Gb Multimode 50/125 Fiber Optic Patch Cable

Brand Name:	New Light
Model Number:	MPO / MTP - MPO / MTP
MOQ:	1~10000
Price:	6~15
Packaging Details:	OPP bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

CE , ISO , RoHS

Name:

MPO MTP Cable

Material:

LSZH, OFNP Or OFNR

Mode Type:

Core Type:

12 Core

Delivery Time:

2-7 Working Days After Received Deposit

Production Ability:

500 Pcs / Day

Payment Term:

T/T , 30% Deposit In Advance

Connector:

MPO,MTP

Color:

Aqua,orange,yellow,Yellow/ Red/ Aqua

Supply Ability:

500 pcs per day

Highlight:

mpo fiber cable

mpo to mpo cable

Product Description

OEM MPO MTP Cable OM3 Straight 10Gb Multimode 50/125 Fiber Optic Patch Cable

MTP/MPO 12-Fiber OM3 (Straight) 10Gb Multimode 50/125 Fiber Optic Patch Cable

Product Description

Multi-mode optical fiber is designed for short-distance communication applications, such as within buildings or campus environments. These cables support data rates from 10 Mbit/s to 10 Gbit/s over distances up to 600 meters. The larger core diameter enables multiple light modes but limits transmission distance due to modal dispersion.

Multi-mode fiber equipment is more cost-effective than single-mode alternatives. Typical performance specifications include 100 Mbit/s up to 2 km, 1 Gbit/s up to 1000 m, and 10 Gbit/s up to 550 m.

MPO MTP Cable Applications

Multimode (OM3/OM4 50/125) Applications

Direct connection between two QSFP+ transceivers for 40GBase-SR4
Direct connection between two QSFP28 transceivers for 100GBase-SR4
Connection to MPO trunk cables

Singlemode (OS1/OS2 9/125) Applications

Direct connection between two QSFP+ PLR4 transceivers for 40G Ethernet
Direct connection between two QSFP28 PLR4 transceivers for 100G Ethernet
Connection to MPO trunk cables

Both multimode and singlemode patch cords typically feature polarity B and female connectors.

MPO MTP Cable Overview

40G parallel networks are created using MPO trunk cables and MPO patch cables connected via MPO adapter modules. Direct connections between 40G or 100G ports can also be established using MPO patch cables.

These cables typically use MPO 12-fiber connectors and 12-fiber cable. While SR4 40G or 100G Ethernet only uses 8 fibers, the 12-fiber design offers greater flexibility for use alongside duplex 10G networking with minimal cost difference.

MPO MTP Cable Features

US Conec MTP connector, Senko MPO Plus premium connector
OS2, OM3, OM4 fiber grades (OM1 and OM2 available)
0.35dB Elite low loss MTP/MPO connector plus standard 0.6/0.75dB versions
Factory terminated and tested
Easy migration from 10GbE to 40GbE or 100GbE
Optional pulling eyes for fiber protection during installation

Technical Parameters

Item	Technical Parameters
Connector	MPO/MTP (F or M)
Operation Temperature	-40°C ~ +80°C
Storage Temperature	-40°C ~ +85°C
Insertion Loss	SM: ≤ 0.75dB (standard), ≤0.35dB (typical); MM: ≤ 0.50dB (standard), ≤0.35dB (typical)
Return Loss	SM: ≥60dB; MM: ≥35dB
MPO End Type	Male: with guide pin; Female: without guide pin
Fiber Count	8, 12 & 24 fiber
Connector Type (Other End)	MPO-female, MPO-male, FC, SC, ST, MU, LC, E2000
Fiber Mode	Single-mode (G652,G655,G657), multi-mode (50, 62.5, OM2, OM3, OM4)
Fiber Cable Type	250um ribbon fiber, ribbon cable, bundle fiber optic cable

Polarity Methods

Three polarity methods (Type A, Type B and Type C) ensure proper bi-directional allocation.

Packaging

Products are packaged in OPP bags and carton boxes to ensure protection during delivery.

Contact: WHATSAPP +8613534063703

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What's your MOQ?

MOQ can be 1 piece, but we recommend larger quantities for better pricing.

What's the price?

Pricing depends on quantity. We offer competitive pricing for larger orders.

Can you quote FOB price?

Yes, but due to product size, air delivery is typically recommended. EXW or CFR pricing is often preferred.

How is your quality?

We follow IEC and European standards with imported production equipment. All products are 100% tested before delivery.

What's your lead time?

2-3 working days for 5000 pieces. Regular products are in stock for urgent orders.

What's your warranty?

2-year warranty for patch cords covering non-artificial damage.

What's your packing?

International export packaging with optional logo printing available.

Can you do OEM/ODM?

Yes, we accept OEM/ODM orders and can sign confidentiality agreements.

Can I have a sample?

Free samples available for adaptors, attenuators, patch cords, and pigtails with freight prepaid. Sample charges apply for high-value products.

How can I order?

Send requirements, receive quotation, confirm order, make payment, and we arrange production and delivery.

What are your payment terms?

T/T, Western Union, Paypal, MoneyGram. For large orders: 50% deposit, 50% balance before delivery.
