Product Details:
|
| Name: | SFP LC Transceiver | Wavelength: | 850nm |
|---|---|---|---|
| Mode Type: | Multimode | Transmission Distance: | 300m |
| Data Transfer Rate: | 10G | Connector: | Duplex LC |
| High Light: | gigabit ethernet transceiver,single mode fiber transceiver |
||

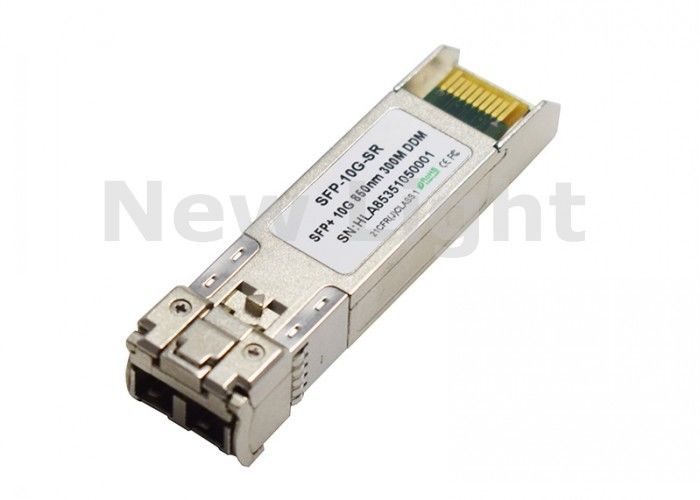

Multimode Dual LC 10G 850nm 300m SR SFP+ Transceiver SFP-10G-SR for 10G Fiber Channel
Description:
SFP+ SR is specifically designed for the high performance integrated duplex data transmission over multi mode optical fiber.
This transceiver module is compliant with the Small Form-factor Pluggable Plus (SFP+) Multisource Agreement (SFF-8431 Rev4.1). This transceiver type is specifically optimized for transport of serial data at up to 10.3125 Gbps, with link characteristics complied with 10-Gigabit Ethernet 10GBASE-SR/SW base IEEE 802.3ae and 10G Fibre Channel.
Features:
850nm VCSEL Transmitter
Data transfer rate: 10.3Gbps
Distance up to 300m
Single 3.3V Power supply and TTL Logic Interface
Duplex LC Connector
Compliant with MSA SFF-8431, IEEE 802.3ae
Power Dissipation: SFP+< 1W
Digital Diagnostic Monitoring Function
Operating Temperature: 0-70 Degree
Applications:
10GBASE-SW/SR
10G Fiber Channel
Other Optical Link
