FTTH SC Fiber Optic Fast Connector Single Mode Plastic Material Field Installable

Brand Name:	New Light
MOQ:	100
Price:	0.26~0.7
Packaging Details:	10pcs per pack
Payment Terms:	T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Color:

Blue,Black

Material:

Plastic

Connector:

Model:

Singlemode

Polish:

UPC

Name:

SC Quick Adapter

Supply Ability:

10000 pcs/month

Highlight:

fiber optic cable connectors

fast connector fiber optic

Product Description

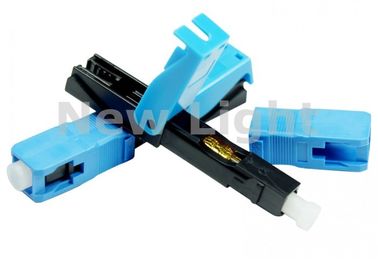

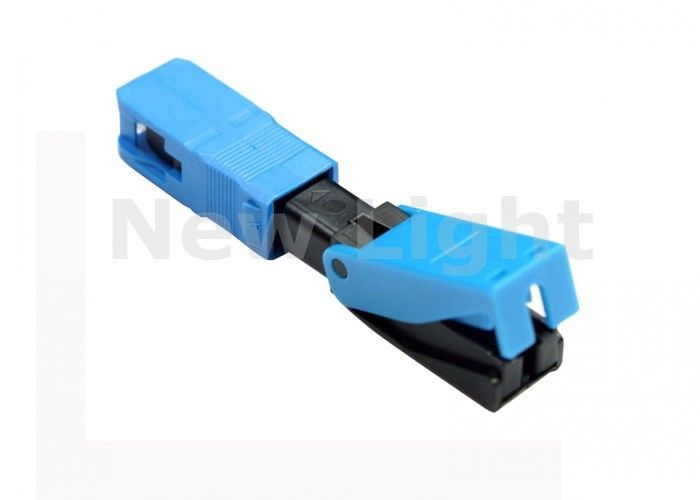

FTTH SC Single Mode Fiber Connectors , Field Installable SC UPC Fiber Connector

FTTH SC UPC Optical fiber covered wire SC UPC quick connector for Optical test equipment use

Feature:

1. FTTH project usable
2. Field installable
3. Insert loss less than 0.15dB
4. Metal V-shape cavity work well in high and low temperature
5. Installation less than 1 minutes
6. Reliable and superior optical performance
7. Cable Tensile test complies with Telcordia GR-326-COR

Application:

1. Distribution frames
2. Maintenance or emergency restoration of fiber networks
3. Patch panels
4. FTTH Outlets
5. Field word

Specification:

ITEM	Technical Parameters
Applicable for	Drop cable / Indoor cable 0.9mm Tight Buffer Fiber, 2.0mm, 3.0mm Drop Cable
Optical fiber diameter	SM(9/125), MM(50/125, 62.5/125) 125μm ( 657A & 657B )
Tight buffer diameter	250μm
Fiber mode	Single mode
Operation time	About 100s(no fiber cut)
Insert loss	≤ 0.3dB(1310nm & 1550nm)
Return loss	> 50db(PC), > 55db(UPC), > 65db(APC)
Fastening strength of naked fiber	>5 N
Fastening strength of naked fiber holder	>10 N
Tensile strength	>50 N
Using temperature	-40~+75°C
On-line tensile strength (20 N)	IL ≤ 0.5dB RL ≤ 5dB
Mechanical durability (500 times)	IL ≤ 0.5dB RL ≤ 5dB
Drop-off test (drop-off height 4m,once per direction, totally 3 times)	IL ≤ 0.
