    Product Details:

    Place of Origin: Shenzhen , China
    Brand Name: New Light
    Certification: CE , ISO , RoHS
    Model Number: SC / SC / ST / LC

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pcs
    Packaging Details: standard packing
    Contact Now
    Detailed Product Description
    Type: Quick Assembly Connector Application: Field Assembly
    Length: 55/56//58/60 MM Installation Method: Pre-embedded
    Delivery Time: 2-7 Working Days After Received Payment Certificates: CE , ISO, RoHS
    Insert Loss: ≤0.3dB Connector Type: SC /FC
    Tensile Strength: >90N Suitable For Cable: 0.9 / 2.0 / 3.0mm
    Storage Temperature: -40℃ - +85℃ Delivery Method: DHL, TNT, UPS , EXPRESS ( As You Like )




    SC APC quick fiber optic connectors optical patch cord connectors






    Product Description

    Fiber Fast Connector is used for field assembled optical fiber connector ,widely used in fiber to the home (FTTH) access optical networks,to assemble with drop cable quickly.

    Pre - Embedded Installation Quick Assembly Connector For Optical Patch Cord
    Application

    1.Used to open the FTTH fiber terminal end.
    2.In the box, cabinet, such as wiring into the box.
    3.Off the back of the accidents such as fiber, maintenance.
    4.LAN, wan, data and video transmission.
    5.The construction of the fiber end user access and maintenance.
    6.Optical fiber access of mobile base station.


    Technical Specification



    Item Parameter
    Cable Scope 3.0 x 2.0 mm Bow-type Drop Cable
    Fiber Diameter 125μm ( 652 & 657 )
    Coating Diameter 250μm
    Mode SM
    Operation Time about 15s(exclude fiber presetting)
    Insertion Loss ≤ 0.3dB(1310nm & 1550nm)
    Return Loss ≤ 55dB
    Success Rate >98%
    Reusable Times >10 times
    Tensile Strength >5 N
    Tighten Strength of Coating >10 N
    Temperature -40~+85°C
    On-line Tensile Strength Test (20 N) IL ≤ 0.3dB
    Mechanical Durability(500 times) IL ≤ 0.3dB
    Drop Test(4m concrete floor, once each direction, three times total) IL ≤ 0.3dB

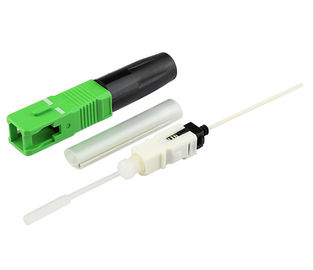

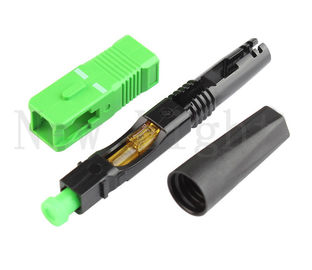

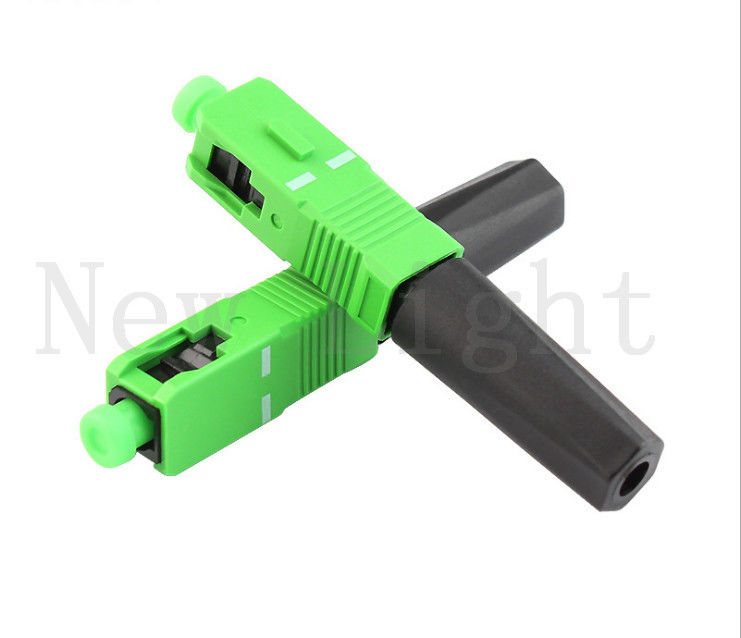

    Picture detail of SC Quick Assembly Connector

    Pre - Embedded Installation Quick Assembly Connector For Optical Patch Cord


    Pre - Embedded Installation Quick Assembly Connector For Optical Patch CordPre - Embedded Installation Quick Assembly Connector For Optical Patch Cord

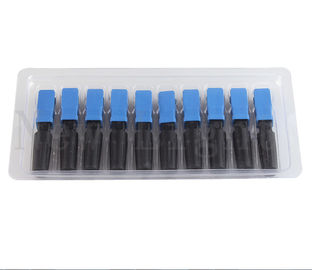

    Packing :

    Pre - Embedded Installation Quick Assembly Connector For Optical Patch Cord


    delivery and payment :


    Pre - Embedded Installation Quick Assembly Connector For Optical Patch Cord
