FC / UPC Quick Assembly Connector 250μM Coating Diameter Easy On - Site Installation

Brand Name:	New Light
Model Number:	FC / PC
MOQ:	100
Price:	0.26~0.7
Packaging Details:	standard packing
Payment Terms:	L/C, T/T, Western Union, MoneyGram , Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE , ISO , RoHS

Type:

Quick Assembly Connector

Application:

Field Assembly

Insert Loss:

≤0.3dB

Storage Temperature:

-40℃ - +85℃

Model Number:

FC /PC

Tensile Strength:

Suitable For Cable:

0.9 / 2.0 / 3.0

Length:

50 / 55/56/58/60mm

Delivery Time:

2-7 Working Days After Received Payment

Certificate:

CE , ISO, RoHS

Payment Term:

30% Deposit , Balance Paid Before Delivery

Highlight:

fiber optic cable connectors

multimode fiber connectors

Product Description

Description :

FC / UPC fiber optic connectors Quick feild assembly connector for patch cable

Fiber Fast Connector is used for field assembled optical fiber connector ,widely used in fiber to the home (FTTH) access optical networks,to assemble with drop cable quickly.

Technical Parameters

The field assembly optical connector is designed to simplify the connection without fusion splicer. This connector is quick assembly which requires only normal fiber preparation tools like cable stripper and fiber cleaver. The connector adopts Fiber Pre-Embedded (FPE) technique with superior ceramic ferrule.

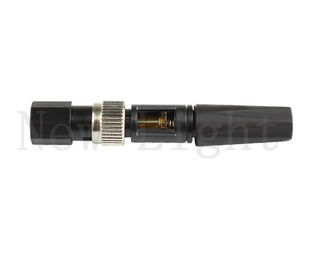

FC / UPC Quick Assembly Connector 250μM Coating Diameter Easy On - Site Installation 0

Item	Paramete
Cable Scope	3.0 x 2.0 mm Bow-type Drop Cable
Fiber Diameter	125μm ( 652 & 657 )
Coating Diameter	250μm
Mode	FC
Operation Time	about 15s(exclude fiber presetting)
Insertion Loss	≤ 0.25dB(1310nm & 1550nm)
Return Loss	≤ -45dB
Success Rate	>98%
Reusable Times	>10 times
Tensile Strength	>5 N
Tighten Strength of Naked Fiber	>10 N
Teperature	-40~+85°C
On-line Tensile Strength Test (20 N)	IL ≤ 0.3dB
Mechanical Durability(500 times)	IL ≤ 0.3dB
Drop Test(4m concrete floor, once each direction, three times total)	IL ≤ 0.3dB

Fiture :

High performance

Minimum tooling requirements

Easy on-site installation

Pre-embed fiber

Re-usable in the field

No epoxy or polishing required

Low insertion loss

High return loss

Low cost

Reliability

Low environmental sensitivity

Ease of use

Application: Datacom telecom measurement equipment single-mode lasers ONU FTTH projects

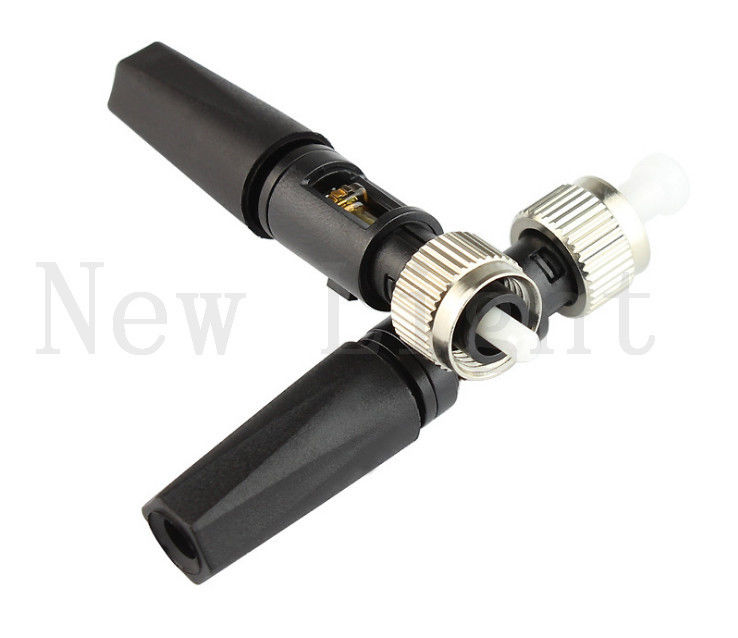

FC / UPC Quick Assembly Connector 250μM Coating Diameter Easy On - Site Installation 1

Packing

FC / UPC Quick Assembly Connector 250μM Coating Diameter Easy On - Site Installation 2

FC / UPC Quick Assembly Connector 250μM Coating Diameter Easy On - Site Installation 3

Company profile

FC / UPC Quick Assembly Connector 250μM Coating Diameter Easy On - Site Installation 4

FC / UPC Quick Assembly Connector 250μM Coating Diameter Easy On - Site Installation 5

Quality control :

FC / UPC Quick Assembly Connector 250μM Coating Diameter Easy On - Site Installation 6

Delivery and payment

More products :

FC / UPC Quick Assembly Connector 250μM Coating Diameter Easy On - Site Installation 8

FC / UPC Quick Assembly Connector 250μM Coating Diameter Easy On - Site Installation 9

Any questions , you can feel free to cotnact us by the information as below :

Michelle zhang

cell/WhatsApp : +008615800028772

skype : michellezhangll@163.com

mail : sales01@newlightfiber.com

Wechat : z15800028772

FC / UPC Quick Assembly Connector 250μM Coating Diameter Easy On - Site Installation 10
