Product Details:
|
| Brand Name: | New Light | Fiber Type: | 0.9 /2.0 / 3.0 Mm |
|---|---|---|---|
| Connector Type: | LC / FC / SC / ST | Core Type: | 1x2/ 1x4 / 1x8/ 1x16 / 1x32 / 1x64 |
| Operating Wave: | 1260-1650 | Mode Type: | Single Mode |
| OEM / ODM: | Acceptable | Fiber Length: | As Your Requirement |
| Warranty: | 5 Years | Delivery Time: | 2-10 Working Days After Receive Payment |
| Payment: | T/T , L/C , Paypal , Westen Union , Money Gram | ||
| High Light: | fiber optic plc splitter,fiber optic cable splitter |
||

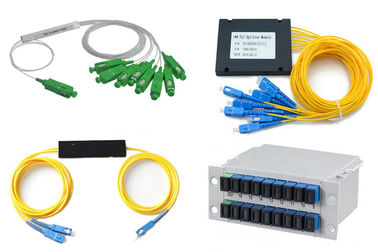

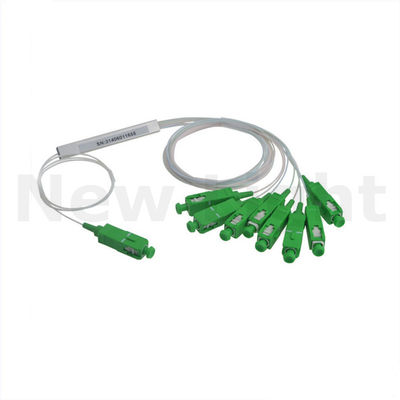

1x2 / 1x4 / 1x8 / 1x16 / 1x32 / 1x64 SC APC optical spliter fiber optic splitter
Planar lightwave circuit splitter (PLC Splitter) is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON(EPON/GPON) networks to realize optical signal power splitting.
Application
* Telecommunication System
* Testing Equipment
* CATV System
* Long-haul Telecommunication
* LAN System
Feature
PC,UPC,APC polishing available
High returen loss
Low insertion loss
High reliability and stablity
Available foe singlemode/multimode and simplex/duplex
0.9mm,2.0mm,3.0mm diameter cable available
Technique Parameter
Compliant with : RoHS/ISO-9001/IEC-61754/Telcordia-GR-326-CORE
| Fiber Mode | SM | MM | ||||
| Connector Type | FC,SC | ST,LC | FC,SC,ST,LC | |||
| Diameter | Φ0.9,Φ2.0,Φ3.0 | |||||
| End-face Finishing | PC | UPC | APC | PC | UPC | APC |
| Insertion Loss(dB) | ≤0.20 | ≤0.30 | ≤0.20 | ≤0.30 | ||
| Rutern Loss(dB) | ≥45 | ≥50 | ≥60 | ≥45 | ≥50 | ≥35 |
| Exchangeability(dB) | ≤0.20 | |||||
| Repeatability(dB) | ≤0.10 | |||||
| Operating Temperature(℃) | —40~+75 | |||||
| Storage Temperature(℃) | —40~+85 | |||||
| Operating Wavelength(nm) | 1310, 1550 | |||||
More products
You may like
Company Introduction
New Light Optics Technology Limited specialized in the Optical communication products R & D, manufacture,sales and service as high-tech company.Our factory was established in 2011 and with 6 years OEM and manufacture experience for customer all over the world.
Our product line include: Patch Cord/Pigtails,Patch Cord Cables,MTP/MPO Patch Cord,Fiber Optical adapter, attenuator, Fiber optical connector... Etc. Our products widely used in Telecommunication,Fiber optical CATV, digital internet fiber transmit,data base station,etc.
Company have high tech technology, professional R & D team, advanced production equipment,sophisticate skill engineers. And high quality control system,our products offer to customers to USA,European,Brazil,Middle East,and Asia more than 60 countries and areas.
Products with high reputation and feedback from all customers!
Please contact us if any we can support and cooperate together!
