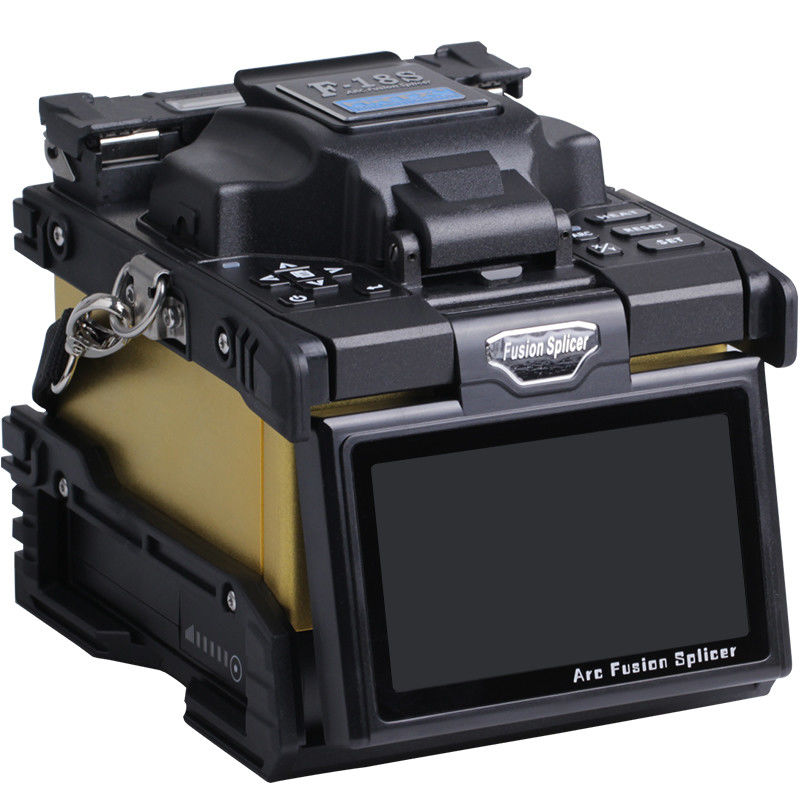

Anti Shock FTTx Fusion Splicer / Fiber Optic Cable Single Fibre Splicing Machine

Anti Shock FTTx Fusion Splicer / Fiber Optic Cable Single Fibre Splicing Machine

    • Anti Shock FTTx Fusion Splicer / Fiber Optic Cable Single Fibre Splicing Machine
    • Anti Shock FTTx Fusion Splicer / Fiber Optic Cable Single Fibre Splicing Machine
    • Anti Shock FTTx Fusion Splicer / Fiber Optic Cable Single Fibre Splicing Machine
    • Anti Shock FTTx Fusion Splicer / Fiber Optic Cable Single Fibre Splicing Machine
    • Anti Shock FTTx Fusion Splicer / Fiber Optic Cable Single Fibre Splicing Machine
  • Anti Shock FTTx Fusion Splicer / Fiber Optic Cable Single Fibre Splicing Machine

    Product Details:

    Place of Origin: Shenzhen,China
    Brand Name: domectic
    Certification: CE,ISO
    Model Number: F-18S

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: can be negotiated
    Packaging Details: carton box
    Delivery Time: 2-10 working days after received payment
    Payment Terms: T/T, Western Union, MoneyGram, paypal
    Supply Ability: 100 pcs per month
    Contact Now
    Detailed Product Description
    Product Name: F-18S Handheld FTTx Fusion Auto Splicer Fiber Optic Cable Single Fibre Splicing Machine Operation Mode: Manual, Automatic
    Typical Splicing Time: 6 Seconds Diameter Of Coating: 160 – 900μm

    F-18S Handheld FTTx Fusion Splicer Fiber Optic Cable Single Fibre Splicing Machine



    Anti-dust Buttons Abrasion-resistant coating ,

    Automatic inductive heater Fast heating 18 seconds



    More stable holder clamps More precise V groove design



    Application:

    FTTx FTTH Fiber cable construction

    Fiber cabling repair

    Fiber line maintenance



    Features

    ● 6s for splicing and 18s for heating

    ● Core to core alignment technology

    ● Anti-shock, Anti-dust and waterproof

    ● Automatic ARC value & position calibration

    ● USB port for software updating and data records exporting

    ● 5800mAh Li-battery, more than 220 cycles splicing&heating

    ● Multi-function holder clamps, apply to bare fiber,pigtail,patch cords,

    drop cable etc.



    Applicable fiber SM(G.652), MM(G.651), DS(G.653), NZDS(G.655), others(including G.657)
    Diameter of cladding 80 -150μm
    Diameter of coating 160 – 900μm
    Typical splice loss SM:0.02dB, MM:0.01dB, DS:0.04dB, NZDS:0.04dB
    Return loss >60db
    Fiber cleaved length 10-16mm (coating diameter< 250μm ), 16mm(coating diameter: 250-1000μm )
    Splicing program 40 groups
    Operate mode Manual, Automatic
    Auto-heating Available
    Typical splicing time 6 seconds
    Tube heating time 18 seconds for 60mm and 40mm shrinkable sleeves
    Fiber view magnification 250X(X or Y view), 125X(X and Y view)
    Viewing method and display 2 CMOS cameras, 4.3 inch color LCD monitor
    Storage of splice result 4000 results
    Loss evaluation Available
    Tension test 1.8-2.2N
    Interface GUI menu interface, easier operation
    Battery capacity 5200mAh Li-battery, typical 220 cycles(splice and tube heat)
    Power supply Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V
    Electrode life More than 4000 ARC discharges, can be replaced conveniently
    Terminals USB 2.0 port, for uploading splice results and upgrading software
    Operating condition Altitude: 0-5000m, Humidity: 0-95%, Temperature: -10℃~+50℃;Wind speed: max 15m/s
    Dimension 160mm(L)x136mm(W)x140mm(H)
    Weight 2.20kg including battery
    Package Packed in carton with protection foam, Size 43cm*37cm*27cm, G.W.6.5kg
