Handheld Fusion Splicing Machine with 8s Splicing Time 5800mAh Battery and 40 Groups Splicing Program

Brand Name:	domectic
Model Number:	F-97
MOQ:	1
Price:	1~30
Packaging Details:	export packing
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ISO

Product Name:

F-97 Smal Handheld Fiber Optical Core To Core Digital Alignment Fusion Splicing Machine

Splicing Program:

40 Groups

Typical Splicing Time:

8 Seconds

Diameter Of Coating:

160 – 900μm

Supply Ability:

1000000

Highlight:

fiber optic tool kit

fiber optic splicing tool kit

Product Description

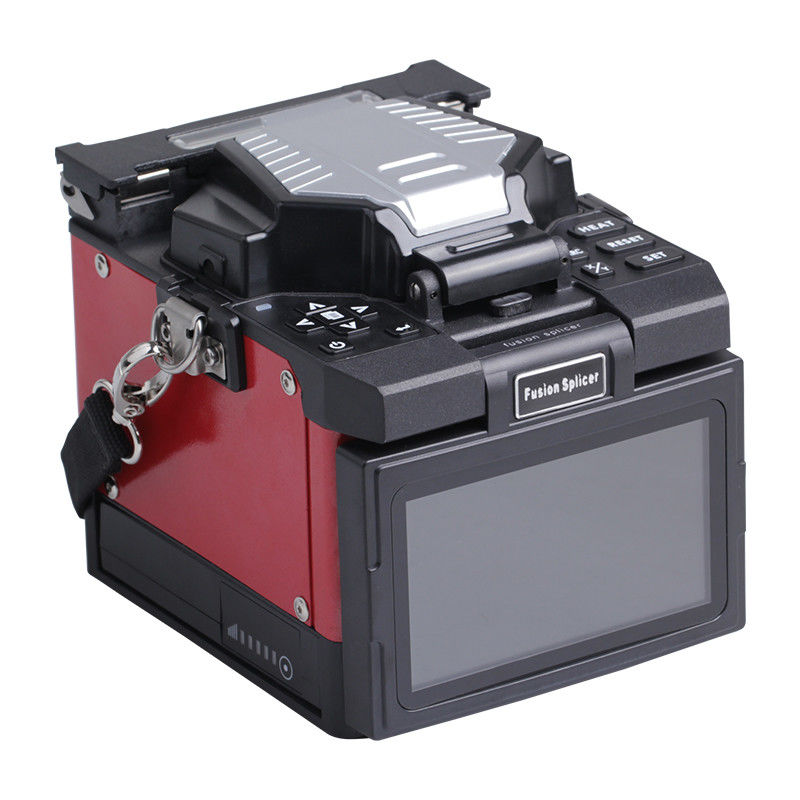

F-97 Small Handheld Fiber Optical Core to Core Digital Alignment Fusion Splicing Machine

Key Features

Handheld, compact and lightweight design for portability
Industrial standard screen with clear display
Available in multiple color options
Precision core-to-core digital alignment system
Fast 8-second splicing time and 26-second tube heating
5800mAh removable Li-battery with approximately 200 cycles
Automatic ARC calibration by temperature and air pressure
Compatible with bare fibers, indoor cables, and jumper wires

Technical Specifications

Applicable Fiber	SM(G.652), MM(G.651), DS(G.653), NZDS(G.655), others (including G.657)
Fiber Count	Single
Fiber Dimensions	Cladding diameter: 80-150μm, Coating diameter: 160-900μm
Typical Splice Loss	0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS)
Return Loss	>60dB
Fiber Cleaved Length	10-16mm (coating diameter < 250μm), 16mm (coating diameter: 250-1000μm)
Splicing Programs	40 groups
Operation Modes	Manual and Automatic
Auto-Heating	Available
Typical Splicing Time	8 seconds
Tube Heating Time	26 seconds for 60mm and 40mm shrinkable sleeves
Fiber View Magnification	250X (X or Y view), 125X (X and Y view)
Viewing Method	2 CMOS cameras with 4.3 inch color LCD monitor
Storage Capacity	4000 splice results
Loss Evaluation	Available
Tension Test	1.8-2.2N
Interface	GUI menu interface for easy operation
Battery Capacity	5800mAh removable Li-battery (approx. 200 cycles)
Power Supply	Adaptor: AC100-240V (50/60Hz)
Electrode Life	>4000 ARC discharges (replaceable)
Terminals	USB 2.0 port for data transfer and software updates
Operating Conditions	Altitude: 0-5000m, Humidity: 0-95%, Temperature: -10℃ to +50℃, Wind speed: max 15m/s
Dimensions	149mm(L) * 120mm(W) * 127mm(H)
Weight	1.9kg (including battery)
Package	Carton with protective foam, Size: 43cm * 37cm * 27cm, Gross Weight: 6.5kg

Product Details

Splicing Display

Included Accessories
