1 In 32 Out PLC Fiber Optic Splitter ABS Box Type with SC/PC Connector for High Channel Counts

Brand Name:	New Light
Model Number:	ABS Box
MOQ:	10
Price:	1~30
Packaging Details:	export packing
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Brand Name:

New Light

Connector Type:

SC/PC(Can Be FC, LC, E2000, ST)

Mode Type:

Single Mode

OEM / ODM:

Acceptable

ABS Box Color:

Black

Certificate:

CE , ISO , RoHS

Delivery Time:

2-7 Working Days After Received Deposit

Payment Term:

T/T , 30% Deposit In Advance

Cable Length:

1.5m Or Customized

Cable Diameter:

0.9mm, 2.0mm Or 3.0mm

Supply Ability:

1000000

Highlight:

single mode fiber splitter

fiber optic cable splitter

Product Description

1 In 32 Out PLC Fiber Optic Splitter 1x32 ABS Box Type With SC / PC Connector

Product Overview

The 1x32 PLC Fiber Optic Splitter in ABS box type with SC/PC connectors is a planar waveguide integrated optical device designed for efficient light power distribution across wavelengths from 1260nm to 1650nm. This makes it particularly suitable for EPON technology applications and FTTP fiber network systems.

Key Features

Low insertion loss and low PDL
High channel counts (1x32 configuration)
Exceptional reliability and stability
Wide operating wavelength range (1260-1650nm)
Wide operating temperature range (-40°C to +85°C)
Compact and durable ABS box design

Applications

FTTX Systems
LAN, WAN and Metro Networks
Analog/Digital Passive Optical Networks
CATV Networks
Other fiber optic system applications

Technical Specifications

Item	Unit	Specification
Operating Wavelength	nm	1260~1650
Fiber Type	/	G652D/G657A1/G657A2
Tube Type	um	250um Fiber, 600um or 900um loose tube
Insertion Loss	dB	≤17.0
Uniformity	dB	≤1.5
PDL	dB	≤0.3
TDL	dB	≤0.5
Return Loss	dB	≥55
Working Power	mW	≤500
Operating Temperature	℃	-40~+85
Package Size	mm	100x80x10 \| 120x80x18 \| 140x115x18

* Specifications shown are for 1x32 configuration without connector

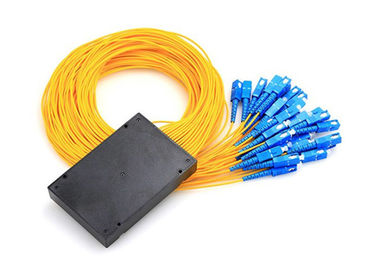

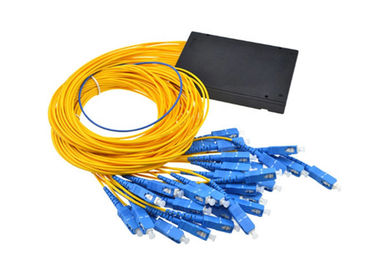

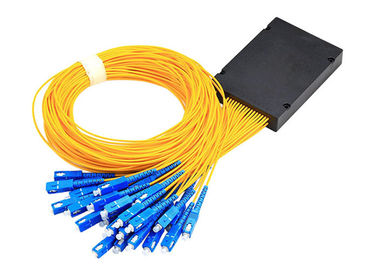

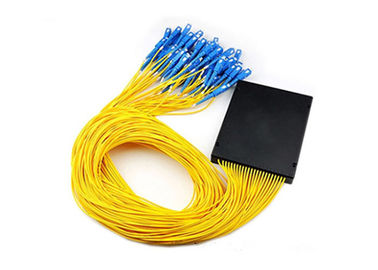

Product Images

Packaging

Each unit is securely packaged in OPP bags and carton boxes to ensure protection during shipping and handling.

Frequently Asked Questions

Q: Are you a manufacturer?

A: Yes, we are a manufacturer based in Shenzhen, China.

Q: What's your MOQ?

A: Minimum order quantity can be 1 piece, but larger quantities receive better pricing.

Q: What's the lead time?

A: We maintain three factories in China with typical lead times of 2-3 working days for 5000 pieces of regular products.

Q: What's your warranty policy?

A: We offer a 2-year warranty for non-artificial damage on patch cords.

Q: Do you accept OEM/ODM orders?

A: Yes, we accept OEM/ODM orders and can sign confidentiality agreements.

For more detailed questions about pricing, samples, ordering process, or payment terms, please contact our sales team directly.
