Fiber Optic Splitter

1x4 Mini Type PLC Fiber Optic Splitter with SC/APC Connector for FTTX Systems and LAN Networks

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

1x4 Mini Type PLC Fiber Optic Splitter with SC/APC Connector for FTTX Systems and LAN Networks

Brand Name:	New Light
Model Number:	Mini Type
MOQ:	10
Price:	1~30
Packaging Details:	export packing
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Product Name:

1x4 Mini Type PLC Splitter

Connector Type:

SC/APC

Mode Type:

Single Mode

OEM / ODM:

Acceptable

Tube Materials:

Stainless Steel

Certificate:

CE , ISO , RoHS

Delivery Time:

2-7 Working Days After Received Deposit

Payment Term:

T/T , 30% Deposit In Advance

Cable Length:

Cable Diameter:

900um

Supply Ability:

1000000

Highlight:

single mode fiber splitter

fiber optic cable splitter

Product Description

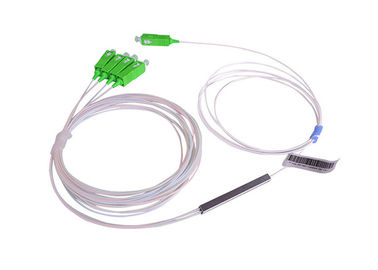

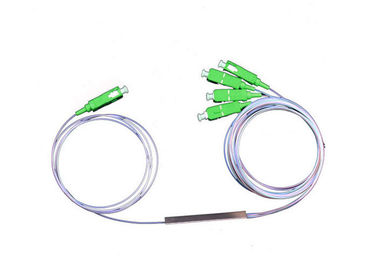

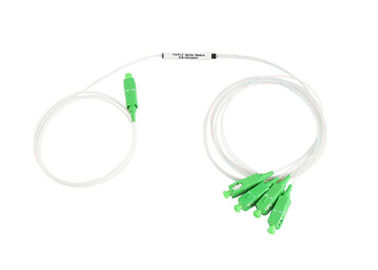

1x4 Mini Type PLC Fiber Optical Splitter Device With SC / APC Connector

Product Description

This 1x4 mini type fiber optic PLC splitter features one fiber input and four fiber outputs (configurable as 2 fibers in and 4 fibers out). The compact planar waveguide integrated optical device operates across a wide wavelength range of 1260nm to 1650nm, covering EPON technology wavelengths (1310nm, 1490nm, and 1550nm). Ideal for EPON Ethernet passive optical networks, FTTP fiber network systems, and broadband passive optical distributors (POS).

Applications

FTTX Systems
LAN, WAN and Metro Networks
Analog/Digital Passive Optical Networks CATV Networks
Other fiber optic system applications

Features

Low insertion loss and low PDL
High channel counts
Exceptional reliability and stability
Wide operating wavelength range
Wide operating temperature range
Compact design

Specifications

Item	Unit	PLC Optical Splitter Mini Type
Operating Wavelength	nm	1260~1650
Fiber Type	/	G652D/G657A1/G657A2
Tube Type	um	250um Fiber, 600um or 900um loose tube
Channel Type	/	1x2, 1x4, 1x8, 1x16, 1x32, 1x64
Insertion Loss	dB	≤4.0 (1x2), ≤7.2 (1x4), ≤10.5 (1x8), ≤13.7 (1x16), ≤17.0 (1x32), ≤20.6 (1x64)
Uniformity	dB	≤0.4 (1x2), ≤0.6 (1x4), ≤0.8 (1x8), ≤1.2 (1x16), ≤1.5 (1x32), ≤2.0 (1x64)
PDL	dB	≤0.2 (1x2-1x8), ≤0.3 (1x16-1x32), ≤0.35 (1x64)
TDL	dB	≤0.5
Return Loss	dB	≥55
Directionality	dB	≥55
Working Power	mW	≤500
Operating Temperature	℃	-40~+85
Storage Temperature	℃	-40~+85

* without connector

CAD Drawing

The PLC optical splitter MINI module is available in various split modes and package types, with customization options available.

Packaging

Each unit is protected in an OPP bag and carton box to prevent damage during shipping.

Frequently Asked Questions

Q: Are you manufacturer?

A: Yes, we are a manufacturer based in Shenzhen, China.

Q: What's your MOQ?

A: Minimum order quantity is 1 piece, but larger quantities receive better pricing.

Q: What's the price?

A: Pricing depends on quantity - we offer competitive pricing for bulk orders.

Q: Can you quote FOB price?

A: We typically ship via air courier (DHL, TNT, UPS, FedEx). For large orders, we can arrange sea freight.

Q: How is your quality?

A: We produce to IEC standards using imported equipment in near dust-free conditions. All products undergo 100% testing before shipment.

Q: What's your lead time?

A: Standard patch cords ship in 2-3 working days for quantities up to 5000 pieces. We maintain stock of regular products.

Q: What's your warranty?

A: 2-year warranty for non-artificial damage. Free repairs for artificial damage (customer pays shipping).

Q: Can you do OEM/ODM?

A: Yes, we accept OEM/ODM orders and can sign confidentiality agreements.

Q: Can I have a sample?

A: Free samples available for some products (customer pays shipping). Sample charges apply for high-value items.

Q: How can I order?

A: Contact us with product specifications and quantity. We'll provide pricing and lead time, then issue a proforma invoice upon acceptance.

Q: What are your payment terms?

A: We accept T/T, Western Union, PayPal, and MoneyGram. For large orders: 50% deposit, 50% balance before shipment.
