Product Details:
|
| Aplication: | Data Centers,pre-terminated Installations | Front Panel: | LC , SC , ST , FC , E2000 |
|---|---|---|---|
| Size: | 19 Inch | Interface: | Powder Coated |
| Product Name: | 24 Fiber Rack Mounted MPO/MTP Fiber Optic Patch Panel | Tray: | 12/24/48/72/96 Fiber |
| Weight: | 6kg | Storage Temperature: | -45°C~+60°C |
| Product Type: | Slide-out Drawer Enclosure With Splice Trays | Type: | 2U,draw Type Fiber Optic Path Panel,1U,Singlemode Or Mutil Mode |
| High Light: | fiber optic accessories,fiber optic termination panel |
||

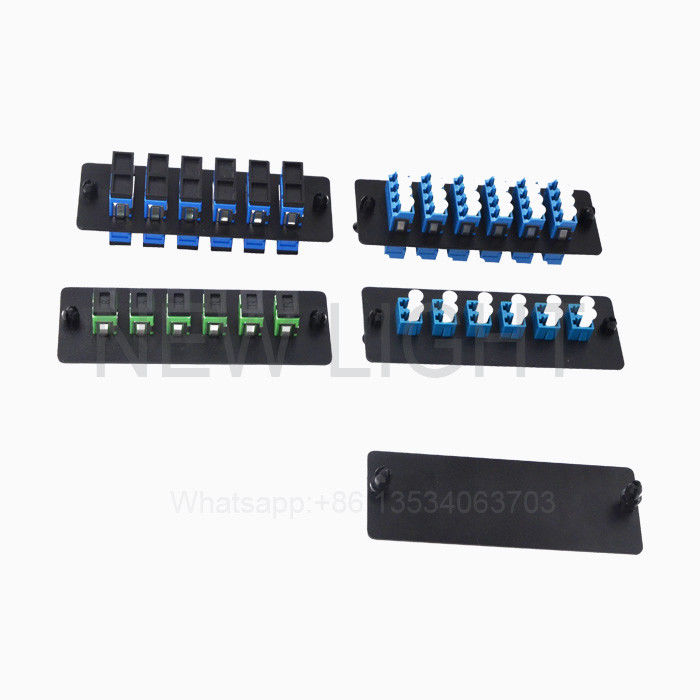

LC SC ST FC E2000 fiber optic patch panel 48 port fiber patch panel enclosure
Product description:
Wall-mount enclosure accommodates 4 panels (6-, 8-, 12- or 24- fiber panels). Note: 24 Port Panels only available in LC connectors. 16-gauge steel with corrosion-resistant black powder finish coat. When closed, wall-mount is lockable with a 1" keyed barrel lock. Grommets at the top and bottom allow user to enter main enclosure without unwanted handling of fiber optic cables.
Side swing door allows user to run jumper cable assemblies to final destination. Spools and cable tie down bracket included on the inside compartment.
New Light offers a great selection of fiber optic patch panel and fiber optic enclosure solutions so you can properly store your fiber optic cables. Even though rackmount panels and enclosures take up a little bit of extra floor space, they are easy to access and do a great job of keeping your network of cables clean, safe, and working properly.
By offering a great selection of fiber rack mount patch panels and enclosures, New Light Products aims to help you stop worrying about whether or not your cable network is secure and is being well taken care of, and frees you up to focus on the day-to-day operations of your business. Now you can do what you need to do, when you need to do it, with the added assurance that your electronic equipment is being properly taken care of.
Features:
MTP/MPO standard compliant multifibre connector
LC (SFF data center standard), SC discrete interface
OS1/2, OM3, OM4 fibre grades (OM1 and OM2 available)
12 and 24 fibre versions - 12 LC (Duplex) / SC (Simplex) optical parts
Polarity A (standard), B or C
Factory terminated and tested
High performance zirconia sleeve adaptors
| Parameter | Unit | FDF-1U | FDF-2U | FDF-3U | |
| Fiber Capacity | Core | ≤24 | ≤48 | ≤72 | |
| Number of Tray | PCS | 1 | 2 | 4 | |
| Height | 1U | 2U | 3U | ||
| Dimension | Width | mm | 482 | 482 | 482 |
| Depth | mm | 305 | 305 | 305 | |
| Remark | Rack Mount | Rack Mount | Rack Mount | ||
Applications:
· Telecommunication networks
· Local Area Networks
· FTTH
· CATV networks
· Active device termination
Features & Benefits:
· Low excess loss & high performance
· Retractable splicing tray
· Convenience and ease of handling
· Indoor use, outdoor use customizable
| Projects | Parameter |
| Operating temperature | -25℃~+40℃ |
| Storage temperature | -25℃~+55℃ |
| Relative humidity | ≤85％(+30℃) |
| Air pressure | 70Kpa~106Kpa |
| Color | Black |
Dimension:
| Model | fiber quantity | Height | Dimension(LxWxH) |
| rack mount | 12 /24 /48 /96 core | 1U | 430*354.1*44mm |
