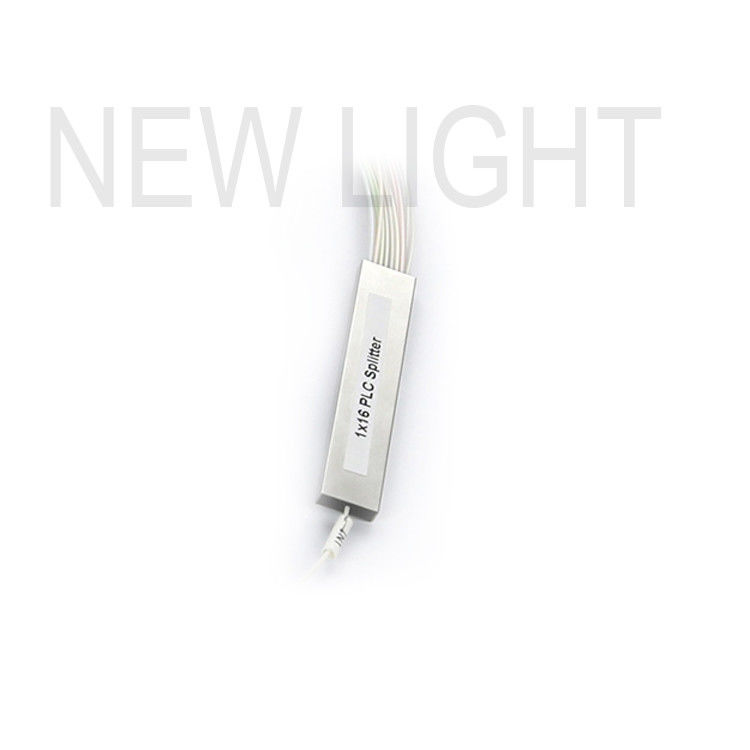

ANATEL Certified Mini Block Fiber Optic PLC Splitter with SC Connector for FTTH Networks

Brand Name:	New Light
Model Number:	Mini Type
MOQ:	10
Price:	1~30
Packaging Details:	export packing
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Product Name:

1 In 2 Out Mini Type PLC Splitter

Connector Type:

SC / E2000

Mode Type:

Single Mode

OEM / ODM:

Acceptable

Tube Materials:

Stainless Steel

Certificate:

CE , ISO , RoHS

Cable Length:

Cable Diameter:

0.9mm , 0.6mm, 0.25mm

Supply Ability:

1000000

Highlight:

fiber optic plc splitter

single mode fiber splitter

Product Description

Fiber Optic FTTH PLC Splitter 1x8 1x16 Mini Block Steel Tube ANATEL Certified

Product Description

This ANATEL certified fiber optic PLC splitter is a crucial passive component in fiber optic networks. Designed with multiple inputs and outputs, it's ideal for connecting central offices to terminals in passive optical networks (EPON, GPON, BPON). The device efficiently splits optical signals and comes in various installation types (O-type, L-type, P-type, S-type, R-type, U-type) compliant with industry standards.

Applications

Optical Signal Distribution
Passive Optical Network (PON)
Measuring System and Laser System
DWDM and CWDM System
Data Communications
LAN and CATV System
FTTX Deployment
FTTH Network

Key Features

Compact size with aesthetic design
Available with various connector types (SC standard)
Quick installation with reliable performance
Meets YD/T893 industry standard requirements
Simple structure with easy processing
Excellent splitting uniformity for passive optical networks

Compliance Standards

Telcordia GR-1209-CORE
Telcordia GR-1221-CORE
RoHS

Technical Specifications

Parameters	1*2	1*4	1*8	1*16	1*32	1*64
Operating Wavelength (nm)	1260~1650
Fiber Type	SMF-28e or customer specified
Insertion Loss (dB)(S/P Grade)	4.0/3.8	7.3/7.0	10.5/10.2	13.7/13.5	16.9/16.5	21.0/20.5
Loss Uniformity (dB)	0.4	0.6	0.8	1.2	1.5	2.5
Return Loss (dB) (S/P Grade)	50/55	50/55	50/55	50/55	50/55	50/55
Polarization Dependent Loss(dB)	0.2	0.2	0.3	0.3	0.3	0.4
Directivity (dB)	55	55	55	55	55	55
Wavelength Dependent Loss(dB)	0.3	0.3	0.3	0.5	0.5	0.5
Temperature Stability(-40~85 °C)(dB)	0.5	0.5	0.5	0.5	0.5	0.5
Operating Temperature (°C)	-40~85
Storage Temperature (°C)	-40~85
Module Dimension (mm) (LWH)	1008010	1008010	1008010	1208018	14011518	14011518

CAD Drawing

The tube size(mm): 50x4x4

The PLC optical splitter MINI module is available in various split modes and package types, with customization options available.

Packaging

Our products feature exquisite packaging design to ensure they arrive in perfect condition.

Frequently Asked Questions

1. Are you manufacturer?

Yes, we are a manufacturer based in Shenzhen, China.

2. What's your MOQ?

Minimum order quantity can be 1 piece, but we recommend larger quantities for better pricing.

3. What's the price?

Pricing depends on quantity. We offer competitive pricing for bulk orders.

4. Can you quote FOB price?

We typically ship via air courier (DHL, TNT, UPS, FedEx). For large sea shipments, we can provide CFR pricing.

5. How is your quality?

We adhere to IEC standards with imported production equipment. All products undergo 100% testing before shipment.

6. What's your lead time?

Standard products are typically in stock. Custom orders take 2-3 working days for quantities up to 5000 pieces.

7. What's your warranty?

2-year warranty for non-artificial damage. Repair services available for artificial damage (customer pays freight).

8. What's your packing?

International export packaging with optional custom logo printing available.

9. Can you do OEM/ODM?

Yes, we accept OEM/ODM orders and can sign confidentiality agreements.

10. Can I have a sample?

Free samples available for some products (customer pays freight). Sample charges may apply for high-value items.

11. How can I order?

Send specifications and quantity requirements
We provide quotation with lead time
Confirm acceptance and receive proforma invoice
Production begins after payment
Shipping confirmation with tracking number

12. What's your payment term?

T/T, Western Union, PayPal, MoneyGram. For large orders: 50% deposit, 50% before delivery.
