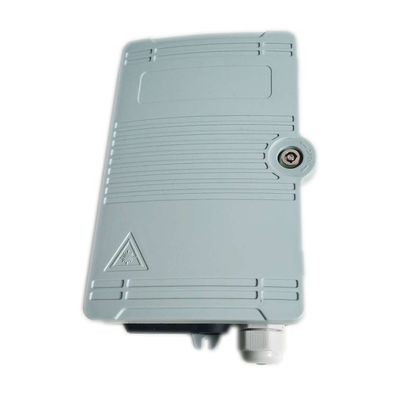

4 Cores FTTH Termination Box Wall Mountable Waterproof Outdoor Fiber Optic Splitter Box

Brand Name:	New Light
Model Number:	terminal box
MOQ:	10
Price:	2~100
Packaging Details:	1 piece per pack
Payment Terms:	T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Color:

White

Material:

ABS,PC

Name:

Splitter Box

Avalaible

Type:

4/8/16/32/64ports,FC/SC/LC,wall Mounted,Waterproof Outdoor,Indoor Wall Mountable

Connector Type:

SC/APC Or SC/UPC,SC/APC/PC

Installation:

Pole-mounted Wall-mounted,drop Cables / Pigtails/ Indoor Patchcord

Product Name:

Ftth Terminal Box,12 Port Fiber Optic Patch Panel,FTTH 16 Cores Access Terminal Box Black/Cajas Nap Set Completo,Horizontal Fiber Optic Splice Plastic Enclosure,fiberhome An5506-01-a Gpon Onu

Application:

FTTH FTTB FTTX Network,Telecommunication,WANS,CATV

Supply Ability:

1000 pcs per month

Highlight:

wall mount fiber termination box

fiber optic termination box

Product Description

Fiber Optical Splitter ABS Fibre Optic Cable FTTH Termination Box 4 Cores Fiber

This fiber optic termination box features fixed and welding functions to protect cable terminals, implementing connections between cables and pigtails. Constructed with high-quality electrolytic plate and overall electrostatic spray, it offers solid structure and attractive appearance. Suitable for both ribbon and non-ribbon cables.

FTTH Distribution Features

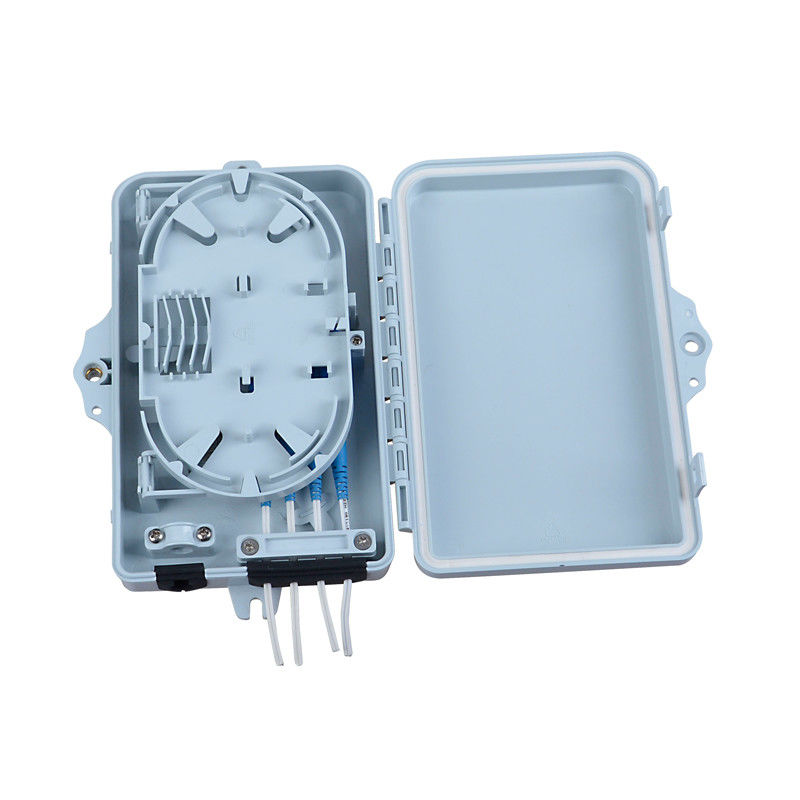

Designed for FTTx networks to connect feeder/distribution cable to subscriber's drop cable using PLC splitter. Features 2 input ports and 16 output ports on the bottom for easy wall or pole mounting. Includes rear tray for splicing feeder cable with PLC splitter and front tray for connecting subscriber's drop cable through adaptor plate.

Product Features

Available in 2 cores/4 cores/8 cores/16 cores/24 cores/48 cores configurations
Suitable for indoor or outdoor scenarios, wall or pole mounted
Built-in 1x2 or 1x4 connectorized PLC splitter as required
Supports pass-through distribution cable connection
Separate outlets for each drop cable entry
Open-type cable gland enables pre-connected drop cable access
Flame retardant and UV-proof construction

Compliance Standards

TIA/EIA 568.C - Optical Fiber Cabling Components Standard
IEC61754 - Fiber optic connector interfaces Standard
ANSI/TIA/EIA-606-A - Administration Standard for Telecommunications Infrastructure
GR-449-CORE - Generic Requirements and Design Consideration for Fiber Distributing Frames
RoHS - Directive on Restriction of Hazardous Substances

Technical Specifications

Input Cable Ports: 1
Maximum Input Cable Diameter: 5mm
Maximum Capacity: 2 fibres
Maximum Customer Feeds: 2 patch cords
Dimensions: 86 x 86 x 23mm
Material: ABS or PC
Compatible Cables: FTTH drop cable or indoor cable

Specification	Details
Adapter Capacity	02 Adapters
Splice Trays	/
Splice Capacity	02 Splices
Ports	1 Input Port / 4 Output Ports
Material	PC/ABS
Height	86 mm
Width	86 mm
Depth	19mm
Color	White
Port Capacity	2 ports, each port for 1 cable with max 10mm

Applications

Telecommunications subscriber loop
Fiber to the home (FTTH)
LAN/WAN networks
CATV systems

Model Specifications

Model	Capacity	Type	Adapter Options	Pigtail Options
FFS	2	B	SC: SC/UPC AS: SC/APC LC: LC/UPC AL: LC/APC	SC: SC/UPC AS: SC/APC LC: LC/UPC AL: LC/APC

Frequently Asked Questions

Are you a trading company or manufacturer?

We are the factory.

How long is your delivery time?

Generally 7-15 days if goods are in stock, or 15-30 days if not in stock, depending on quantity.

Do you provide samples? Is it free or extra?

Yes, we offer samples free of charge but the customer pays for freight costs.

How about your after-sales service?

We offer 24-hour service phone support and 9-hour email support.

What are your payment terms?

Payment ≤ 1000USD: 100% in advance. Payment ≥ 1000USD: 30% T/T in advance, balance before shipment.

Contact Information

For any questions, please feel free to contact us:
Email: sales03@newlightfiber.com
WhatsApp: 008613534063703
