Armored Fiber Optic Cable GYTS GYTA with LSZH Outer Jacket Waterproof and Crush Resistance for Aerial Use

Brand Name:	NL
Model Number:	NL
MOQ:	1 roll
Price:	0.1~100
Packaging Details:	export packing
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Fiber Type:

Singlemode G652D ,G657A

Outer Jacket Material:

LSZH

Strength Member Material:

KFRP / FRP / Steel Wire

Packaging:

Wooden Wheel

Test Repor:

Out Package Of The Cable

Fiber Struction:

Figure8

Usage:

Aerial

Certification:

ISO9001,ROHS,CE,CE And ROHS,ISO9001/CE/ROHS

Type:

Single-Mode Or Multi-Mode

Jacket Material:

LSZH,PVC,PE,TPU,PVC/LSZH

Supply Ability:

1000000

Highlight:

duplex fiber optic patch cable

fiber optic drop cable

Product Description

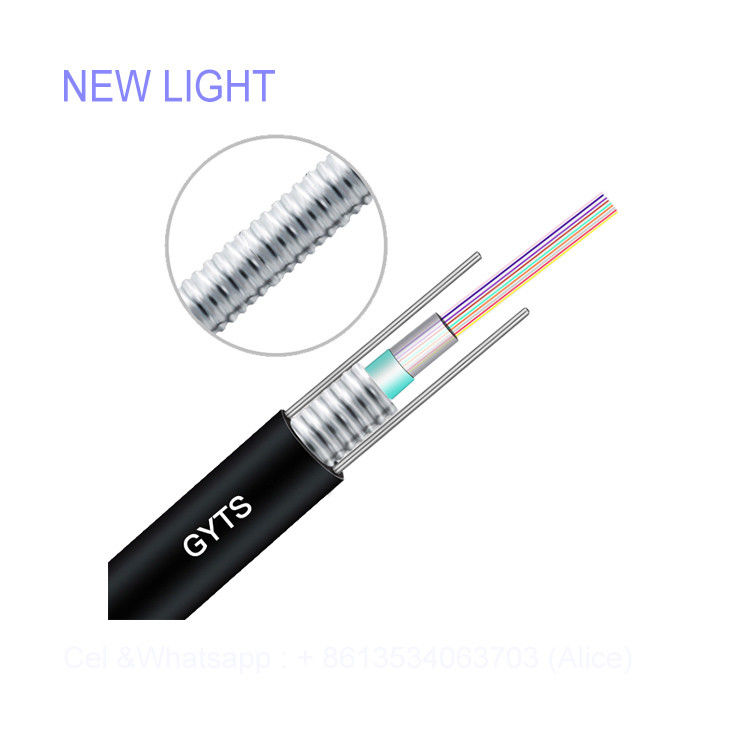

Armour Fiber Optic Cable GYTS GYTA GYFTA GYXTW Unitube Light Armored Cable

Product Overview

Armour cable GYTS GYTA GYFTA GYXTW Unitube Light-armored Cable features stranded loose tube filled with water-resistant compound. These cables incorporate a central steel wire strength member and Aluminum Polyethylene Laminate (APL) protection, making them ideal for long haul communication and LAN applications with high moisture resistance requirements.

Key Characteristics

Excellent mechanical and temperature performance
High strength loose tube with hydrolysis resistance
Special tube filling compound for critical fiber protection
Compact structure prevents loose tube shrinkage
Superior crush resistance and flexibility
PE sheath protects against ultraviolet radiation
Comprehensive watertight protection measures

Technical Standards

GYTS cable complies with Standard YD/T 901-2001 and IEC 60794-1.

Optical Performance Specifications

Parameter	G.652	G.655	50/125μm	62.5/125μm
Attenuation @850nm			≤3.0 dB/km	≤3.0 dB/km
Attenuation @1300nm			≤1.0 dB/km	≤1.0 dB/km
Attenuation @1310nm	≤0.36 dB/km	≤0.40 dB/km
Attenuation @1550nm	≤0.22 dB/km	≤0.23 dB/km
Bandwidth @850nm			≥500 MHz*km	≥200 MHz*km
Bandwidth @1300nm			≥1000 MHz*km	≥600 MHz*km
Numerical Aperture			0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc	≤1260nm	≤1480nm

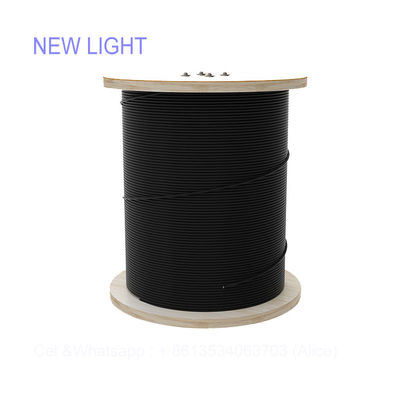

Packaging Specifications

Item	Specification
Length and packaging	2000m/3000 plywood reel
Packaging details	Wooden wheel

Applications

Ideal solution for tight-buffered distribution waterproof indoor/outdoor cable. With high mechanical strength, rodent and waterproof protection, these cables are perfect for LAN backbones, direct burial, ducts, trunking, and under floor or ceiling spaces.

Packaging & Shipping

NEW LIGHT offers standardized cable packaging with rapid shipping from adequate inventory. Cables are packed on rolls within protective cartons, with test reports included. Custom marking available upon request.

Frequently Asked Questions

Are you a trading company or manufacturer?

We are factory.

How long is your delivery time?

Generally 7-15 days if goods are in stock, or 15-30 days if not in stock, depending on quantity.

Do you provide samples? Is it free or extra?

Yes, we offer samples free of charge but freight costs are not included.

How about your after-sales service?

We offer 24-hour service phone support and 9-hour email support.

What are your payment terms?

Payment ≤ $10,000 USD: 100% in advance. Payment ≥ $10,000 USD: 30% T/T in advance, balance before shipment.

Contact Information

For any additional questions, please contact us:
Email: sales03@newlightfiber.com
Phone: 0086 13534063703
