Product Details:
|
| Product Name: | OM4 100G Transmission MTP Patch Cable 12 Strand Multimode Fiber Optic Cable | Connector Type: | MPO- 12*LC |
|---|---|---|---|
| Core Type: | OM4 | Transmission: | 100G |
| Insertion Loss: | Insertion Loss ≤ 0.5dB | Cable Length: | Can Be Customized |
| Fiber Type: | 850/1300nm | Fiber Count: | 12 FIBER |
| Jacket: | LSZH | Cable Diameter: | 3.0mm |
| Cable Color: | Magenta | MPO Type: | Female Type |
| Highlight: | OM4 mpo patch cable,100G mtp mpo cable |
||
Fiber Optic MPO MTP cable Product Name
OM4 100G Transmission MTP Patch Cable 12 Strand Multimode Fiber Optic Cable
Fiber Optic MPO MTP cable Description
OM4 100G Transmission MTP Patch Cable 12 Strand Multimode Fiber Optic Cable is used to 100G data transmission.
The MPO(MTP) cables are offered for various applications for all networking and device needs like 100 Gig modules including CFP, CFP2 and CFP4 series

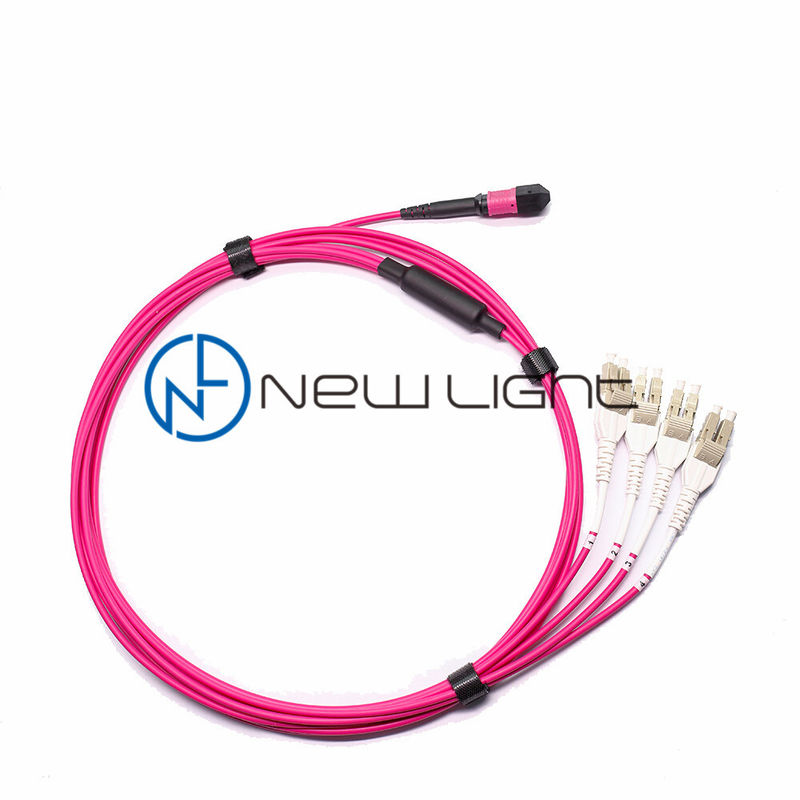

It is an MPO female connector on one side, and an LC duplex connector on the other side. MPO- LC is more regular, also can be MPO- ST/ FC/ LC/ SC.
In cases where an MTP/MPO-LC patch cord is connected (through an MTP coupler) to another MTP patch cord, one of the two MTP/MPO connectors must be male (equipped with pins).
MPO fiber optic patch cords are with MPO fiber optic connectors. They are several fiberglass connections in one such patch cord, for example, 4 fiber, 8 fiber, 12 fiber, etc. Single-mode and multimode; PC, APC polishing, Male and Female types are available.
High fiber density (24 fibers for Multimode)
Low insertion loss and reflection loss
Good Durability
Good Exchangeability
High-temperature stability
Fiber Optic MPO MTP cable Application
Testing equipment
FTTX+LAN
Optical fiber CATV
Optical communication system
Telecommunication
Fiber Optic MPO MTP cable Parameter
| products name | OM4 100G Transmission MTP Patch Cable 12 Strand Multimode Fiber Optic Cable |
| mode type | MM |
| cable count | 12 core ( can be 4/8/12/16/24/32 core ) |
| core type | 50/125um OM4 |
| cable color | Magenta ( can be customized according to your request ) |
| cable diameter | 3.0 ( can be 3.0 and customized diameter ) |
| patch cord length | ( can be customized according to your request ) |
| out jacket material | LSZH |
| insertion loss | ≤ 0.5dB |
| return loss | ≥25 dB |
| wavelength | 850/1300nm |
| connector type | Female |
| connector color | Magenta (Aqua / Magenta /beige are ok ) |
| ferrule material | plastic |
| operating temperature | -40~ +85℃ |
| cable print | standard print ( can be customized) |
| OEM/ODM | acceptable |
| warranty | 3 years after delivery |
| Delivery time | 2-15 working days ( according to your quantity ) |
How to order
1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
4. Coating material : PVC / LSZH
5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core/48 core / 96 core and so on
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
7. Patch cord length : according to your requirement
8.MPO/MTP connector should let us know which method ( A type / B type /C type ), male or female , fiber count (4/8/12/16/24/32 fiber )
FQA :
1. Q: Are you a manufacturer?
A: yes, we are a manufacturer in Shenzhen, China
2. Q: What's your MOQ?
A: MOQ can be 1 pcs, but we do not suggest to order 1 pcs because the cost will be higher, so that the price will be higher than your budget.
3. Q: What's the price?
A: The price is according to your quantity. After you let us know your quantity, we will offer our best price for you. Big Quantities will get a very competitive price.
4. Q: Can you quote FOB price?
A: yes we can, but due to the size and weight is not big, most are delivery by air, DHL, TNT, UPC, FEDEX, etc. So it difficult to do FOB price. The best way is to let us know your detailed specifications and quantity, we will offer the freight with products price for your reference.
We have a very competitive price shipping forward. If your quantity is big and there are dozens of carton boxes, we can figure out freight by sea for your reference.
EXW price or CFR price will be better . You can contact us for more solution if you need.
5. Q: How is your quality?
A: Our production is according to IEC, Europe standard production, almost closed to the dust-free workshop. Imported production equipment and quality control equipment . Especially MTP Daisi equipment.
All the products are 100% test before delivery.
6. Q: What's your lead time?
A: We have three factories in China. One factory for fiber optic cable production, two factories for patch cord, PLC, ODF, adaptor, attenuators, etc.
For fiber optic patch cord, the lead time can be 2 -3 working days for 5000 pcs. regular products we have in stock. We can deal with urgent orders for you. For more information, you can feel free to contact us.
7. Q: What's your warranty?
A: for patch cord, we have 2 years warranty since delivery, but only responsible for non-artificial damage. For artificial damage, we can repair it for you for free, but freight will be paid by your side.
8. Q: What's your packing?
A: We are using an international export package. attached some packing of different products for your reference. We also can print your logo on the packing
9. Q: Can you do OEM/ODM?
A: yes, we can. We are a manufacturer, all products accept OEM /OD M. we can sign the Confidentiality Agreement.
10. Q: Can I have a sample?
A: It depends on which products, for the adaptor, attenuator, patch cord, pigtail, we can provide a sample for you for free. But freight repaid by your side.
For big value products, we can't offer it for free, sample charge and freight repaid first after you placed an order, the sample charge will be returned.
11. Q: How can I order?
A: 1. send mail to us or send inquiry. let us know the product name, detailed specifications, quantity. Provide your receive address if you need us to figure out freight for you.
2. After we know your requirements, we will offer our best price for you, with lead time. The price is according to your quantity.
3. When you accept the quotation, we will make a Proforma Invoice with our bank account.
4. We will arrange the production for you after we received the payment.
5. Before we delivery will confirm the receive information with you again .and will send the tracking number to you after delivery.
6. We will try our best to meet your requirements for long-term cooperation.
12. Q: What your payment term?
A: T/T, Western Union, Paypal, MoneyGram at once. For big amounts, can 50% deposit in advance, 50% balance paid before delivery.
Packing reference
