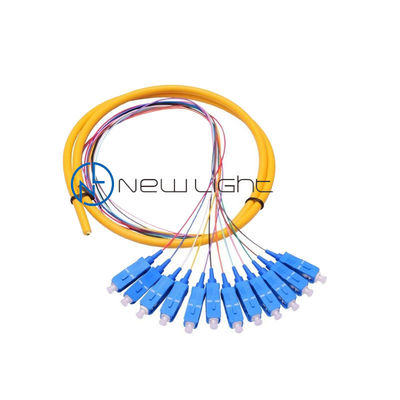

Multimode 12core Fiber Optic Splicing Pigtail 0.9mm

Brand Name:	New Light
Model Number:	SC/ PC
MOQ:	1
Price:	0.2~10
Packaging Details:	OPP bag + carton box
Payment Terms:	L/C, T/T, Western Union, MoneyGram , paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE , ISO , RoHS

Products Name:

Multimode Fiber Pigtail

Connector Type:

SC( Can Be ST , FC , LC , MPO , MTRJ , MU )

Mode Type:

MM ,SM

Cable Color:

Yellow

Cable Diameter:

0.9mm

Cable Length:

1 M (can Be Customized )

Insertion Loss:

≤ 0.3 DB

Return Loss:

≥ 40dB

Delivery Time:

2-7 Working Days

Payment Term:

30% Deposit In Advance , 70% Balance Paid Before Delivery

Supply Ability:

1000000

Highlight:

12core Fiber Optic Splicing Pigtail

,

Multimode Fiber Optic Splicing Pigtail

,

0.9mm Loose Tube Splicing Pigtail

Product Description

12core multimode simplex loose tube fiber optic pigtail splicing

fiber optic pigtail splicing is a fiber optic cable terminated with a factory-installed connector on one end, leaving the other end terminated. Hence the connector side can be linked to equipment and the other side melted with optical fiber cables. Fiber optic pigtail are utilized to terminate fiber optic cables via fusion or mechanical splicing. High-quality pigtail cables, coupled with correct fusion splicing practices offer the best performance possible for fiber optic cable terminations. Fiber optic pigtails are usually found in fiber optic management equipment like ODF, fiber terminal box and distribution box.

Features:

Compliant with the standard of IEC
High Return Loss
Low Insertion Loss
Good reliability and stability
Polishing type: PC, UPC, and APC
Various interfaces: SC
Core of cable: 12

Application:

Telecommunication Network
Testing Equipment
Local Ares Network
CATV

High temperature stability
Standard: Telcordia GR-326-CORE

Specification

S.M

M.M

PC

UPC

APC

Insertion Loss(dB)

<=0.30dB

<=0.20dB

<=0.20dB

<=0.30dB

Return Loss(dB)

>=50dB

>=55dB

>=60dB

-

Durability(1000 matings)

<=0.20dB

Operating Temperature

-40~+85℃

Storage Temperature

-40~+85℃

Cable Diameter(mm)

0.9/2.0/3.0

Cable Length(m)

1M, 2M, 3M, 5M, Customized

Specification	S.M			M.M
	PC	UPC	APC
Insertion Loss(dB)	<=0.30dB	<=0.20dB	<=0.20dB	<=0.30dB
Return Loss(dB)	>=50dB	>=55dB	>=60dB	-
Durability(1000 matings)	<=0.20dB
Operating Temperature	-40~+85℃
Storage Temperature	-40~+85℃
Cable Diameter(mm)	0.9/2.0/3.0
Cable Length(m)	1M, 2M, 3M, 5M, Customized

Pigtails are used for splice applications when terminating outside plant cable. It’s consists of a connector and a special length

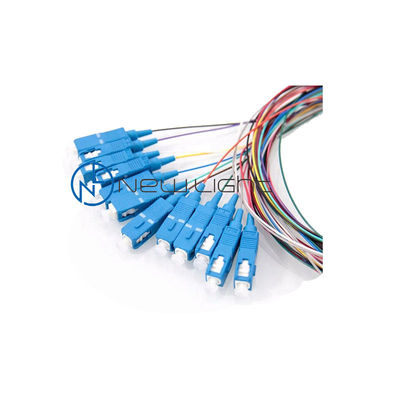

Multimode 12core Fiber Optic Splicing Pigtail 0.9mm 0

Multimode fiber (MMF) is a kind of optical fiber mostly used in communication over short distances, for example, inside a building or for the campus. Multimode fiber optic cable has a larger core, typically 50 or 62.5 microns that enables multiple light modes to be propagated. Because of this, more data can pass through the multimode fiber core at a given time. The maximum transmission distance for MMF cable is around 550m at the speed of 10Git/s. It can transmit farther at lower data rates, such as going about 2km at 100Mb/s.

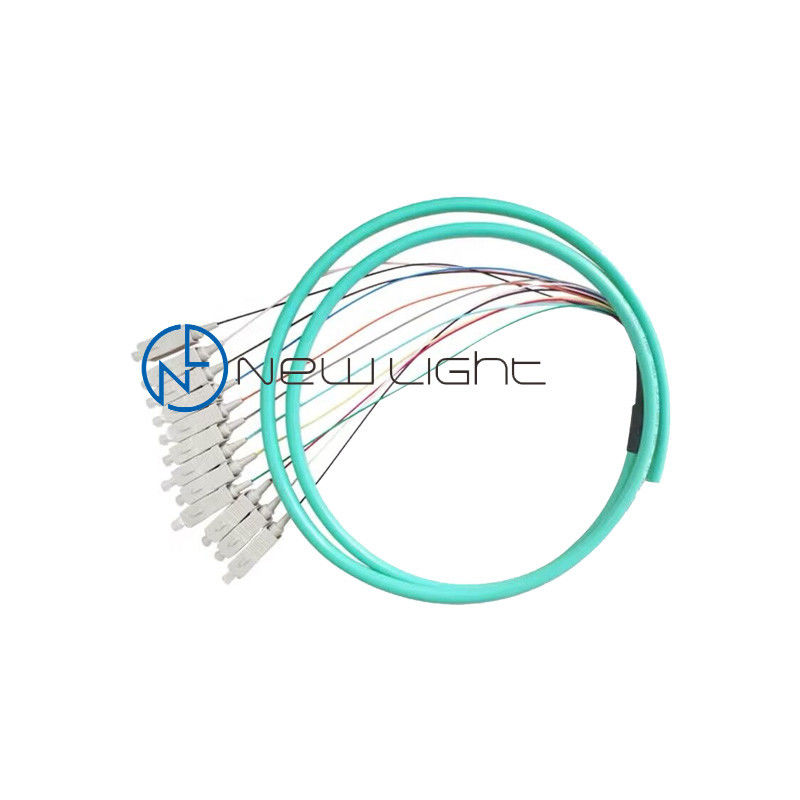

Multimode 12core Fiber Optic Splicing Pigtail 0.9mm 1

1.Are you the real manufacturer?
Us. We are the real manufacturer with 15 year’s history.

2.What’s the MOQ?
Us. The MOQ of Fiber Optic cable is 1km

.
3.What’s delivery time?
Us. The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.

4.How to Store the Optical Fiber Cable Properly?
Us. Store the drum indoor before using, the drum should place sideways not on the end.

5. Can you supply customized products and logo?
Yes. We supply OEM service. You can send us your drawing.

6.What’s your payment terms?
Us. We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70% before shipment.

Payment term and delivery

1. Payment : T/T , L/C , Paypal , Westen Union , Moneygram

2. 30% deposit in advance , 70% balance paid before delivery .

3. Package : internatinal standard package ( OPP bag + Carton Box )

4. Delivery time : 2-7 working days ( according to your quantity )after received payment .

5. Warranty : 3 year (after delivery ) .

6. Shipping method : BY air ( DHL , TNT , UPS ,Fedex ) , By sea (according to your requirements ).
