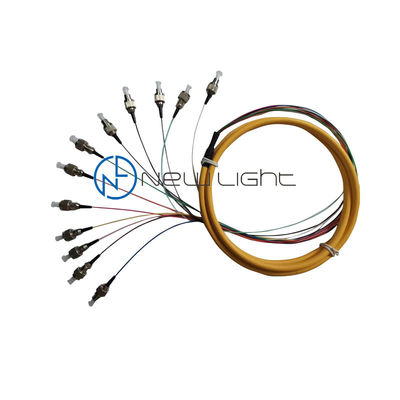

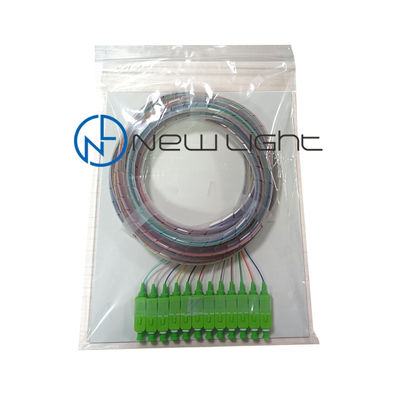

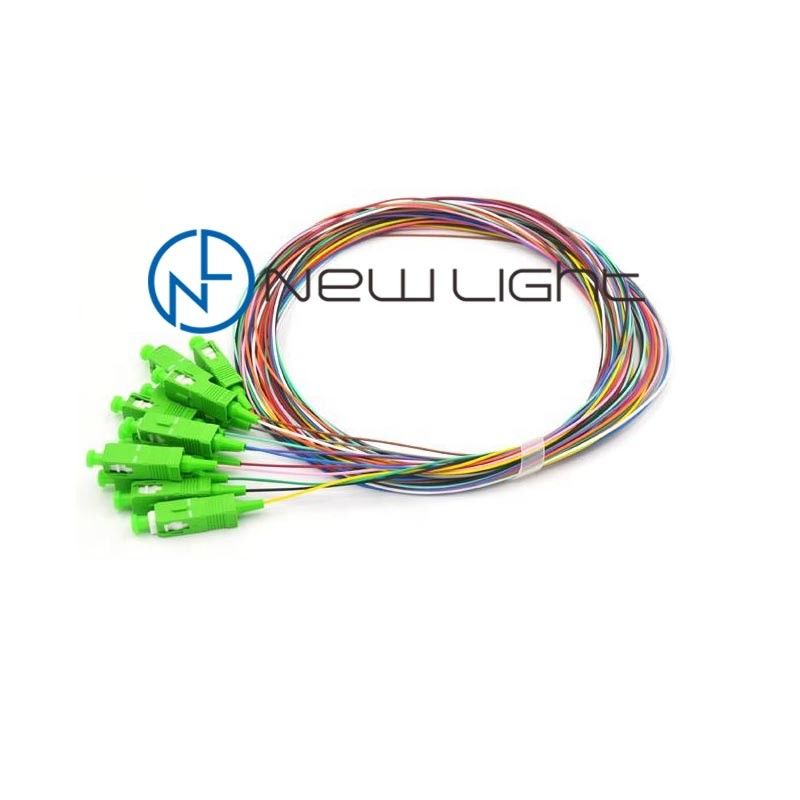

1M 0.9mm Buffer 12 Strand Fiber Optic Cable MM SM

1M 0.9mm Buffer 12 Strand Fiber Optic Cable MM SM
1M 0.9mm Buffer 12 Strand Fiber Optic Cable MM SM
1M 0.9mm Buffer 12 Strand Fiber Optic Cable MM SM 1M 0.9mm Buffer 12 Strand Fiber Optic Cable MM SM 1M 0.9mm Buffer 12 Strand Fiber Optic Cable MM SM 1M 0.9mm Buffer 12 Strand Fiber Optic Cable MM SM

Large Image :  1M 0.9mm Buffer 12 Strand Fiber Optic Cable MM SM

Product Details:
Place of Origin: ShenZhen , China
Brand Name: New Light
Certification: CE , ISO , RoHS
Model Number: SC/ UPC
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: can be negotiated
Packaging Details: OPP bag + carton box
Delivery Time: 2-7 working days after receive payment
Payment Terms: L/C, T/T, Western Union, MoneyGram , paypal
Supply Ability: 12000 pcs / day

1M 0.9mm Buffer 12 Strand Fiber Optic Cable MM SM

Description
Products Name: Strand Single Mode Fiber Optic Cable Connector Type: LC( Can Be ST , FC , SC , MPO , MTRJ , MU )
Mode Type: MM ,SM Cable Color: Yellow
Cable Diameter: 0.9mm Cable Length: 1M (can Be Customized )
Insertion Loss: ≤ 0.2 DB Return Loss: ≥ 40dB
Delivery Time: 2-7 Working Days Payment Term: 30% Deposit In Advance , 70% Balance Paid Before Delivery
High Light:

0.9mm Buffer Fiber Optic Cable

,

12 Strand Fiber Optic Cable

,

1M Single Mode Optical Cable

0.9mm Tight Buffer simplex 12 strand single mode fiber optic cable



0.9mm Tight Buffer simplex strand single mode fiber optic cable provide a fast way to make communication devices in the field. They are designed, manufactured and tested according to protocol and performance dictated by the industrial standards, which will meet your most stringent mechanical and performance specifications.
Please note: E2000 is an LSH connector with a dust-proof cover.

Identified by ISO 11801 standard, multimode fiber optic cables can be classified into OM1 fiber, OM2 fiber, OM3 fiber, OM4 fiber and newly released OM5 fiber. The next part will compare these fibers from the side of core size, bandwidth, data rate, distance, color and optical source in details.





Features of strand single mode fiber optic cable


1) Superior qualified standard PC, APC, UPC, SPC polishing;
2) 100% optic test: Insertion Loss: ≤0.3 (PC); ≤0.2 (APC); ≤0.2 (UPC); ≤0.3 (SPC);
3) 100% optic test: Return Loss: ≥45 (PC); ≥60 (APC); ≥55 (UPC); ≥50 (SPC);
4) φ0.9mm, φ2.0mm, φ3.0mm cable optional;
5) Single mode (9125) or multi mode (50/125 or 62.5/125) fiber available;
6) FC, SC, LC, MU, ST, MT-RJ, etc connector
7) Simplex and duplex connector available; 8) Good exchange ability and good durability;
9) Available in fiber bunch, ribbon fan-out, pigtail available;
10) Meets ISO9001, ROHS and Bell core GR 326-core standards;
11) Customized specifications are welcomed.



Applications of strand single mode fiber optic cable


1) CATV, metro test equipment;
2) Telecommunication networks;
3) Local area networks (LAN);
4) Wide area networks (WAN);
5) Premise installations;

6) Data processing networks;





Specification S.M M.M
PC UPC APC
Insertion Loss(dB) <=0.30dB <=0.20dB <=0.20dB <=0.30dB
Return Loss(dB) >=50dB >=55dB >=60dB -
Durability(1000 matings) <=0.20dB
Operating Temperature -40~+85℃
Storage Temperature -40~+85℃
Cable Diameter(mm) 0.9/2.0/3.0
Cable Length(m) 1M, 2M, 3M, 5M, Customized
Specification S.M M.M
PC UPC APC
Insertion Loss(dB) <=0.30dB <=0.20dB <=0.20dB <=0.30dB
Return Loss(dB) >=50dB >=55dB >=60dB -
Durability(1000 matings) <=0.20dB
Operating Temperature -40~+85℃
Storage Temperature -40~+85℃
Cable Diameter(mm) 0.9/2.0/3.0
Cable Length(m) 1M, 2M, 3M, 5M, Customized

Pigtails are used for splice applications when terminating outside plant cable. It’s consists of a connector and a special length



1M 0.9mm Buffer 12 Strand Fiber Optic Cable MM SM 0





Multimode fiber (MMF) is a kind of optical fiber mostly used in communication over short distances, for example, inside a building or for the campus. Multimode fiber optic cable has a larger core, typically 50 or 62.5 microns that enables multiple light modes to be propagated. Because of this, more data can pass through the multimode fiber core at a given time. The maximum transmission distance for MMF cable is around 550m at the speed of 10Git/s. It can transmit farther at lower data rates, such as going about 2km at 100Mb/s

.

1M 0.9mm Buffer 12 Strand Fiber Optic Cable MM SM 1

Fiber Optic Pigtail Splicing: Easy and Fast Fiber Termination


The quality of fiber pigtail is typically high because the connectorized end is attached in the factory, making it more accurately than a field-terminated cables. It can be attached to optical fibers by fusion or mechanical splicing. Given the access to a fusion splicer, you can splice the pigtail right onto the cable in a minute or less, which greatly speeds the splicing and saves significant time and cost spent on field termination. While for mechanical fiber optic pigtail splicing, it precisely holds a fiber optic pigtail and fiber patch cord together, the joint could be temporary or permanent, enabling light to pass from one fiber to the other. Always ordering fiber pigtail assembly a few feet more than you’ll need. The extra slack allows for splicing errors to be corrected. Besides, selecting fiber pigtail assembly with reliable quality would made the splicing process way easier.









1.Are you the real manufacturer?
Us. We are the real manufacturer with 15 year’s history.


2.What’s the MOQ?
Us. The MOQ of Fiber Optic cable is 1km

.
3.What’s delivery time?
Us. The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.


4.How to Store the Optical Fiber Cable Properly?
Us. Store the drum indoor before using, the drum should place sideways not on the end.


5. Can you supply customized products and logo?
Yes. We supply OEM service. You can send us your drawing.


6.What’s your payment terms?
Us. We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70% before shipment.





Payment term and delivery



1. Payment : T/T , L/C , Paypal , Westen Union , Moneygram

2. 30% deposit in advance , 70% balance paid before delivery .

3. Package : internatinal standard package ( OPP bag + Carton Box )

4. Delivery time : 2-7 working days ( according to your quantity )after received payment .

5. Warranty : 3 year (after delivery ) .

6. Shipping method : BY air ( DHL , TNT , UPS ,Fedex ) , By sea (according to your requirements ).
