Product Details:
|
| Connector Type: | Mtp | Mode Type: | MM/SM |
|---|---|---|---|
| Cable Color: | 8/12 | Cable Diameter: | 3.0mm 0.9mm |
| Cable Length: | 15m/5m/10m | Insertion Loss: | ≤0.35db |
| Return Loss: | APC≥65dB; PC≥55 | ||
| High Light: | MPO To MPO Jumper Fiber Cable,100G mpo fiber jumper,PVC mpo fiber jumper |
||

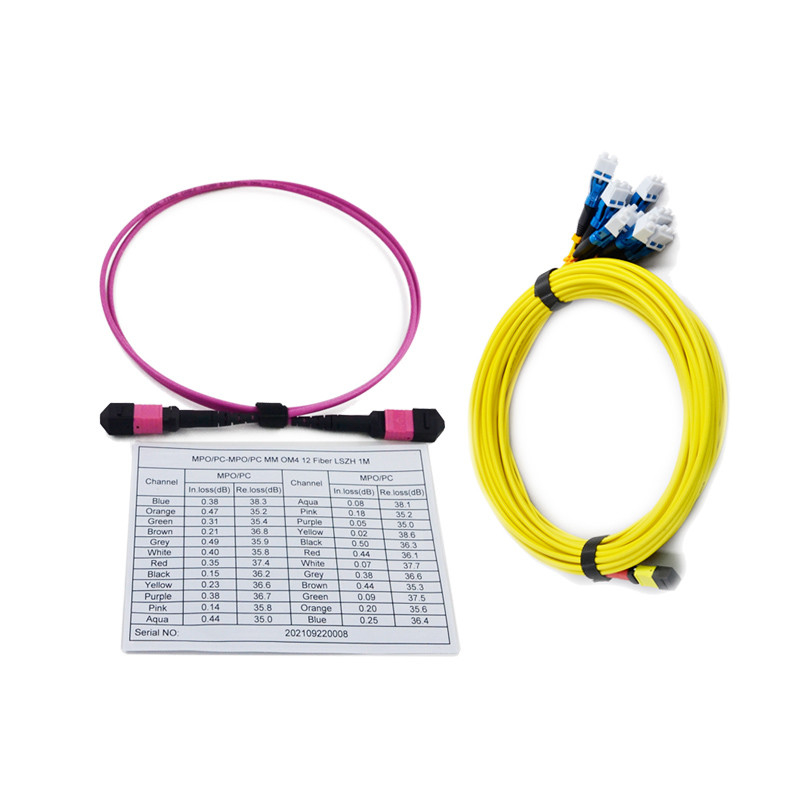

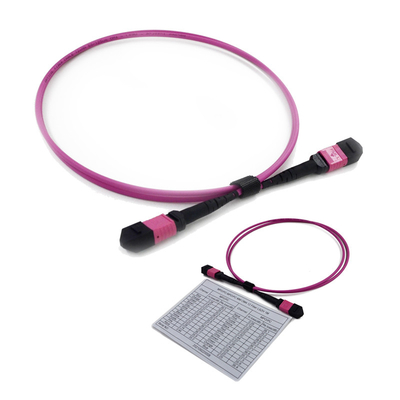

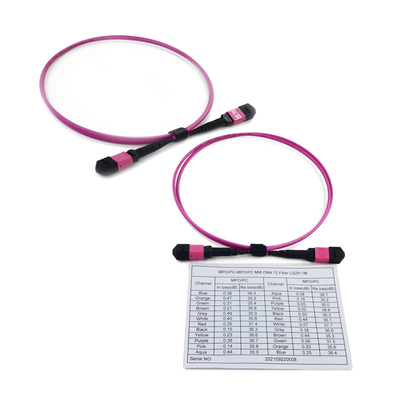

Low insertion loss 3.0mm 100G MPO to MPO Jumper Patch cord with Female Connector 10m
Overview of
Low insertion loss 100G MPO to MPO Jumper Patch cord with Female Connector 10m
Data centers nowadays are undergoing great migration to higher speed networks. Considering the inevitable cabling growth in 40/100G high-density environment, 12-fiber and 24-fiber MTP/MPO cabling is introduced as an ideal and feasible solution. This article provides a basic understanding of MTP/MPO cabling system, which may help to deliver solid MTP/MPO interconnection with proper polarity management.
In any installation, it is important to ensure that the optical transmitter at one end is connected to the optical receiver at the other. This matching of the transmit signal (Tx) to the receive equipment (Rx) at both ends of the fiber optic link is referred to as polarity. The polarity of MTP/MPO cabling in 40G/100G has haunted many cable managers. Fortunately, there are approaches that can facilitate correct MTP/MPO polarity maintenance in serial duplex signals connections and parallel signals connections.
Polarity Matters in MTP/MPO Cabling Link
Migration from 10G to 40/100G requires a simple yet robust pathway. And this pathway is centered around MTP/MPO connectivity. To maintain the correct polarity in MTP/MPO systems, the property of the components of MTP/MPO systems should be understood firstly. So, this section begins with a presentation of the basic components needed for MTP/MPO cabling system.
MTP/MPO Connector
MTP/MPO connector can house anywhere from 6 to 72 fibers, with 12-fiber arrays being the most common. MTP/MPO connector is available in a male version (with pins) or a female version (without pins). The pins ensure that the fronts of the connectors are exactly aligned on contact and that the endfaces of the fibers are not offset. There are guide grooves (keys) on the top side of the MTP/MPO connector, which ensures that the adapter holds the connector with the correct ends aligned with each other. A white dot is additionally marked on one side of the connector to denote where the position 1 is. The orientation of this key also determines the MTP/MPO cable's polarity.
Products info
| Fiber count | 12 | Fiber Mode | 9/125μm |
| Connector Type1 | LC | Connector Type2 | Unterminated |
| Fiber Mode | SM | Breakout length | 1.5m |
| Wavelength | 1310/1550nm | Jacket Material | PVC/LSZH |
| Insertion loss | ≤0.25dB | Interchangeability | ≤0.2dB |
| Return loss | ≥50dB | Vibration | ≤0.2dB |
| Operating temperature | -40~75°C | Storage temperature | -45~85°C |
Geometric Specification (only for 3D interferometer tested)
| Type | Vertex offset(um) | Curvature radius(mm) | Feber Height(nm) | Angle offset(°) |
| 2.5mm UPC | ≤50 | 10~25 | (-50, +50) | None |
| 2.5mm APC | ≤50 | 5~12 | (-50, +50) | 8±0.2 |
| 1.25mm UPC | ≤50 | 7~25 | (-50, +50) | None |
| 1.25mm APC | ≤50 | 5~12 | (-50, +50) | 8±0.2 |
