|Name:||MPO MTP Cable||Material:||LSZH, OFNP Or OFNR|
|Mode Type:||OM3 OM4 OS2||Core Type:||8/12 /24core|
|Connector:||MPO||Color:||Aqua,orange,yellow,Yellow/ Red/ Aqua|
LSZH Jacket MPO OM4 Cable,
LSZH Jacket MPO 12 Fiber Cable,
OM4 MPO 24 Fiber Cable
12 24 Fibers MPO OM4 Cable Multimode Strands With LSZH Jacket
12 24 Fibers OM3 Multimode Strands Polarity A Plenum om4 fiber cable
Description om4 fiber cable
MPO-MPO-OS2-24B is MPO to MPO Female, OS2 Singlemode, 24 Fiber, Type B cable available in length from 1 meter to 50 meters. This MPO to MPO cable use 9/125 micron Singlemode fiber with cable jacket diameter of 3 mm. Cable jacket material is available in two options – Low Smoke Zero Halogen (LSZH) or Optical Fiber Nonconductive Plenum (OFNP). The LSZH cable jacket ensures lower smoke and zero smoke characteristics, but OFNP cables have fire-resistance and low smoke production characteristics. OFNP is the highest fire rating fiber cable and no other cable types can be used as substitutes. MPO to MPO cable supports 1310nm and 1610nm wavelengts, and it`s attenuation at 1310nm is 0.35dB/km and at 1610nm is 0.22dB/km which ensures best performance at long distances. MPO to MPO cable guarantees the best standard grade insertion loss which is below 0.7dB. Operating temperature is rated to -20C to +70C which suits wide range of environments. MPO-MPO-OS2-24B MPO to MPO cable is manufactured with Type B crossover configuration to support transceiver to transceiver or transceiver to patch panel high speed 100G Data Center applications.
MPO-MPO-OS2-24B patch cable is CE/RoHS certified and is compliant with product safety standards. MPO to MPO cable is fully compliant to ISO/IEC-61754, EN 50399 and EN 50575 specification. Consequently, compliance to above standards guarantees that MPO to MPO cable is intermateable with other manufacturer equipment (cables, cassetes, adapters). And as well ensures that cable jacket fully meets its material properties.
Type: Fiber Optic Trunk Cable
Connector: MPO Female to MPO Female
Fiber Count: 12 24
Polarity: Type B
Fiber Type: OS2 9/125um Single-Mode Fiber (SMF)
Jacket Type: LSZH | OFNP
Wavelength: 1310 | 1610 nm
Operating Temperature: -20°C to +70°C
Cable Length: 1m to 50m
Available in three polarity types:
Type-A (Straight Through)
Type-B (Cross, Flipped)
Type-C (Cross Pair, Rollover)
• Factory-terminated provide consistent quality, high performance and reduce installation time
• 100% tested for low insertion loss performance and high return loss

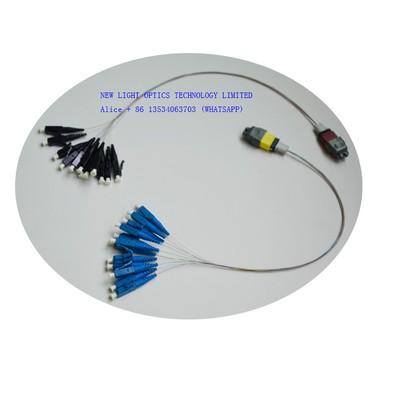

• MPO Female to 4 x LC duplex harness cable
• Suitable for MPO application
• OM4 (OM3) 50/125μm Fiber
• Type B polarity, used for 40G QSFP eSR4 and 10GBASE-SR optics interconnect
• Optimized performance – available in elite MTP and discrete premium connector upon request
• Comply with IEC 61754-7, TIA/EIA 604-5, Telcordia GR-1435-CORE and RoHS
• LSZH Jacket by Default
MPO fiber patch cable is compliant to IEC-61754-7 and TIA-604-5(FOCIS-5) standard. It can be widely used for
MPO MTP Cable Overview
New Light factory MTP/MPO harness cables and MTP/MPO trunk cables are two common kinds of MTP/MPO fiber cables. They differ from each other in such aspects as function and application.
Choose Your Polarity
Type A - Straight: Straight-through polarity is typically for connecting patch panels. They are wired in a mirrored configuration, going from Pin 1 on one connector end to Pin 1 on the opposite end, etc.
Type B - Rollover: Rollover polarity is used primarily for connecting to switches and transceivers in 40Gb applications. In a 12-strand rollover polarity, the cable is wired from Pin 1 on one connector end to Pin 12 on the opposite end. Then 2 to 11, and so forth.
Type C - Flipped: Pair-Flipped polarity is the most commonly used polarity type for this cable, and typically used in cassette-to-cassette applications. Pin 1 on one end goes to Pin 2 on the opposite end, and 2 to 1, 3 to 4, 4 to 3, and so on. This is the default polarity option, but you can select your desired polarity from our drop-down menu above.
MPO MTP Cable Technical Parameter
|Connector||MPO/MTP(F or M)||MPO/MTP (F or M)|
|Operation Temperature||-40°C ~ +80°C|
|Storage Temperature||-40°C ~ +85°C|
SM: ≤ 0.75dB (standard value), ≤0.35dB (typical value);
MM:≤ 0.50dB (standard value), ≤0.35dB (typical value);
|Return Loss||SM:≥60dB; MM:≥35dB|
|The MPO end type||Male: with guide pin; Female: without guide pin|
|Fiber count||8,12&24 fiber|
|Connector type of the other end||MPO-female , MPO-male , FC , SC , ST , MU , LC , E2000|
|Fiber mode||Single-mode (G652,G655,G657), multi-mode (50, 62.5, OM2, OM3, OM4)|
|Fiber cable type||250um ribbon fiber,ribbon cable,Bundle fiber optic cable|
The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.
