Product Details:
|
| Use: | Optical Transmission Network | Package Style: | SFP |
|---|---|---|---|
| Components: | 1.25G 60km SFP Transceiver | Power Supply: | +3.3V |
| Size: | 110*40*20mm | Application Area: | 90-120㎡ |
| Working Temperature: | 0℃～ +70℃ | Support: | SFP 1.25G 40km Tx1550nm LC DDM |
| High Light: | 1.25G 60km SFP Transceiver,3.3V SFP Fiber Optic Module |
||
This transceiver can operate within a temperature range of 0℃～ +70℃, making it ideal for use in both indoor and outdoor settings. It comes equipped with a Duplex LC connector, which provides a secure and stable connection for data transfer.
The transceiver supports DDM, which allows for real-time monitoring of the device's operating parameters, ensuring that it is always functioning at optimal levels. Additionally, this device supports 10/100/1000 Mbps data transfer rates, making it a versatile and high-speed networking solution.
The transceiver operates at a wavelength of 1310nm and is designed for single mode fiber optic cables, which provide a long-range data transmission solution. This makes it ideal for use in large-scale networking environments, such as data centers, enterprise networks, and telecommunications networks.
In summary, the Fiber Optic Transceiver is a reliable and versatile networking solution, capable of supporting a wide range of applications and environments. Its support for 10/100/1000 Mbps data transfer rates, 1310 wavelength, and single mode fiber optic cables make it an ideal choice for high-speed, long-range data transmission.
| Parameter | Specifications |
| Access mode | 10/100/1000Mbps |
| Standard | IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit thernet,IEEE802.1qVLAN,IEEE802.1p QoS,IEEE802.1d Spanning Tree |
| Wavelength | Mulitmode:850; Single-mode:1310/1550nm |
| Distance |
Category-5 twisted pair: 100m Fiber:multi-mode 50/125,62.5/125μm(the max distance up to(220m or 550m) Fiber:Single -mode 8/125,8.7/125,9/125,10/125μm(the max distance up to 20 -80km) |
| Port |
One RJ45 port: For connecting STP/UTP category-5 twisted pairs One optical port: Multi-mode, dual fiber: SC (50, 62.5/125μm) Single mode, dual fiber: SC or FC (9/125μm) Single mode Single fiber: SC or FC (9/125μm) |
| Conversion means | Media conversion |
| MAC address table | 1K |
| Buffer space | 256kbit |
| Flow control |
Full duplex: flow control; Half duplex: back pressure |
| Delay | Store-and-forward: 9.6μs; cut-through: 0.9μs |
| BER | <19-9 |
| MTBF | 100,000 hours |
| LED indicator | PWR (power supply), FX LINK (optical link action), TP LINK1000 (twisted pair link1000M), TP LINK100 (twisted pair link 100M), TP ACT (twisted pair packet forwarding) |
| Power supply | DC5V 1A (external), DC12V, AC220V 0.5A/DC-48 (internal) |
| Power consumption | 5W |
| Operating temperature | -10~55ºC |
| Operating humidity | 5%~90% |
| Maintaining temperature | -40~70ºC |
| Maintaining humidity | 5% ~ 90% non-condensing |
| Dimensions |
External power supply: 26mmx 70mm x 95mm Internal power supply: 30mm x 110mm x 140m |

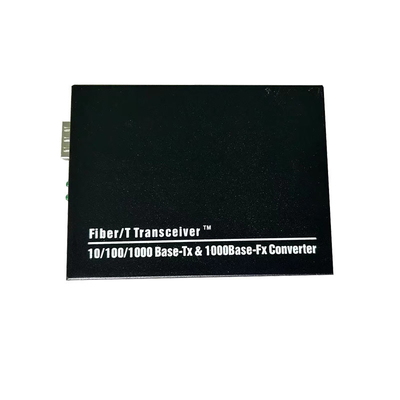

The NEW LIGHT Fiber Optic Transceiver product is equipped with LC connectors and Tx1550nm DFB technology, making it ideal for singlemode applications. It can support data transfer rates of up to 1.25Gbps, making it compatible with 10/100/1000 Mbps networks. The working temperature range of this product is 0℃ to +70℃, ensuring optimal performance in a variety of environments.
This product is suitable for a wide range of product application occasions and scenarios. It can be used in data centers, server rooms, and other enterprise-level applications for reliable and high-speed data transmission. It is also suitable for use in telecommunications, broadcasting, and other industries that require high-speed and secure data transfer. Additionally, it is an excellent choice for connecting routers, switches, and other networking devices in a variety of settings.
The NEW LIGHT Fiber Optic Transceiver product is an excellent choice for customers who require a reliable and high-performance solution for their networking needs. Its small form factor, high compatibility, and durable design make it an ideal choice for a wide range of applications and scenarios. With its 1-year warranty and fast shipping options, customers can be confident in their purchase and rely on this product for their data transmission needs.

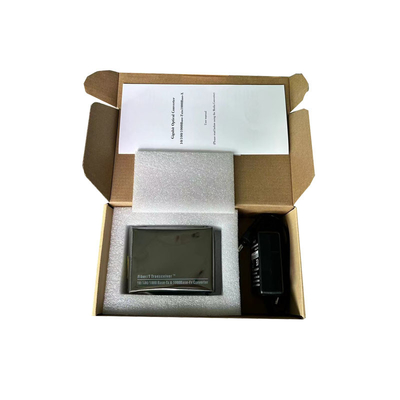

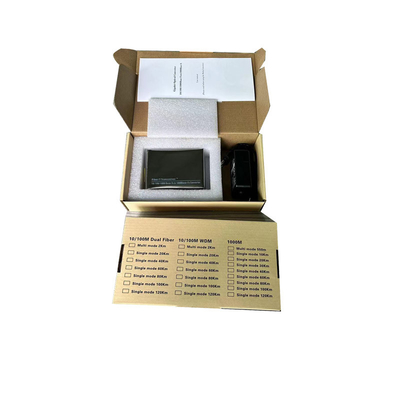

Product Packaging:
Shipping:
Q: What is the brand name of this fiber optic transceiver?
A: The brand name of this fiber optic transceiver is NEW LIGHT.
Q: What is the model number of this fiber optic transceiver?
A: The model number of this fiber optic transceiver is NLM-GE00-SFP.
Q: Where is this fiber optic transceiver manufactured?
A: This fiber optic transceiver is manufactured in China.
Q: What type of cable does this fiber optic transceiver support?
A: This fiber optic transceiver supports single-mode and multi-mode fiber optic cables.
Q: What is the maximum data transfer rate of this fiber optic transceiver?
A: The maximum data transfer rate of this fiber optic transceiver is 1Gbps.
