Product Details:
|
| Description: | LC Connector, Tx1550nm, DFB, Singlemode | Shipment: | DHL,Fedex,UPS,TNT,EMS |
|---|---|---|---|
| Data-rate: | 1.25Gbps Operation | Application Area: | 90-120㎡ |
| Size: | 110*40*20mm | Connetor: | Duplex LC |
| Warranty: | 1 Years | Components: | 1.25G 60km SFP Transceiver |
| High Light: | 1.25Gbps SFP Transceiver,Long Distance SFP Transceiver,Lc Duplex 1.25Gbps SFP Transceiver |
||
The Fiber Optic Transceiver is equipped with a Duplex LC connector, ensuring a secure and stable connection during operation. Additionally, it features an LC interface, making it compatible with a wide range of networking equipment.
The transceiver is designed to operate over single mode fiber, providing high-speed data transfer rates of up to 1.25Gbps. Its Tx1550nm DFB technology ensures reliable data transmission even over long distances.
With a power supply of +3.3V, this transceiver is energy-efficient and cost-effective. It is perfect for use in a variety of settings, including data centers, telecom networks, and enterprise networks.
In summary, the Fiber Optic Transceiver is a reliable and efficient solution for your optical transmission network needs. With its 1.25G SFP, single mode, LC interface, and other advanced features, it provides superior performance and reliability for your networking needs.
| Parameter | Specifications |
| Access mode | 10/100/1000Mbps |
| Standard | IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit thernet,IEEE802.1qVLAN,IEEE802.1p QoS,IEEE802.1d Spanning Tree |
| Wavelength | Mulitmode:850; Single-mode:1310/1550nm |
| Distance |
Category-5 twisted pair: 100m Fiber:multi-mode 50/125,62.5/125μm(the max distance up to(220m or 550m) Fiber:Single -mode 8/125,8.7/125,9/125,10/125μm(the max distance up to 20 -80km) |
| Port |
One RJ45 port: For connecting STP/UTP category-5 twisted pairs One optical port: Multi-mode, dual fiber: SC (50, 62.5/125μm) Single mode, dual fiber: SC or FC (9/125μm) Single mode Single fiber: SC or FC (9/125μm) |
| Conversion means | Media conversion |
| MAC address table | 1K |
| Buffer space | 256kbit |
| Flow control |
Full duplex: flow control; Half duplex: back pressure |
| Delay | Store-and-forward: 9.6μs; cut-through: 0.9μs |
| BER | <19-9 |
| MTBF | 100,000 hours |
| LED indicator | PWR (power supply), FX LINK (optical link action), TP LINK1000 (twisted pair link1000M), TP LINK100 (twisted pair link 100M), TP ACT (twisted pair packet forwarding) |
| Power supply | DC5V 1A (external), DC12V, AC220V 0.5A/DC-48 (internal) |
| Power consumption | 5W |
| Operating temperature | -10~55ºC |
| Operating humidity | 5%~90% |
| Maintaining temperature | -40~70ºC |
| Maintaining humidity | 5% ~ 90% non-condensing |
| Dimensions |
External power supply: 26mmx 70mm x 95mm Internal power supply: 30mm x 110mm x 140m |
The Fiber Optic Transceiver is designed for use in scenarios that require high-speed data transfer over long distances. Its single mode fiber optic technology allows it to transmit data without interference, making it ideal for use in industrial automation, video surveillance, and enterprise network solutions.
The transceiver's working temperature range of 0℃～ +70℃ ensures reliable performance even in extreme conditions. It has a data rate of 1.25Gbps operation, which ensures quick and efficient data transfer.
The Fiber Optic Transceiver is suited for a variety of occasions and scenarios, including data centers, telecommunication networks, and metropolitan area networks. With its LC connector, Tx1550nm, DFB, and Singlemode attributes, it is a reliable and high-performance solution for organizations that require dependable data transmission.
Product Packaging:
Shipping:
Q: What is the brand name of the fiber optic transceiver?
A: The brand name of the fiber optic transceiver is NEW LIGHT.
Q: What is the model number of the fiber optic transceiver?

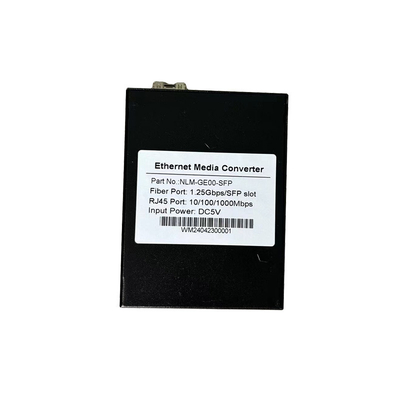

A: The model number of the fiber optic transceiver is NLM-GE00-SFP.
Q: Where is the fiber optic transceiver manufactured?
A: The fiber optic transceiver is manufactured in China.
Q: What type of connector does the fiber optic transceiver use?
A: The fiber optic transceiver uses an SFP connector.
Q: What is the data rate of the fiber optic transceiver?
A: The data rate of the fiber optic transceiver is 1Gbps.
