Product Details:
|
| Description: | LC Connector, Tx1550nm, DFB, Singlemode | Size: | 110*40*20mm |
|---|---|---|---|
| Working Temperature: | 0℃～ +70℃ | Support: | SFP 1.25G 40km Tx1550nm LC DDM |
| Components: | 1.25G 60km SFP Transceiver | Power Supply: | +3.3V |
| Data-rate: | 1.25Gbps Operation | Ddm: | Yes |
| High Light: | LC Interface Fiber Optical Media Converter,Secure Shipment Fiber Optical Media Converter,Tx1550nm Fiber Optical Media Converter |
||
With a 1-year warranty, you can trust that our transceiver is built to last. It's also designed with a convenient SFP package style, making it easy to install and use in a variety of environments.
Our Fiber Optic Transceiver is ideal for use in spaces ranging from 90-120㎡, making it a great choice for small to medium-sized businesses. And with a power supply of +3.3V, you can be sure that it will deliver reliable performance day after day.
Other key features of our Fiber Optic Transceiver include a 1310 wavelength, LC interface, and LC DDM. These features ensure that you get the best possible performance from your transceiver, no matter what your specific needs may be.
So why wait? Order your Fiber Optic Transceiver today and experience the power and reliability that only our product can provide. We're confident that you'll love it, and we're always here to help if you have any questions or concerns.
| Parameter | Symbol | Min | Typ | Max | Unit | Ref. |
| Transmitter | ||||||
| Output Opt. Pwr (End of Life) | POUT | -2 | 3 | dBm | 1 | |
| Optical Wavelength | λ | 1270 | 1310 | 1360 | nm | |
| Wavelength Temperature Dependence | 0.08 | 0.125 | nm/°C | |||
| Spectral Width (-20dB) | σ | 3.0 | nm | |||
| Optical Extinction Ratio | ER | 10 | dB | |||
| Sidemode Suppression ratio | SSRmin | 30 | dB | |||
| Optical Rise/Fall Time | tr/ tf | 100 | 160 | ps | ||
| RIN | RIN | -120 | dB/Hz | |||
| Transmitter Jitter (peak to peak) | 100 | ps | ||||
| Receiver | ||||||
| Average Rx Sensitivity @ Gigabit Ethernet | RSENS3 | -25.0 | dBm | 2 | ||
| Maximum Input Power | PMAX | -3.0 | dBm | |||
| Optical Center Wavelength | λC | 1260 | 1310 | 1620 | nm | |
| LOS De -Assert | LOSD | -26 | dBm | |||
| LOS Assert | LOSA | -40 | dBm | |||
| LOS Hysteresis | 1.0 | dB | ||||
| Receiver Jitter Generation @1.25Gbps | 160 | ps | 3 |
This Fiber Optic Transceiver has a single mode and operates at a 1310 wavelength, making it ideal for long-distance transmissions. The LC DDM feature ensures accurate monitoring of the transceiver's performance, allowing for efficient troubleshooting and maintenance.
The NLM-GE00-SFP Fiber Optic Transceiver is a great choice for a range of occasions and scenarios. It can be used in data centers, enterprise networks, telecom networks, and more. It is also suitable for connecting devices such as switches, routers, and servers.
With its reliable performance and versatility, the NLM-GE00-SFP Fiber Optic Transceiver is an excellent choice for anyone in need of a high-quality optical transmission solution. So, whether you're looking to build a new network or upgrade an existing one, this transceiver is sure to meet your needs.

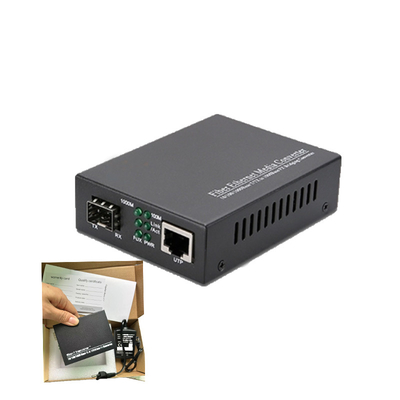

Product Packaging:

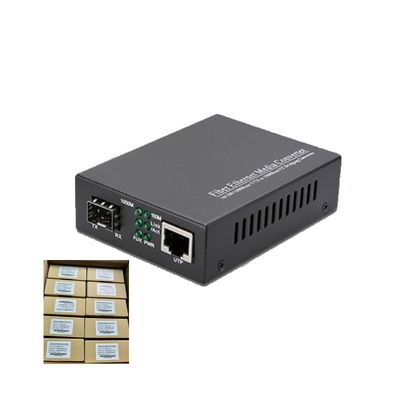

Shipping:
Q: What is the brand name of this Fiber Optic Transceiver?
A: The brand name of this Fiber Optic Transceiver is NEW LIGHT.
Q: What is the model number of this Fiber Optic Transceiver?
A: The model number of this Fiber Optic Transceiver is NLM-GE00-SFP.
Q: Where is this Fiber Optic Transceiver manufactured?
A: This Fiber Optic Transceiver is manufactured in China.
Q: What type of data transmission does this Fiber Optic Transceiver support?
A: This Fiber Optic Transceiver supports Gigabit Ethernet data transmission.
Q: What is the maximum distance that this Fiber Optic Transceiver can transmit data?
A: This Fiber Optic Transceiver can transmit data up to a maximum distance of 550 meters.
