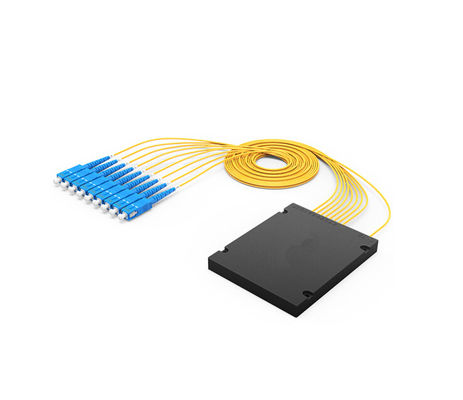

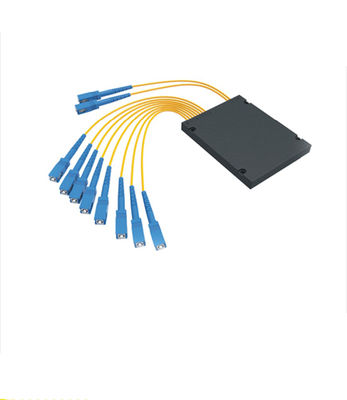

2x8 PLC Fiber Optic Splitter with 1260-1650nm Wavelength and Low Insertion Loss for CATV and FTTX

Brand Name:	New Light
Model Number:	LC / FC / SC / ST / E2000
MOQ:	10
Price:	1~30
Packaging Details:	export packing
Payment Terms:	L/C,T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Brand Name:

New Light

Fiber Type:

2.0/3.0

Connector Type:

LC / FC / SC / ST / E2000

Operating Wave:

1260-1650

Mode Type:

Single Mode

OEM / ODM:

Acceptable

Fiber Length:

1.5 M ( As Your Requirement )

Warranty:

3 Years

Delivery Time:

2-10 Working Days After Receive Payment

Payment:

T/T , L/C , Paypal , Westen Union , Money Gram

Products Name:

1 / 2 X 8 SC / UPC Fiber Optic Splitter / FWDM 2.0 / 3.0 Um 1.5 M For CATV

Supply Ability:

1000000

Highlight:

fiber optic plc splitter

fiber optic cable splitter

Product Description

1x2 SC Coupler Fiber Optic Splitter 900μm 1260-1650nm Operating Wavelength

1/2 x 8 SC/UPC Fiber Optic Splitter/FWDM 2.0/3.0μm 1.5M for CATV

The 2x8 PLC Splitter divides or combines 2 signal inputs to 8 outputs. Planar splitters are passive components that split optical signals into optical fibers. They feature low insertion loss and compact design, making them ideal for installation in sleeves, CVT's or ODF's. These splitters are used in PON (passive optical networks) fiber optic networks to split fibers according to the split factor, enabling transfer of up to 64 ports via a single fiber.

Quick Details

Split ratio: 2:8
Type: mini module PLC Splitter (mini steel tube package)
Input/output pigtail: 0.9mm, 1m or 1.5m length
Input/output connector: SC/UPC or SC/APC connector, LC connector available
Fiber type: Singlemode G657A1
Wavelength: 1260~1650nm

Key Features

Low Insertion loss
Low PDL (Polarization Dependent Loss)
Wide Operating Wavelength: From 1260nm to 1650nm
Excellent Environmental & Mechanical Stability

Applications

FTTX (FTTB, FTTH, FTTC) Systems
Cable Television (CATV)
Optical Signal Distribution
Passive Optical Network (PON)

Compliance Standards

Telcordia GR-1209-CORE
Telcordia GR-1221-CORE
RoHS

Technical Specifications

Port Configuration	2X2	2X4	2X8	2X16	2X32	2X64
Operating Wavelength (nm)	1260 ~ 1650
Insertion Loss (dB) Typical	3.8	7.2	10.6	14	16.8	20.8
Insertion Loss (dB) Max	4.2	7.8	11.2	14.6	17.9	21.5
Channel Uniformity (dB)	1	1.4	1.5	2.0	2.5	2.5
PDL (dB)	0.2	0.2	0.4	0.4	0.4	0.5
WDL (dB)	0.6	0.6	0.8	0.8	0.8	1
TDL (-40ºC ~ 85ºC)(dB)	0.5	0.5	0.5	0.8	0.8	1
Dimensions for Fan-out (mm)	60(L)X7(W)X4(H)	80(L)X12(W)X4(H)	80(L)X20(W)X6(H)
RL (dB)	> 50dB
Directivity (dB)	> 55dB
Fiber Type	G652D
Operating Temperature Range	-40ºC ~ 85ºC

Order Information

PLC Splitter Type - Input/Output Count - Input Connector Type - Input Tube Type - Input Tube Length - Output Connector Type - Output Tube Type - Output Tube Length

Packaging & Shipping

Packaging: Bags & carton box

Shipping Methods: International Express: FedEx, DHL, UPS, TNT and EMS, or by sea. Please notify us in advance if you have a preferred carrier.

FedEx Overnight: 1-3 business days (weekends and holidays excepted)

DHL: 2-4 business days (weekends and holidays excepted). For Spain, Italy, Brazil and some other countries, delivery may take longer due to customs clearance.

Delivery & Payment

Payment Methods: T/T, PAYPAL, Western Union, Money Gram, L/C

Payment Terms: 30% deposit in advance, 70% balance paid before delivery

Our Services

"One to one" dedicated service: Sales representatives serve only five clients each, ensuring personalized attention and long-term partnership.

Perfect after-sales service: 24-hour designated telephone number, email support, and dedicated customer manager.

Long warranty: 3 years warranty. Free polishing or testing for non-artificially damaged cables (customer pays for freight).
