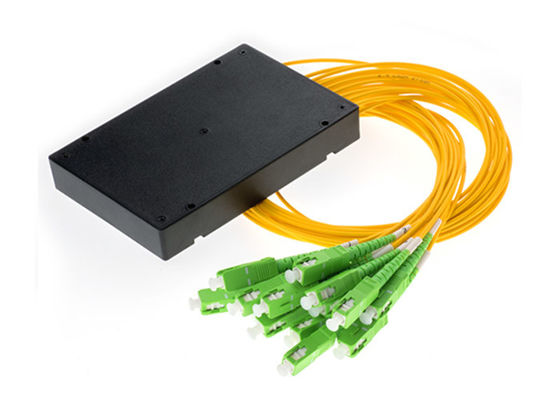

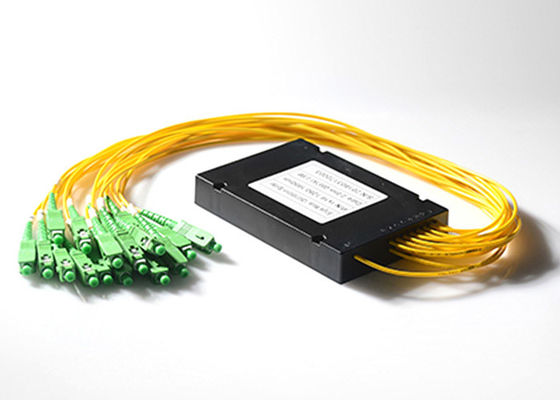

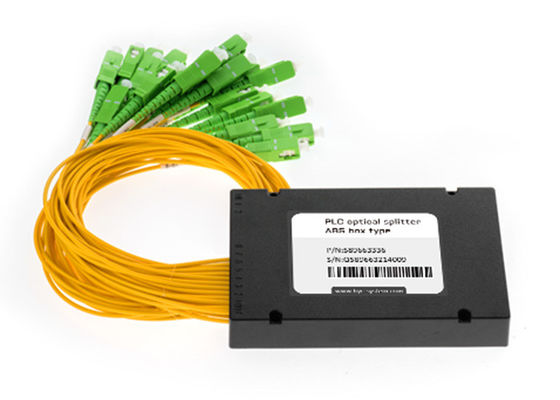

Custom 1x16 Channel PLC Fiber Optic Splitter with SC/APC Connector in ABS Box Type

Brand Name:	New Light
Model Number:	ABS Box
MOQ:	10
Price:	1~30
Packaging Details:	export packing
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Brand Name:

New Light

Connector Type:

SC/APC

Mode Type:

Single Mode

OEM / ODM:

Acceptable

ABS Box Color:

Black

Certificate:

CE , ISO , RoHS

Delivery Time:

2-7 Working Days After Received Deposit

Payment Term:

T/T , 30% Deposit In Advance

Cable Length:

1.5m Or Customized

Cable Diameter:

0.9mm, 2.0mm Or 3.0mm

Supply Ability:

1000000

Highlight:

single mode fiber splitter

fiber optic cable splitter

Product Description

Custom Optical Sound Cable Splitter, Passive Fiber Splitter Multi Mode

1x16 PLC Fiber Optic Splitter ABS Box Type with SC/APC Connector

Fiber Optic Splitter Description

Planar waveguide light optical distributor (PLC Splitter) is a planar waveguide integrated optical device that preserves optical power across a wide wavelength range of 1260nm to 1650nm. This wavelength coverage includes the 1310nm, 1490nm, and 1550nm wavelengths used in EPON technology, making it particularly suitable for EPON Ethernet passive optical network access technology and FTTP fiber network systems in broadband passive optical distributor (POS) applications.

PLC optical splitters are primarily used for optical signal coupling and distribution in passive optical network (PON) systems. They offer wavelength insensitivity, high stability, and uniform splitting capabilities, making them one of the most important passive devices in optical networks. Widely deployed in metropolitan area networks (MAN), local area networks (LAN), FTTX systems, and other fiber optic applications.

Fiber Optic Splitter Applications

FTTx Systems
Digital, hybrid and AM-Video systems
LAN, WAN and Metro Networks
CATV systems
Other applications in fiber optic systems

Fiber Optic Splitter Features

Low Insertion loss and Low PDL
Uniform power splitting
High reliability
Excellent environmental stability
Compact size and various package options

Fiber Optic Splitter Specifications

Item	Unit	PLC Optical Splitter ABS Box Type
Operating Wavelength	nm	1260~1650
Fiber Type	/	G652D/G657A1/G657A2
Tube Type	um	250um Fiber, 600um or 900um loose tube
Channel Type	/	1x4, 1x8, 1x16, 1x32, 1x64, 1x128
Insertion Loss	dB	≤7.2, ≤10.5, ≤13.7, ≤17.0, ≤20.6, ≤24.5
Uniformity	dB	≤0.6, ≤0.8, ≤1.2, ≤1.5, ≤2.0, ≤2.5
PDL	dB	≤0.2, ≤0.2, ≤0.3, ≤0.3, ≤0.35, ≤0.35
TDL	dB	≤0.5
Return Loss	dB	≥55
Directionality	dB	≥55
Working Power	mW	≤500
Operating temperature	℃	-40~+85
Storage temperature	℃	-40~+85
Package size	mm	100x80x10, 120x80x18, 140x115x18

* Specifications provided without connector

CAD Drawing

The PLC optical splitter ABS box type is available in various split modes and package types, and can be customized according to customer requirements.

Packaging

Products are packaged in OPP bags with carton boxes for external protection to ensure safe delivery and prevent damage during transportation.

Frequently Asked Questions

Q: Are you manufacturer?

A: Yes, we are a manufacturer located in Shenzhen, China.

Q: What's your MOQ?

A: MOQ can be 1 piece, but we recommend larger quantities for better pricing as single unit costs are higher.

Q: What's the price?

A: Pricing varies by quantity. We provide competitive pricing for bulk orders upon request.

Q: Can you quote FOB price?

A: We primarily ship via air couriers (DHL, TNT, UPS, FEDEX). EXW or CFR pricing is preferred for most orders.

Q: How is your quality?

A: We produce according to IEC and European standards in near dust-free workshops using imported production and quality control equipment. All products undergo 100% testing before delivery.

Q: What's your lead time?

A: We maintain three factories in China with rapid production capabilities. Standard patch cords: 2-3 working days for 5,000 pieces. Regular products are typically in stock.

Q: What's your warranty?

A: Patch cords include 2-year warranty for non-artificial damage. Artificial damage repairs are free, but customer covers shipping.

Q: What's your packing?

A: We use international export packaging and can print customer logos upon request.

Q: Can you do OEM/ODM?

A: Yes, we accept OEM/ODM orders and can sign confidentiality agreements.

Q: Can I have a sample?

A: Free samples available for adaptors, attenuators, patch cords, and pigtails (customer pays shipping). Higher-value products require sample charges.

Q: How can I order?

A: Contact us with product specifications and quantity. We'll provide pricing and lead time. Payment confirmation initiates production.

Q: What's your payment term?

A: T/T, Western Union, Paypal, MoneyGram. Large orders: 50% deposit, 50% balance before delivery.
