High Reliability Fiber Optic Splitter / SC APC 1x2 PLC Splitter For Local Area Networks

Brand Name:	New Light
MOQ:	10
Price:	1~30
Packaging Details:	export packing
Payment Terms:	Western Union, T/T, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Color:

Purple Cable,Green Connector

Connector Type:

Polish:

APC

Splitter:

1x2

Mode:

Single Mode

OEM:

Available

Supply Ability:

1000000

Highlight:

single mode fiber splitter

fiber optic cable splitter

Product Description

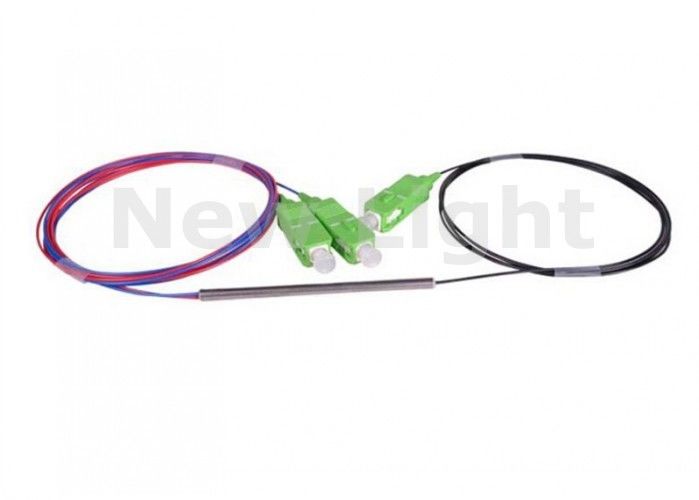

SC APC 1X2 PLC Singlemode Fiber Optical splitter FTTH SC APC1x2 PLC optical fiber splitter

Feature:

* Excellent Mechanical,Small Size
* High Reliability
* Low insertion Loss and low Polarization Dependent loss
* High channel counts
* Excellent Environmental Stability and Widely Used

Application:

Fiber to the point (FTTX)
Fiber to the home (FTTH)
Passive optical networks(PON)
Local area networks (LAN)
Cable television (CATV)
Test equipment

Specification:

1xN PLC Splitter Specification
Operating Wavelength(nm)	1260~1650
Fiber Type	G657A1 or as customers' order
Port Configuration	1x2	1x4	1x8	1x16	1x32	1x64	1x128
Insertion Loss (dB)	3.8/4.0	7.1/7.3	10.2/10.5	13.5/13.7	16.5/16.9	20.5/21.0	23.8/24.2
Loss Uniformity (dB)	0.4	0.6	0.8	1.2	1.5	2.0	2.5
Polarization Dependent Loss(dB)	0.2	0.2	0.2	0.25	0.3	0.35	0.4
Wavelength Dependent Loss(dB)	0.3	0.3	0.3	0.5	0.5	0.5	0.5
Temperature Dependent Loss (-40~85 ) (dB)	0.4	0.4	0.4	0.5	0.5	0.5	0.5
Return Loss (dB)			55/50
Operating Temperature			-40~+85
Directivity (dB)			≥ 55
Storage Temperature			-40~+85

Introduction:

Single Mode PLC Steel Tube type Fiber Optic Splitter (PLC Splitter) can not work with different ratio rather than it provide a accurate splitting in high-density output (like 8,16,32,64 outputs) However, The most common type of fiber optic splitter splits the output evenly, which is coming out with the same output of light signals. As a result of its great function, Optical splitter is a very important part in passive opitc networks (PON).

High Reliability Fiber Optic Splitter / SC APC 1x2 PLC Splitter For Local Area Networks 0
