WDM Single Mode Fiber Splitter 1x2 / 4 / 6 / 8 / 16 / 32 /64 SC / PC

Brand Name:	New Light
Model Number:	LC/ST/FC/SC/E2000
MOQ:	10
Price:	1~30
Packaging Details:	export packing
Payment Terms:	L/C, T/T, Western Union, MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Connector Type:

LC/ST/FC/SC/ MPO /MTP/MU/MTRJ/E2000

Cable Material:

PVC/ LSZH

Fiber Type:

G652D/G657A1/G657A2/OM1/OM2/OM3/OM4

Mode Type:

Single / Multi Mode

Core Type:

1:2 / 4/ 6 / 8 / 12 / 32 / 64 Core

Cable Diameter:

0.9/2.0/3.0

Cable Length:

Can Be Customized

Delivery Time:

2-7 Working Days After Receive Payment

Packing:

Opp Bag With Carton Box

Payment Term:

T/T ,30% Deposit In Advance , Balance Paid Before Delivery

Supply Ability:

1000000

Highlight:

fiber optic plc splitter

single mode fiber splitter

Product Description

Description :

1x2 / 4 / 6 / 8 / 16 / 32 /64 SC / PC optical Fiber Optical Splitter WDM

PLC splitter is based on planar Lightwave circuit technology and precision aligning process, can divide a single/dual optical input(s) into multiple optical outputs uniformly and is denoted 1xN or 2xN. PLC splitter is applied in FTTX deployments, PON networks, CATV links and optical signal distribution currently. DYSFO’ PLC splitter offers superior optical performance, high stability and high reliability, meet various application requirements in different environments.

Features

1. Low Insertion Loss

2. Low Polarization Dependent Loss

3. Wide Operation Wavelength

4. Wide Operation Temperature

5. High Stability and Reliability

6. Telcordia GR-1209 and GR-1221 Compliance

7. YD/T 2000.1-2009 Compliance (TLC Product Certificate Compliance)8.Good uniformity and low insertion loss

8. Excellent Mechanical

9. High Polarization Extinction Ratio & Excellent Uniformity

10. Fiber input: 0.9mm or 250μm fiber for choice

11. Fiber output: 250μm bare fiber (It is benefit for splicing)G.657A Fiber

12. Bare Fiber Type PLC Splitter Applications
13. Fiber to the point (FTTX)
14. Fiber to the home (FTTH)
15. Passive optical networks(PON, GEPON)
16. Local area networks (LAN)
17. Cable television (CATV)
18. Test equipment

Specifications:

Coupling Ratio	Insertion Loss(dB)
	Tap	Signal
50/50	2.8-3.6	≤3.6
45/55	3.3-3.9	≤3.0
40/60	3.8-4.5	≤2.6
35/65	4.2-5.0	≤2.2
30/70	4.6-5.7	≤1.9
25/75	5.8-6.7	≤1.6
20/80	6.7-7.6	≤1.2
15/85	7.8-9.0	≤0.98
10/90	9.3-11.0	≤0.63
5/95	12.4-14.0	≤0.41
1/99	18.6-21.0	≤0.25
Excess Loss(Typ.)(dB)	0.10
PDL(Max.)(dB)	0.15
Operating Wavelength(nm)	1310±40, 1550±40,1310/1550±40,1310/1550/1490±40 or custom wavelength
Directivity(dB)	≥55
Port Configuration	1×2 or 2×2
Note: All the data above does not include connectors

Parameter	Unit	Specification
Operating Wavelength	nm	1310±40, 1550±40,1490±10
(1×N)(2×N)		N=3	N=4	N=5	N=6	N=8	N=10		N=16		N=24	N=32
Fiber Type		Corning SMF-28e
IL(MAX)	dB	5.6	7.1	8.3	9.2	10.6	11.75	14.4		15.6		17.4
Uniformity	dB	0.5	0.7	1.1	1.3	1.5	1.7	1.8		2		2.2
Return Loss	dB	≥55
Directivity	dB	≥55
PDL	dB	0.2	0.2	0.3	0.3	0.3	0.3	0.4		0.5		0.5

Note: All the data above does not include connectors.

Advantage:

ALL PLC was complianced with Telcordia GR-1209-CORE & Telcordia GR-1221-CORE
We provide 2 year quality assurance
We accept customized
Free sample and fast delivery
For your protection,welcome to online place the order by Alibaba

Planar light wave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. We provide whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE requirements.

Applications

CATV;
Active device termination;
Telecommunication networks;
Metro;
Local Area Networks;
Data processing networks;
Test equipment;
Premise installation;
Wide Area Networks

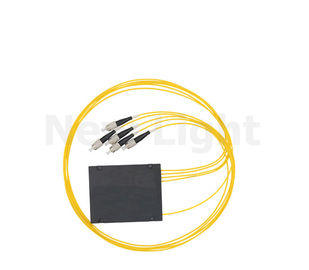

WDM Single Mode Fiber Splitter 1x2 / 4 / 6 / 8 / 16 / 32 /64 SC / PC 0

Types
1. Basic type PLC splitter
2. SFF type PLC splitter
3. 900um Fan-out Type PLC Splitter
4. Cassette type PLC splitter Module
5. Rack type PLC splitter Module
6. Tray assembly PLC splitter Module
7. Flat Quick-Connect Termination Type PLC Splitter Module

Connector type :

connoctor type	SC, ST, FC, LC, MU, MTRJ, E2000 ,MPO/MTP,SMA....
Cables	PVC/LSZH ,OM1,OM2,OM3,OM4, Plenum(OFNP) , Armored
Color	yellow,gray,sky bule ,orange,white,bla

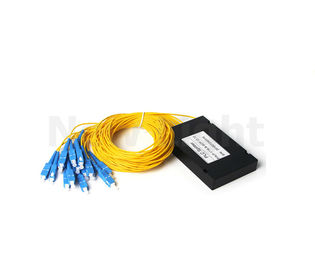

WDM Single Mode Fiber Splitter 1x2 / 4 / 6 / 8 / 16 / 32 /64 SC / PC 1

Our production department :

Test :

Quality control :

Packing :

Packaging : bags&caron box
Shipping: International Express: Fedex, DHL, UPS, TNT and EMS.If you have another
preferred carrier, please notify us in advance.
FedEx Overnight: It will take 1-3 business days (weekends and holidays excepted) for delivery.
DHL: It will take 2-4 business days (weekends and holidays excepted) for delivery. For Spain, Italy, Brazil and some other countries, items will take longer time to arrive due to customs clearance period.

Delivery :

Payment :

contact :

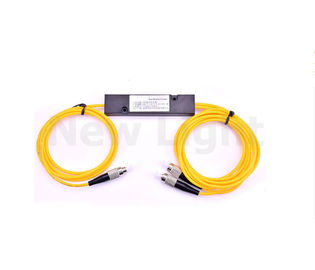

WDM Single Mode Fiber Splitter 1x2 / 4 / 6 / 8 / 16 / 32 /64 SC / PC 10
