OEM ODM OM3 12 Core PVC Fiber Optic Cable MPO To MPO Male Aqua Fan Out

Brand Name:	New Light
Model Number:	MPO MTP
MOQ:	1~10000
Price:	6~15
Packaging Details:	OPP bag + Carton box
Payment Terms:	T/T, Western Union, MoneyGram , Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

CE , ISO , RoHS

Material:

Connector Type:

MPO / MTP Male

Mode:

Multi Mode

Fiber Count:

72 Core

Cable Color:

Method:

Method C

Cable Type:

OM3-300

Fiber Cord:

12 Core

Insertion Loss:

≤ 0.5dB

Return Loss:

≥25dB

OEM/ODM:

Acceptable

Package:

1 Pcs / Bag

Supply Ability:

500 pcs per day

Highlight:

OM3 PVC Fiber Optic Cable

OEM ODM PVC Fiber Optic Cable

OM3 12 Core Fiber Cable

Product Description

OEM ODM OM3 12 Core PVC Fiber Optic Cable MPO To MPO Male Aqua Fan Out

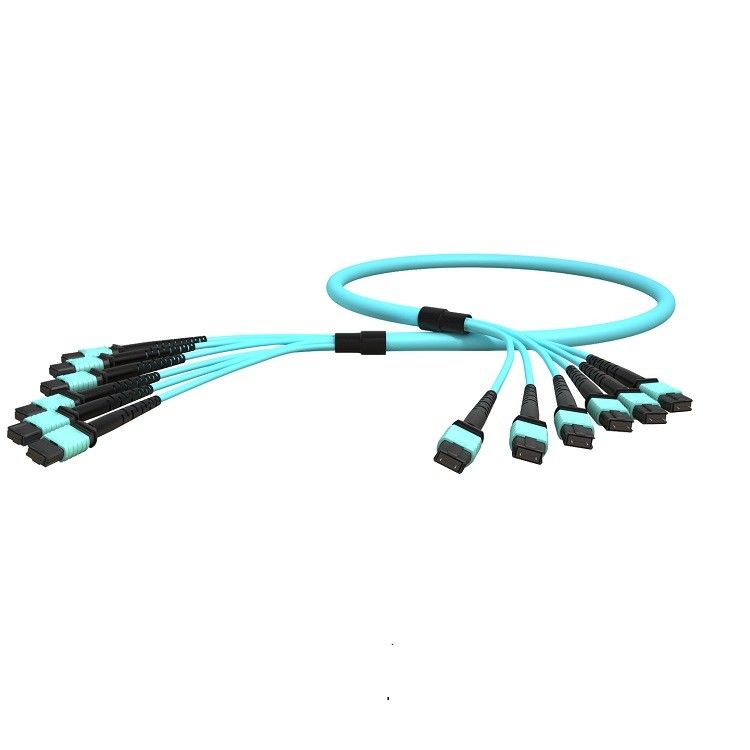

OM3 - 300 12 Core MPO to MPO male aqua fan out Fiber Optic PVC Cable

There are 6 pcs 12 core MPO conectory on each side of the patch cord .Total have 12 MPO connector in this patch cord .and the fiber count is 72 core total . this is a kinds of fan out patch cord .

The diameter of each fan out cable normal is 3.0mm .but also can be customized into 3.6 / 4.4/5.0mm , it is according to your requirements .

The fan out length can be 0.5meter or 1 meter or other length according to your requirements , before you order ,should let us know the length .

OM3 multi mode cable color normal is aqua . if you need customize it into other color , the MOQ of total quantity should be over 1000 meters , otherwise it is expensive and difficult to produced by machine .

MPO connectors are well-suited for high-density, high-traffic applications including data centers and central offices.

We can offer 4, 8, 12, 16,24 and 32-fiber MPO assemblies, with ribbon, flat and round cable structure options. We can also provide MPO assemblies with IP (waterproof) connectivity.

Applications

1. Data communication network
2. Optical system access network
3. Storage area network fiber channel
4. High density architectures

Features and benefits

1. Utilize MPO/MTP connectors
2. Rapid deployment
3. Factory terminated
4. 100% tested (test data supplied)
5. High-density cable
6. Optimized performance
7. Compliant to directive 2002/95/EC (RoHS)and REACH SvHC
8. MPO connector complies with IEC-61754-7 and EIA/TIA-604-5

Technical Parameter

products name	OM3 - 300 12 Core MPO to MPO male aqua fan out Fiber Optic PVC Cable
mode type	multi mode
cable count	12 core ( can be 4/8/12/16/24/32 core )
core type	OM3-300( OM1/OM2/OM3-150/OM3-300/OM4/OM5)
cable color	Aqua ( can be customized according to your request )
cable diameter	( can be customized diameter )
patch cord length	5 meter ( can be customized according to your request )
out jacket material	PVC ( can be PVC or LSZH )
insertion loss	≤ 0.5dB
return loss	≥25 dB
wave length	850/1300nm
core type	50/125um
connector type	male
connector color	Aqua
ferrule material	plastic
operater temperature	-40~ +85℃
cable print	standard print ( can customized )
OEM/ODM	acceptable
warranty	3 years after delivery
Delivery time	2-15 working days ( according to your quantity )

Method C

MORE connector for your reference

How to order

1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
4. Coating material : PVC / LSZH
5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core/48 core / 96 core and so on
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
7. Patch cord length : according to your requirement
8.MPO/MTP connector should let us know which method ( A type / B type /C type ), male or female , fiber count (4/8/12/16/24/32 fiber )
