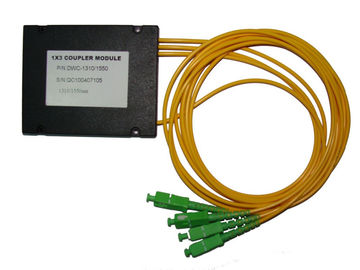

ABS Box Fiber Optic Splitter FTTH Networking 1x3 1x4 PLC Type With SC Connector

Brand Name:	New Light
Model Number:	SC APC
MOQ:	10
Price:	1~30
Packaging Details:	export packing
Payment Terms:	L/C, T/T, Western Union, MoneyGram, paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Brand Name:

New Light

Fiber Type:

Connector Type:

SC APC

Operating Wave:

1260-1650

Mode Type:

Single Mode

OEM / ODM:

Acceptable

Fiber Length:

As Your Requirement

Warranty:

3 Years

Delivery Time:

2-10 Working Days After Receive Payment

Payment:

T/T , L/C , Paypal , Westen Union , Money Gram

Products Name:

FTTH Networking ABS Box Fiber Optic Splitter 1x3 1x4 PLC Splitter WithSC Connector

Supply Ability:

1000000

Highlight:

fiber optic plc splitter

single mode fiber splitter

Product Description

FTTH Networking ABS Box Fiber Optic Splitter 1x3 1x4 PLC Splitter with SC Connector

Features

Low insertion loss and low PDL

High channel counts

Exceptional reliability and stability

Wide operating wavelength

Compact design

Applications

FTTX Systems

LAN, WAN and metro networks

Analog/Digital passive optical networks

CATV networks

Other applications in fiber optic systems

Specification

Parameters	1×2	1×4	1×8	1×16	1×32	1×64
Operating Wavelength (nm)	1260~1650
Fiber Type	G657A1 or customer specified
Insertion Loss (dB)(P/S Grade)	3.8/4.0	7.1/7.3	10.2/10.5	13.5/13.7	16.5/16.9	20.5/21.0
Loss Uniformity (dB)	0.4	0.6	0.8	1.2	1.5	2.0
Polarization Dependent Loss(dB)	0.2	0.2	0.2	0.25	0.3	0.35
Return Loss (dB) (P/S Grade)	55/50	55/50	55/50	55/50	55/50	55/50
Directivity (dB)	55	55	55	55	55	55
Wavelength Dependent Loss (dB)	0.3	0.3	0.3	0.5	0.5	0.5
Temperature Stability (-40~85 ℃)(dB)	0.4	0.4	0.4	0.5	0.5	0.5
Operating Temperature (℃)	-40~85
Storage Temperature (℃)	-40~85
Device Dimension (mm)	40×4×4	40×4×4	40×4×4	50×4×4	50×7×4	60×12×4
Module Dimension (mm)	100×80×10	100×80×10	100×80×10	120×80×18	140×115×18	140×115×18
Mini-Module Dimension (mm)	50×7×4	50×7×4	50×7×4	60×12×4	80×20×6	100×40×6

Ordering information

PLC

Port

Input Pigtall Style

Input Connector

Output Pigtll Style

Fiber Length

Output Connector

Package type

0102=1x2

0104=1x4

0108=1x8

0116=1x16

0132=1x32

0164=1x64

1128=1x128

0204=2x4

0208=2x8

0216=2x16

0232=2x32

0264=2x64

2128=2x128

0=bare fiber

1=900um

Loose tube

2=900umJacket

3=2.0mmcable

4=3.0mmcable

0=none

1=SC/PC

2=SC/APC

3=FC/PC

4=FC/APC

5=ST

6=LC

7=LC/APC

8=E2000

S=Special

0=bare fiber

1=900um

Loose tube

2=900um

Jacket

3=2.0mmcable

4=3.0mmcable

0=0.5m

1=1m

2=1.5m

3=2m

4=3m

5=4m

S=special

0=none

1=SC/PC

2=SC/APC

3=FC/PC

4=FC/APC

5=ST/PC

6=LC/PC

7=LC/APC

8=E2000

S=Special

A=4X4X40

B=4X7X50

C=4X12X60

D=4X7X60

E=6X20X80

F=100X80X10

G=120X80X18

H=140X115X18

I=19”1U Rack

S=Special

Order information

PLC Splitter Type-----Input/Output Count-----Input Connector Type-----Input Tube Type------Input Tube Length------Output Connector Type-----Output Tube Type-----Output Tube Length

Packaging : bags&carton box
Shipping: International Express: Fedex, DHL, UPS, TNT and EMS , or by sea ..If you have another

preferred carrier, please notify us in advance.

FedEx Overnight: It will take 1-3 business days (weekends and holidays excepted) for delivery.
DHL: It will take 2-4 business days (weekends and holidays excepted) for delivery. For Spain, Italy, Brazil and some other countries, items will take longer time to arrive due to customs clearance period.

Delivery and payment

1. T/T/ , PAYPAL , WESTEN UNION , MONEY GRAM , L/C .
2. 30% deposit in advance , 70% balance paid before delivery .
