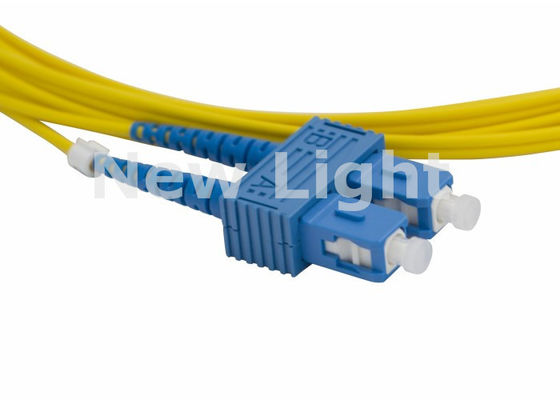

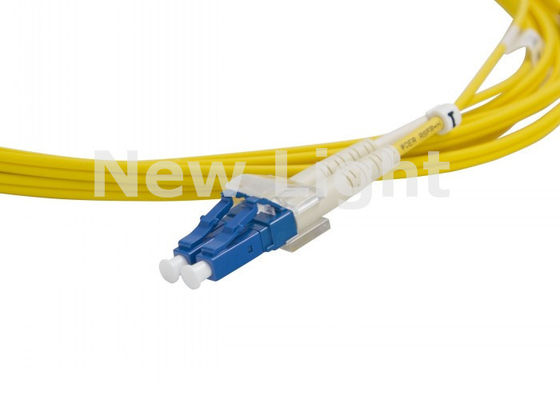

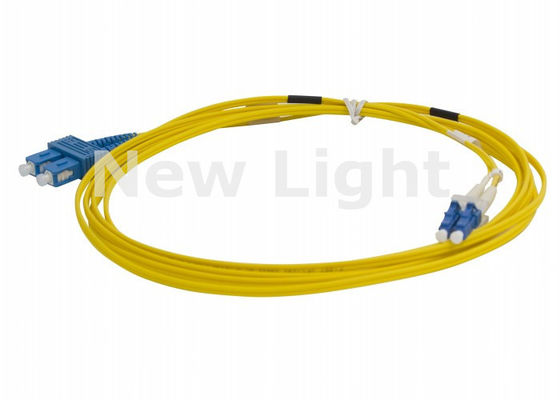

9/125µm Duplex LC-SC Optical Fiber Patch Cord with 2.0mm PVC Jacket for Stable Connections

Brand Name: NewLight
MOQ: 1~100000
Price: 0.1~100
Packaging Details: 1 pcs per pack
Payment Terms: T/T,Western Union,MoneyGram,Paypal
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO ,ROSH
Name:
LC SC Fiber Patch Cable
Diameter:
2.0mm
Model:
Single
Connector:
LC-SC
Color:
Yellow
Length:
3 Meter
Supply Ability:
1000000
Highlight:

duplex fiber patch cord

,

sc sc fiber patch cord

Product Description
Multi Model 9/125 Duplex Optical Fiber Patch Cord LC SC
LC-SC Multimodel 9/125 Duplex Optical fiber patch cord with APC polish connector and PVC Yellow cable, featuring excellent interchangeability and reliable performance.
Product Specifications
Parameter Specification Parameter Specification
Connector LC to SC Jacket OD 2.0mm
Fiber Mode 9/125µm Jacket Color Yellow
Polish APC to APC Wavelength 1310/1550nm
Fiber Type Duplex Jacket Material PVC
Insertion loss ≤0.3dB Interchangeability ≤0.2dB
Return loss ≥50dB Vibration ≤0.2dB
Operating temperature -40~75℃ Storage temperature -45~85℃
Polarity A(Tx) to B(Rx) Fiber Grade G652D
Customization Options
  • Optical fiber specification
  • End face shape of connector
  • Structural form of optical cable
  • Patch cord length
  • Connector type
  • Other request content
Product Description
Optical patch cords are essential components featuring optical connector plugs at each end of the optical cable (single plug ends are called pigtails), designed for active optical line connections. These patch cords are utilized in long-distance and local optical transmission networks, data transmission systems, private networks, and various test and control systems. Manufactured through precision equipment and multiple machining processes with fine grinding, our optical patch cords offer low insertion loss, high return loss, excellent repeatability, and are widely applicable across various optical devices and fiber optic communication systems.
Technical Parameters
Parameter Single Mode Multimode
Connector Types FC, SC, ST, LC, MU
Endface Types PC, UPC, APC PC
Insert Loss (dB) ≤0.30 ≤0.30
Exchangeability (dB) ≤0.20 ≤0.20
Repeatability (dB) ≤0.10
Return Loss (dB) ≥45 (PC), ≥50 (UPC), ≥60 (APC) ≥35
Core/Cladding Diameter 9/125 50/125 or 62.5/125
Durability >1000 cycles
Operating Temperature -25°C to +80°C
Key Features
  • Excellent versatility and interchangeability
  • Stable and reliable connections with high repeatability
  • Low insertion loss and high return loss
9/125µm Duplex LC-SC Optical Fiber Patch Cord with 2.0mm PVC Jacket for Stable Connections 0
