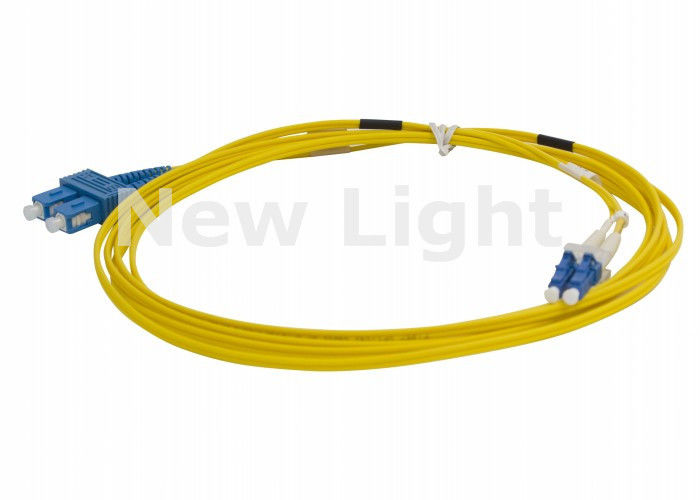

Multi Model 9 / 125 Duplex Optical Fiber Patch Cord LC SC With Good Interchangeability

Multi Model 9 / 125 Duplex Optical Fiber Patch Cord LC SC With Good Interchangeability

    • Multi Model 9 / 125 Duplex Optical Fiber Patch Cord LC SC With Good Interchangeability
    • Multi Model 9 / 125 Duplex Optical Fiber Patch Cord LC SC With Good Interchangeability
    • Multi Model 9 / 125 Duplex Optical Fiber Patch Cord LC SC With Good Interchangeability
  • Multi Model 9 / 125 Duplex Optical Fiber Patch Cord LC SC With Good Interchangeability

    Product Details:

    Place of Origin: China
    Brand Name: NewLight
    Certification: IS09001-2008.ROHS

    Payment & Shipping Terms:

    Minimum Order Quantity: 10pcs
    Price: Negoatiate
    Packaging Details: 1 pcs per pack
    Delivery Time: 3 to 5 working day
    Payment Terms: T/T, Western Union, MoneyGram,Paypal
    Supply Ability: 10000pcs/month
    Contact Now
    Detailed Product Description
    Name: LC SC Fiber Patch Cable Diameter: 2.0mm
    Model: Single Connector: LC-SC
    Color: Yellow Length: 3 Meter

    LC-SC Multimodel 9/125 Duplex Optical fiber patch cord APC polish connector PVC Yellow cable





    Specification:





    Connector LC to SC Jacket OD 2.0mm
    Fiber Mode 9/125µm Jacket Color Yellow
    Polish APC to APC Wavelength 1310/1550nm
    Fiber Type Duplex Jacket Material PVC
    Insertion loss ≤0.3dB Interchangeability ≤0.2dB
    Return loss ≥50dB Vibration ≤0.2dB
    Operating temperature -40~75℃ Storage temperature -45~85℃
    Polarity A(Tx) to B(Rx) Fiber Grade

    G652D



    Options (Users need to determine the contents)



    * Optical fiber specification

    * End face shape of connect

    * Structural form of optical cable

    * Patch cord length

    * Connector type

    * Other request content



    Description:



    Optical patch cord is a kind of optical components including the optical connector plug at each ends of optical cable (one plug at one end called pigtail), is use to achieve optical line active connection.Optical fiber patch cord is used for long distance and local optical transmission network,data transmission and private network,and a variety of test and control system. Optical patch cord is through precision equipment through multiple machining processes fine grinding and has the merit of low insertion loss,high return loss,good repeatability,and can be widely used in various optical devices and optical fiber communication system.



    Parameters:



    Conector type FC,SC,ST,LC,MU
    Single Mode Multimode
    Endface PC UPC APC PC
    Insert loss(dB) ≤0.30 ≤0.30
    Exchangeability(dB) ≤0.20 ≤0.20
    Repeatability(dB) ≤0.10
    Return loss(dB) ≥45 ≥50 ≥60 ≥35
    Core/Caldding diameter 9/125 50/125 or 625.5/125
    Durability >1000
    Operating temperature -25~+80 degree





    Features



    * Good versatility and interchangeability

    * Stable and reliable connection and high repeatability

    * Low insertion loss,high return loss





    Multi Model 9 / 125 Duplex Optical Fiber Patch Cord LC SC With Good Interchangeability
