CATV Networks Fixed Optical Attenuator , Bulkhead Adapter Type 5db Attenuator

CATV Networks Fixed Optical Attenuator , Bulkhead Adapter Type 5db Attenuator

    • CATV Networks Fixed Optical Attenuator , Bulkhead Adapter Type 5db Attenuator
    • CATV Networks Fixed Optical Attenuator , Bulkhead Adapter Type 5db Attenuator
    • CATV Networks Fixed Optical Attenuator , Bulkhead Adapter Type 5db Attenuator
  • CATV Networks Fixed Optical Attenuator , Bulkhead Adapter Type 5db Attenuator

    Product Details:

    Place of Origin: China
    Brand Name: New Light
    Certification: IS09001-2008.ROHS

    Payment & Shipping Terms:

    Minimum Order Quantity: 10pcs
    Price: Negotiate
    Packaging Details: 10 piece per pack
    Delivery Time: within 7 days
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 10000 pcs per week
    Contact Now
    Detailed Product Description
    Color: Green, Red Material: Plastic
    Name: Fixed Fiber Optic Attenuator / FC Fiber Optic Attenuator Attenuation Range: 5dB
    OEM: Available MOQ: 10 PCS

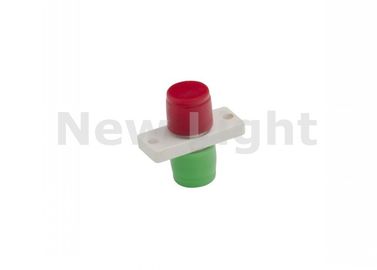

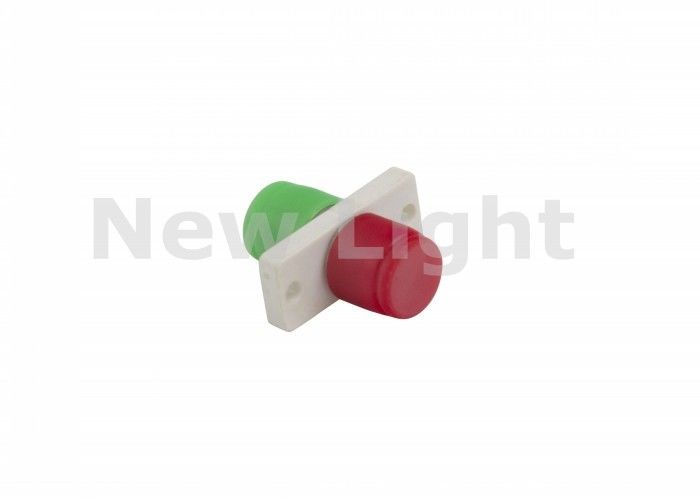

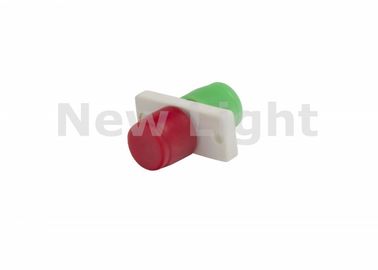

    FC Female To Female Fixed Fiber Optic Attenuator Bulkhead Adapter Type 5db Attenuator



    Quick Detail:



    1. FC adapter type fiber attenuator

    2. Female to female

    3. Attenuation range: 1 to 30dB

    4. Square type, big D, Small D available



    Description:



    Fixed bulkhead FC female to female fiber optic attenuator has a similar structure of a standard fiber adapter, which is simple, low-cost and compact, and recommended to use where return loss is not a concern nor is absolute attenuation value.

    Fixed adapter type optical attenuators feature high power endurance and low back reflection. They feature all fiber construction easy to install, available for the panel. Fixed adapter type optical attenuators are widely used in ODF, fiber transmission equipment and instrument etc.

    Our Fixed adapter type optical attenuators are available in ST/UPC, FC/UPC or SC/UPC format, with fixed attenuation values of 1~20dB. Multimode or Singlemode can be supplied for operation at 850nm, 1300nm, or 1550nm.



    Applications:



    1. Telecommunication network

    2. CATV networks

    3. FTTx project

    4. Fiber test equipment

    5. Local area networks



    Specifications:

    Attenuation Tolerence Attenuation≤5dB ±0.5dB
    Attenuation>5dB ±10% of nominal attenuation value
    Operating Walvelength Singlemode: 1310/1550nm Multimode: 850/1300nm
    Reflection Loss UPC≤-50dB
    Durability ≤0.2dB
    Operation Temperature -40℃~+80℃
    Measured with reference quality launch ends



    Ordering Guide:

    Product Description Attenuation Value Item Number
    SC/UPC Adaptor Type Attenuator 1~30dB SCU-ATA-xxDB
    FC/UPC Adaptor Type Attenuator FCU-ATA-xxDB
    ST/UPC Adaptor Type Attenuator

    STU-ATA-xxDB







    CATV Networks Fixed Optical Attenuator , Bulkhead Adapter Type 5db Attenuator
